Argon arc Orbital Automatic welding Machine for stainless steel pipe

Supplier: Zhengzhou Kehui Technology Co., Ltd.
Region: Henan, China
Contact: Ms Michelle Chen
Price: $15000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Brand Name:	Kehui;
Weight (KG):	120 KG;	Marketing Type:	New Product 2020;
Tube Diameter:	16~230mm;	Payment Terms:	L/C,T/T,Western Union;
Power(W):	7.9KW;	Supply Ability:	100.0 Piece/Pieces per Month;
Key Selling Points:	Automatic;	Welding manner:	Automation tig welding;
Quality assurance:	High efficiency;	Dimensions:	1000X1000X1300mm;
International standards:	Throgh ISO9001:2000;	Warranty:	1 year;
Usage:	tube to pipe welding machine;	Type:	4 type;
Voltage:	220/380V;	Range of voltage:	380V±10%;
Showroom Location:	None;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
operate:	LCD touch screen;	Place of Origin:	Henan China;
storage space:	100 groups of welding standard;	Core Components:	Bearing,Gear,Pump;
Rated Input Power:	11.5KVA;	Packaging Detail:	Inner cartons wrapped with plastic wrap, the outer layer wooden box.;
Machinery Test Report:	Provided;	Power (kW):	7.9KW;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining;	Condition:	New;
inverter welder:	IGBT inverter;	Warranty of core components:	1 YEAR;
Certification:	CE;	Weight:	300KG;
Port:	Qingdao;	Video outgoing-inspection:	Provided;

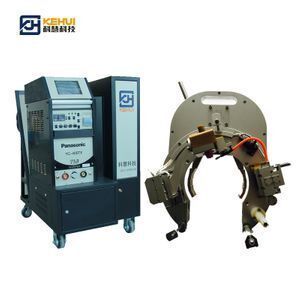

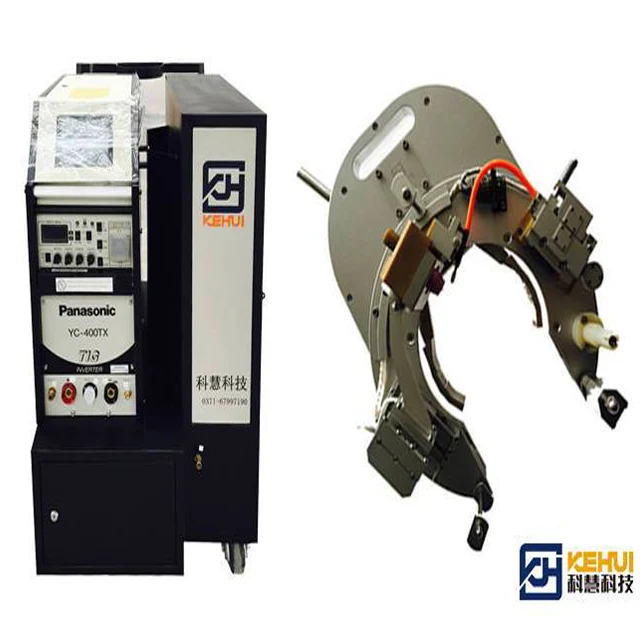

KHGK Orbit tube to tube argon arc welding machine

Product application

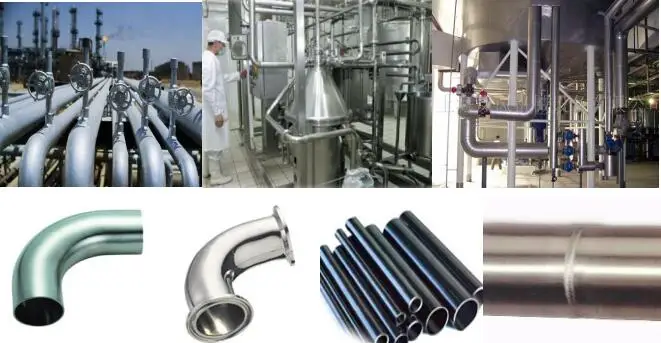

Petrochemical, boiler, refrigeration, medicine, aviation, pressure vessel, ship, food machinery, atomic energy etc

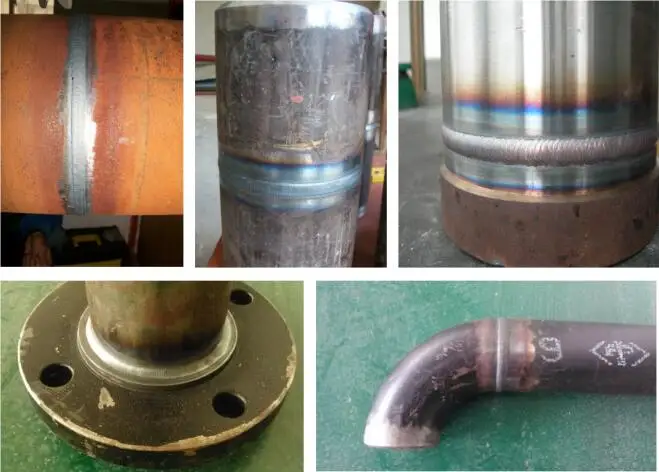

Apply to tube diameter from16mm-300mm, for tube-pipe, tube-elbow, tube-flanges, tube-Plug, etc. welding materials contain carbon steel, alloy steel, stainless steel, etc. used filling wire or not filling wire butt welding.

Function and characteristics

Welding head have five specifications, according to dimensional condition and product range can choose one or several welding head
Suitable for various kinds of pipe-pipe joint and various groove form ;
Wire unit according to working environment different, can adopt built-in wire or external wire;
Welding head main components are used aviation materials, light weight, structural stability, and high temperature no deformation ;
Drive and wire feed adopts stepping motor, make nose operate reliable.
Nose equipped with balancer, operation convenience, reduction of labor intensity ;
Adopt PLC control system and LCD touch human-machine interface, can be stored up to 100 groups of welding standard, each group of welding scope can divide 1~2 section, input is simple, and not need professional basis and special language,
Used Panasonic IGBT inverter control dc pulse power, guarantee high welding efficiency and strong arc stability, Weld bead molding beautiful,
Welding torch using forced water cooling, can keep long-term work,
Nose can choose the arc length automatic adjustment and yawing device. According to different requirements yawing can be used mechanical swing and magnetic pendulum,
11. Mandatory water cooling system, equipped with 16 liters stainless steel tank, not affected by field water hydraulic conditions limits, cooling fully, reliable convenient,
Cars type integration design, mobile freedom, equipped with small toolbox and argon gas bottle seat.

Main technical Specification

Rated input voltage	380v
Rated welding voltage	TIG welding, 22.6V
Rated power input	9.0KW
Rated voltage no-load	70V
Frequency	50/60HZ
Welding current adjusting range	4~400A
Voltage allow fluctuating range	380V±10%
Rated duty cycle	400A 60%
Rated duty cycle	250A 100%
Rated input capacity	11.5KVA
Built-in memory space	100 groups of welding code
