china rotary drum sieve/Trommel screen,trommel sieve/ rotary Drum screen

Supplier: Xinxiang Dongzhen Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Robert LEO
Price: $1500.00 / 1 - 4 sets
$1400.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	as per order;	Screening efficiency:	over 95%;
Brand Name:	DZ;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Motor:	common type;	Video outgoing-inspection:	Provided;
Color:	According to different needs;	Package Preview:	;
Drum length:	1500mm-5500mm;	screen size:	below 3-10mm;
Warranty:	1 Year;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T;
Port:	Qingdao, Tianjin, or other ports per your request;	Body material:	Q235;
Local Service Location:	Philippines,Brazil;	Supply Ability:	50 Set/Sets per Month;
Packaging Detail:	plywood case or others per customer's request;	Type:	Circular;
Delivery time:	15 working days;	Showroom Location:	Philippines,Brazil;
Voltage:	as per order;	Weight:	KG;
Condition:	New;	Warranty of core components:	1 Year;
Marketing Type:	New Product 2020;	Core Components:	Motor;
Application:	ore , sand .coal,Ore;	diameter:	1000-2000mm;
Screening accuracy:	Four levels of screening;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;
Machinery Test Report:	Not Available;	Place of Origin:	Henan China;
Certification:	CE, BV, ISO;

Product Description

Introduction

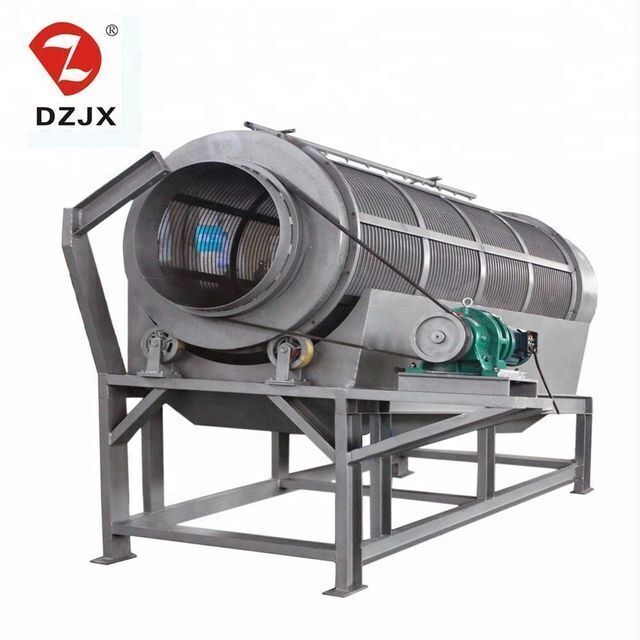

Trommel screen has wide range of sizes and capacities,Mining Machinery Rrotating Vibrating Drum Sieve is a mechanical screening machine used to separate materials. Trommel screen consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover. When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Advantages and Features
1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site
2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
3. Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
5. Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6. Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.

Products Show

Product details

Application range

Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc

Technical Parameter

Model	Power(kw)	Drum diameter(mm)	Drum length(mm)	Screen size(mm)	Dimension(mm)
GT1015	3	1000	1500	Customization	300014002145
GT1020	3	1000	2000			346014002145
GT1225	4	1200	2500			414616002680
GT1530	5.5	1500	3000			446019002820
GT1545	7	1500	4500			596019003080
GT1848	11	1800	4800			650023004000
GT2055	15	2000	5500			750025004000
