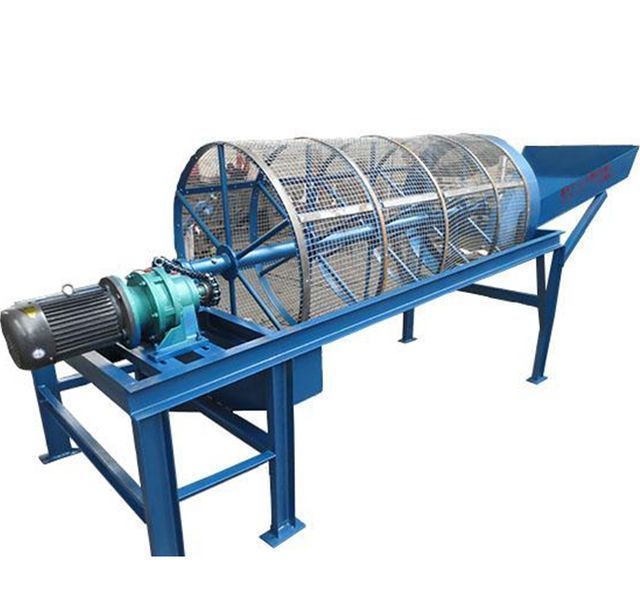

Rotary vibrating screen trommel for sizing mineral particles

Product details
Screen material:Manganese steel wire braidLocal service location:not any
brand:GuoteDimensions (L*W*H):different models
Supply capacity:100 sets per monthweight:750kg
Install:Engineer's GuideGrid size:2-500 mesh
Applicable industries:Energy and Miningtype:round
Mechanical test report:ifMarketing Type:normal product
Health status:newCore components:motor
Core Components Warranty:1 yearusage:separation screening
Video external inspection:ifVoltage:380V
payment terms:L/C,Western Union,D/P,T/T,MoneyGramPackaging Details:Standard export container, 20GP, 40GP, 40HQ, FR container, bulk, wooden box spare parts or according to customer requirements.
place of origin; place of origin:Shandong ChinaWarranty:December
diameter:Depends on different modelsport:Qingdao
color:customer requestCertification:ISO:9008
Showroom location:not anyapplication:ore

Rotary vibrating screen trommel for sizing mineral particles

Product Description

product description:



Gyratory screen, also known as trommel screen, consists of four parts: trommel, sifter hopper, support base and driving device.

When the material enters the drum, under the action of a large centrifugal force, the material will make a spiral motion with the surface of the drum. At the same time, oversized materials are discharged from the discharge port; qualified materials (different sizes) are collected in smaller size hoppers. It is then conveyed to the next system by belt conveyor or other.

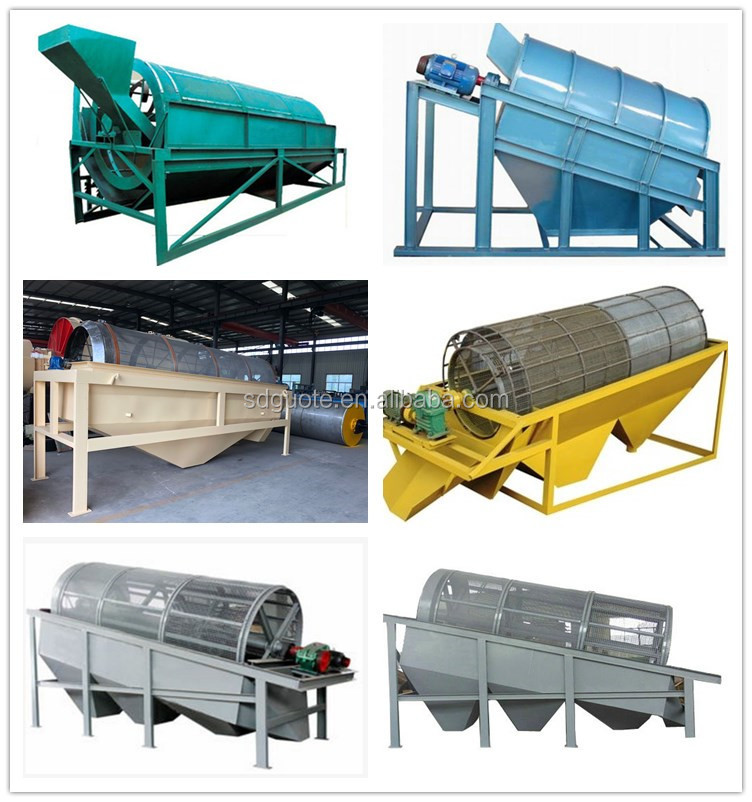

Our company has four types of trommel screening: 1. Closed type; 2. Open type; 3. Heavy-duty type; 4. Light type



advantage:

Rotary screen designed for high performance screening, sorting and grading applications. With over 50 years of experience, our trommel screens feature:

1. Good performance, high productivity, low input cost and long service life.

2. The capacity of each trommel screen is in the range of 7.5-1500 m3/h of pulp, or 6-600 t/h of solids.

3. The screen is specially designed, which is more durable than ordinary screens.

4. Heavy duty jacking up and adjustable stand for quick setup and assembly time.

5. A network of high pressure booms around the hopper, running the length of the trommel.

6. Heavy duty roller support (steel or rubber) wheels.

7. Portable mobile or fixed configuration.

application:

1) Quarry: gravel, clay, mountain powder, sand, etc.

2) Coal industry: lump coal, coal dust, coal washing, etc.

3) Cold Mine: Gold Screening and Washing

4) Chemical industry: sieved calcium oxide, compost

5) Metallurgy, construction, mineral processing, etc.

6) Recycling industry: solid waste, waste tires, plastics, etc.



Working principle:
