Usingwin J1900 X86 windows IP65 panel 10.1'' industrial rugged motherboard tablet with gpio wifi Ethernet Products from Chengdu Usingwin Electronics Technology Co., Ltd.

Product Details

Place of Origin:	Sichuan China;	Network:	Wifi/ Ethernet;
Touch screen:	Capacitive Touch Screen;	Type:	Industrial Computer Accessories;
Power Supply:	100-240V AC DC ; 12V DC-Out;	Resolution:	1280*800;
RAM+SSD:	4+64GB;	CPU:	J1900 Quad Core;
Single package size:	32X28X8 cm;	Brand Name:	Usingwin;
Brightness:	250cd/m2;	Products Status:	Used;
Selling Units:	Single item;	Product name:	J1900 Industrial Windows Tablet PC;
Operating System:	Win7/8/10/Linux/Ubuntu;	Single gross weight:	4.0 KG;
Interface:	VGA/DP/RJ45/MIC/SPK/DC/4*USB;	Packaging Detail:	10.1inch J1900 industrial tablet pc package way: 1. Strong Foam and carton packing 2. Net Weight: 4kg 3. Packing size: 550110395mm;
Certification:	ce,RoHS;

Product Description

Usingwin J1900 X86 windows IP65 panel 10.1'' industrial rugged motherboard tablet with gpio wifi Ethernet

The 10.1 inch windows industrial tablet features are as the following:

1. Operating system: Support X86/WIN7/8/10/LINUX and so on.

2. CPU: Intel celeron quad-core J1900 CPU 2.0GHZ.

Intel H81 Motherboard with Intel Core I3/I4/I5/I9 CPU.

3. Rich interface design: Support RS232, RS485, USB, Ethernet ans etc.

4. Industrial panel screen: Cover glass thickness(1-6mm), waterproof, quality LED backlight panel.

5. The Memory DDR3+ storage: the standard is 4GB+64GB,

DDR3 1G/2G/6G/8G & storage 32G/128G/256G/512GSSD,500G/1T HHD.....can be customized.

Product Name	Industrial Tablet	Size	10.1 inch
Material	Aluminium/Milling	CPU	Intel Celeron J1900
Operate System	Support X86/WIN7/8/10/Linux	RAM/SSD	4GB+64GB standard
GPIO	Support 4 chanel GPIO	Resolution	1280*800
Contrast	800:1	Brightness	250 cd/m2
Visual Angle	178	Touch Technology	Capacitive 10 point multitouch
Operating Temp	-10~+65 C	Humidity Range	10% - 90% RH
Backlight Time	LED / 40000 hours	Power Supply	100-240V AC DC; 12V/4A DC-Out
Working Power	12V	Power Consumption	11W
Reaction Time	10/15 ms Tr/Tf	Certification	3C, CE, ROHS, ISO
WIFI/Ethernet	Support	RS232/RS485	Support

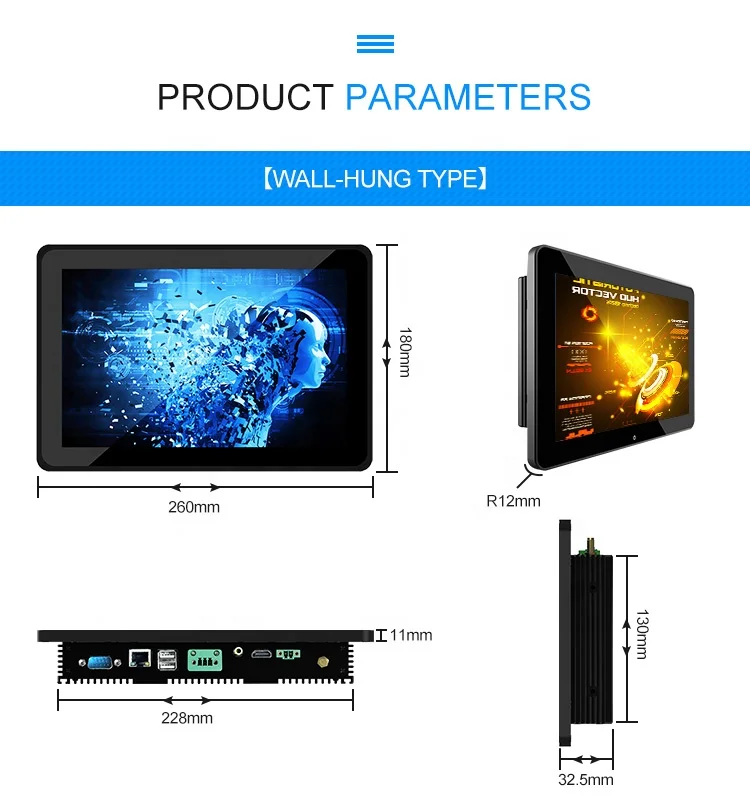

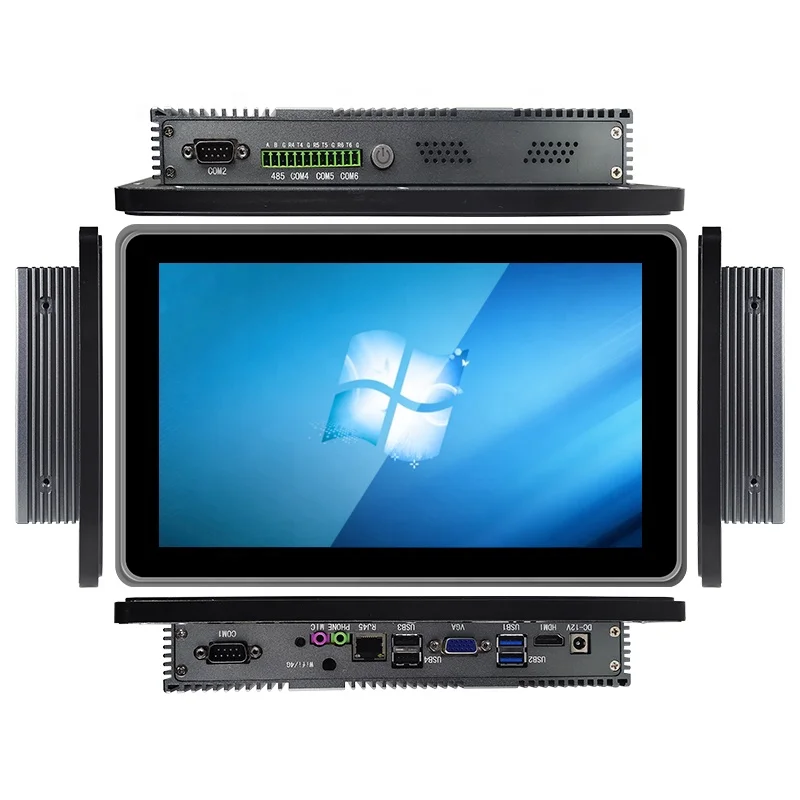

Detailed Images

Application

Packing & Delivery

Our Company

Exhibitions

Certifications

FAQ

Q1.What's your advantage? Why we choose you?

A:10 Years experience of test Industrial Tablet production and R&D. We have the most professional techniques and team. More advantage in price. Great production capacity Sustainable Supply.

Q2. Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q3. Could I have prices of your products?
A;Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours

Q4. Can we print our logo/website/company name on products?
A:Yes, please advise the size and Pantone Code of the logo.

Q5. Do you inspect the finished products?
A:Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Thank you for viewing our products, your feedback will be highly appreciated.
