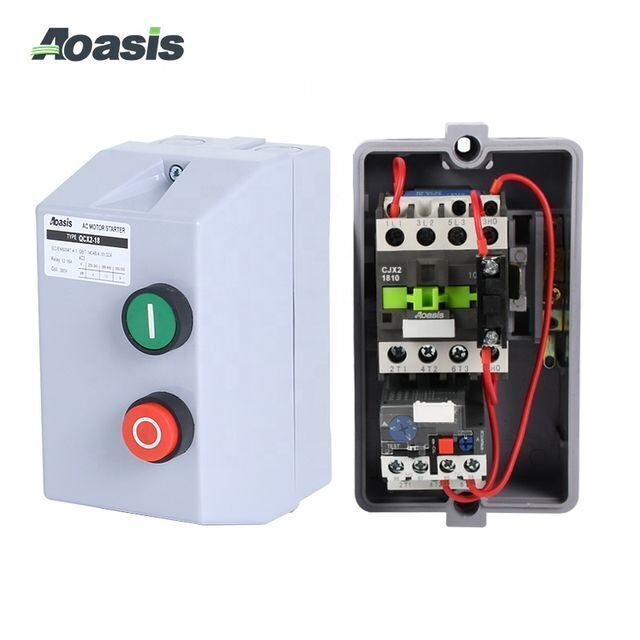

QCX2-09 9A Current Range 7A-10A 2.2KW 4KW 220v magnetic ac motor starter

  • Supplier: Zhejiang Zhongao Electric Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr Kane Wang
  • Price: $10.90 / 1 - 49 pieces
    $10.38 / 50 - 499 pieces
    $9.89 / >=500 pieces
  • Min. Order: 1 piece
Product details
Packaging Detail:Export Carton;Single gross weight:3.0 KG;
Selling Units:Single item;Frequency:50Hz/60Hz;
Push button:Start (Green) Stop (Red);Model of Contactor:CJX2-09;
Brand Name:AOASIS;Place of Origin:China;
Current Range:7A-10A;Box Material:Plastic;
Model of Thermal Relay:JR28-33;AC200-240V Rated Power:2.2kW/3HP;
Model Number:qcx2-09 7-10A;Made in :China;
Cover Material:Plastic;Coil Voltage:AC230V240V380V400V415V440V OptionalV;
Single package size:15X8.8X14 cm;Package Preview:;
Product Brand:
Product Name:
Magnetic Starter
Product Type:
Protection Grade:
Altitude Range:
Not exceed 2000m
Control various motors and distribution circuits
Mounting Condition:
The inclination between the mounting plane and the vertical plane shall not exceed 5°

Application Range

QCX2-□□series magnetic starter mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 380V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.
Type and Signification
Application Condition
Altitude: not exceed 2000m Temperature: -5℃~+40℃, average not exceed +35℃ in 24 hours. Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature. Pollution Grade: Grade III. Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°. The product shall be installed and operated at a place without obvious shake, impact and vibration.
Dimensional Drawing
Technical Parameters
Front View

Side View

Vertical View

Back View

Vertical View

Internal Structure Diagram
