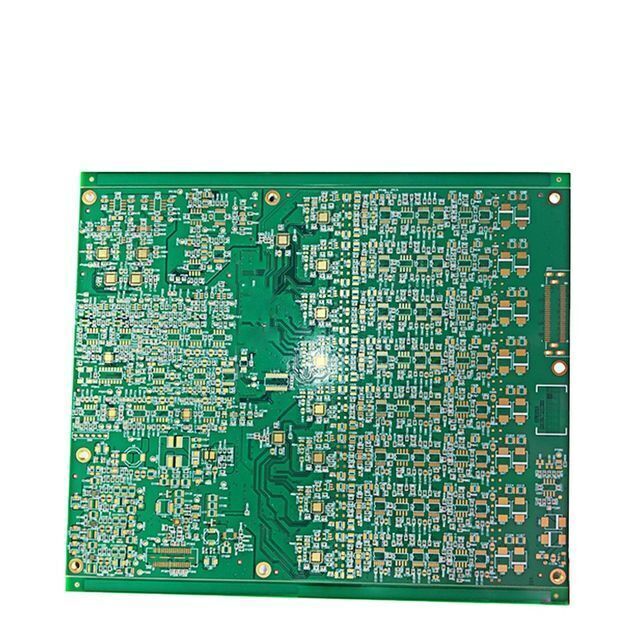

Double sided 2 layer PCB circuit board contract manufacturing service
- 1.98 1 - 999 pieces
- 0.50 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Product name: | Double sided 2 layer PCB circuit board contract manufacturing service; | Service: | One-stop Service; |
| Board Size: | 145*85; | Base Material: | FR4; |
| Min. Line Spacing: | 4mil; | Single package size: | 20X16X15 cm; |
| Solder mask color: | Green/White/Red/Blue/Black/Yellow; | Selling Units: | Single item; |
| Shipping: | DHL/Fedex; | Surface Finishing: | hasl, hasl lead free; |
| Finished Surface: | Immersion gold/hasl/hasl lead free; | Min. Hole Size: | 0.2mm; |
| Testing Service: | X-Ray/Flying Probe; | Single gross weight: | 0.1 KG; |
| Model Number: | PCB-0074; | Application: | Consumer Electronics; |
| Copper Thickness: | 1oz; | Number of Layers: | 1- 40 Layers; |
| Brand Name: | POE; | Package Preview: | ; |
| Place of Origin: | Guangdong China; | Min. Line Width: | 4mil; |
| Certificate: | ISO/RoHS; | Material: | FR4 tg130; |
| Packaging Detail: | PCB: Vacuum Packing with Carton Box PCBA: ESD Packing with Carton Box Double sided 2 layer PCB circuit board contract manufacturing service; | Board Thickness: | 1.6mm; |
| Type: | Consumer; |
Company Capability | ||
Layers | 40 Layers | |
Copper Thickness | 0.5-6 OZ | |
Material | FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06,Rogers, Taconic,Argon, Nalco,Isola and so on | |
Solder Mask | green, yellow,white, blue,black,red | |
Finished Surface | conventional hasl, lead free hasl, immersion gold, immersion tin,immersion silver, hard gold, OSP... | |
Silkscreen color | white,black | |
Products Type | HF(High-Frequency)&(Radio Frenquency)board,impendance controlled board, HDI board,BGA&Fine pitch board | |
Minimum line width/gap | 3.5/4mil(laser drill) | |
Minimum hole size | 0.15mm(mechanical drill)/4mil(laser drill) | |
Minimum Annlar Ring | 4mil | |
Max Copper thickness | 6OZ | |
Min Solder Mask Bridge | 0.08mm | |
Plugging Vias capability | 0.2-0.8mm | |
