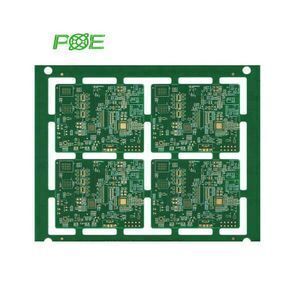

Professional PCB custom made service, pcb circuit boards manufacturer

Click here to contact
Product details
Single package size:16X15X1 cm;Board Size:IPC-II Standard;
Number of Layers:1- 22 Layers,1-22 layer;Packaging Detail:PCB: Vacuum Packing with Carton Box PCBA: ESD Packing with Carton Box Professional PCB custom made service, pcb circuit boards manufacturer;
Copper Thickness:0.5-6oz;Min. Line Width:3.5/4mil;
Min. Hole Size:0.15mm/4mil;Solder mask color:Green/White/Red/Blue/Black/Yellow;
Finished Surface:Immersion gold/hasl/hasl lead free;Model Number:PCB-0235;
Base Material:Fr4,Aluminum;Service:One-stop Service;
Material:FR4 /Aluminum;Testing Service:X-Ray/Flying Probe;
Package Preview:;Min. Line Spacing:3.5/4mil;
Shipping:DHL/Fedex;Place of Origin:China;
Board Thickness:0.4-7mm;MOQ:1 Piece;
Selling Units:Single item;Application:Consumer Electronics;
Brand Name:POE;Single gross weight:2.3 KG;
Product name:Professional PCB custom made service, pcb circuit boards manufacturer;Surface Finishing:Immersion gold/hasl/hasl lead free;

Professional PCB custom made service, pcb circuit boards manufacturer

Related Products



Related Products



+



2 layer PCB

 Multilayer PCB



Aluminum PCB



FPC

Rigid flex PCB



PCBA

POE Main Products

+

1. Single sided PCB

2. Double sided PCB

3. 2 layer PCB

4. Multilayer PCB

5. PCB manufacture

6. Aluminum PCB

7. ROHS 94v0 PCB

8. PCB Assembly

9. LED PCB 94V0

10.LED PCBA

11.Flexible PCB

12.Rigid Flex PCB
Capability



+
Item Capability
Layers 1-28
Thicker Copper 1-6OZ
Products Type HF(High-Frequency)&(Radio Frequency) board, Impedance controlled board , HDI board ,BGA& Fine Pitch board
Solder Mask Nanya&Taiyo ;LPI & Matt Red, green, yellow,white, blue,black.
Base material FR4(Shengyi China,ITEQ, KB A+,HZ), HI-TG, FR06, Rogers,Taconic,Argon,Nalco,Isola and so on
Finished Surface Conventional HASL,Lead-free HASL,Falsh Gold, ENIG (Immersion Gold)OSP(Entek), Immersion Tin,ImmersionSilver,Hard Gold
Selective Surface
Treatment		 ENIG(immersion Gold)+OSP, ENIG(immersion Gold)+Gold Finger,Flash Gold +Gold Finger, immersion Silver+ Gold Finger, Immersion Tin+Gold Finger
Technical Specification Minimum line width/gap:3.5/4mil(laser drill)
Minimum hole size:0.15mm(mechanical drill)/4mil(laser drill)
Minimum Annular Ring: 4mil
Max Copper thickness: 6OZ
Max Production size:900×1200mm
Board Thickness:D/S: 0.2-7.0mm, Multilayers:0.40-7.0mm,
Min Solder Mask Bridge:0.08mm
Aspect ratio: 15:1
Plugging Visa capability: 0.2-0.8mm
Tolerance Plated holes Tolerance:0.08mm(min±0.05)
Non-plated hole tolerance:0.05min(min+0/-0.05mm or +0.05/-0mm)
Outline Tolerance:0.15min(min±0.10mm)
Functional test :
Insulating resistance : 50 ohms (mormality)
Peel off strength: 1.4N/mm
Thermal Stress test :2650c,20 seconds
Solder mask hardness:6H
E-Test voltage :500V+15/-0V 30S
Warp and Twist: 0.7% (semiconductor test board≤0.3% )
Application

We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, aerospace and Bluetooth etc.

Company Information

 POE established on April 25, 1996 with 400 employees and 25000sq.m Of production and office area. We can offer one-stop service from PCB manufacturing to PCB assembling, testing and housing. with in-time delivery after more than 23 years of successful experience on the global EMS market. Our PCB production capacity can reach 40000 sq.m. per month and EMS assembling capacity at 150,000,000 components per month.

FAQ

Q1: What is needed for PCB PCBA quotation?

PCB(printed circuit board): Quantity, Gerber file and Technic requirements(material,surface finish treatment,

copper thickness,board thickness ,...)

PCBA(printed circuit board assembly): PCB information, BOM, (Testing documents...)



Q2: What file formats do you accept for PCB PCBA production?

Gerber file: CAM350 RS274X

PCB file: Protel 99SE,  P-CAD 2001 PCB

BOM: Excel (PDF,word,txt)



Q3: Are my files safe?

Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.

All documents from customers are never shared with any third parties.



Q4: MOQ?

There is no MOQ in POE(pcba shenzhen).We are able to handle Small as well as large volume production with flexibility.



Q5: Shipping cost?

The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to

quote you the shipping cost.
