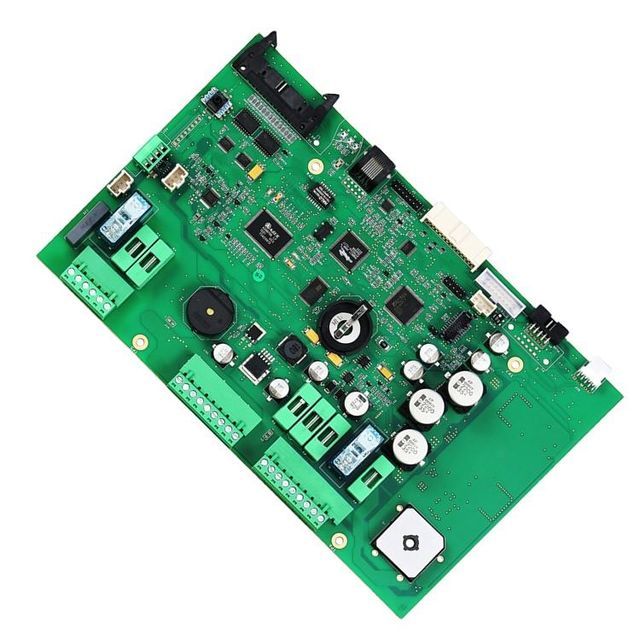

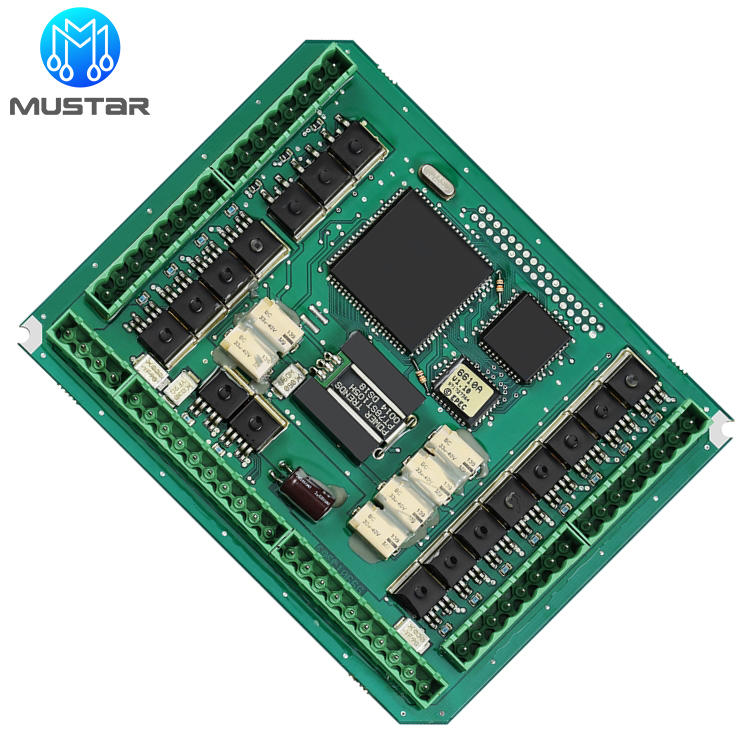

Multilayer PCB Assembly Manufacturer ShenZhen Electronics SMT PCBA Factory

Supplier: Mu Star (Shenzhen) Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Mustar PCBA
Price: $5.00 / 1 - 499 pieces
$3.50 / 500 - 1999 pieces
$1.50 / 2000 - 4999 pieces
$0.75 / >=5000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Substrate:	FR-4, customized	Certificate:	RoHS/ISO9001/TS16949/ISO14001/ISO13485
product name:	PCB Assembly	minute. Hole size:	0.075 mm
Board size:	custom	Supply capacity:	1,000,000 pieces per week
Origin:	Guangdong, China	port:	Shenzhen/Hong Kong
Material:	FR4 CEM1 CEM3 High TG	transportation:	EMS, DHL, UPS, Fedex, TNT
payment terms:	Western Union, T/T, Alipay	Copper thickness:	1 oz, 1 oz
brand:	Musta	Surface treatment:	HASL, customized
model:	PCB and PCBA > Multilayer PCB	Plate thickness:	1.6mm, customized
type:	PCBAs	Packaging Details:	ESD package with carton.
minute. line width:	custom	Solder mask color:	white
Layers:	custom	Package preview:
Test service:	ICT, FCT, X-ray, AOI	minute. Line spacing:	custom

Product Description

Specification

1	Material	FR-4, CEM-1, CEM-3, high TG, FR4 halogen free, FR-1, FR-2, aluminum
2	plate thickness	0.4mm-4mm
3	Maximum finished board size	500mm*500mm
4	Surface Finish/Treatment	HASL/Lead-free HASL, chemical tin, chemical gold, immersion gold, immersion silver/gold, Osp, gold plating
5	copper thickness	1/2 oz 1 oz 2 oz 3 oz
6	Solder mask color	Green/Black/White/Red/Blue/Yellow
7	Assembly service	Provide OEM service for all kinds of printed circuit board assembly
8	Profile stamping	Milling, V-CUT, Mitering
9	Certificate	ISO9001, ISO14001, ISO 13485, ROHS, CQC
10	outer packaging	Standard carton packaging
11	inner packaging	Vacuum packing, plastic bag
12	Minimum line spacing	0.10 mm (4 mil)
13	Minimum Line Width	0.10 mm (4 mil)
14	Minimum drilling size	0.25 mm

Applications
