Wind source dual system swimming pool heat pump constant temperature controller CC395 CCYCKB001
- 45.00 5 - 29 pieces
- 35.00 30 - 199 pieces
- 32.00 200 - 499 pieces
- 29.00 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message

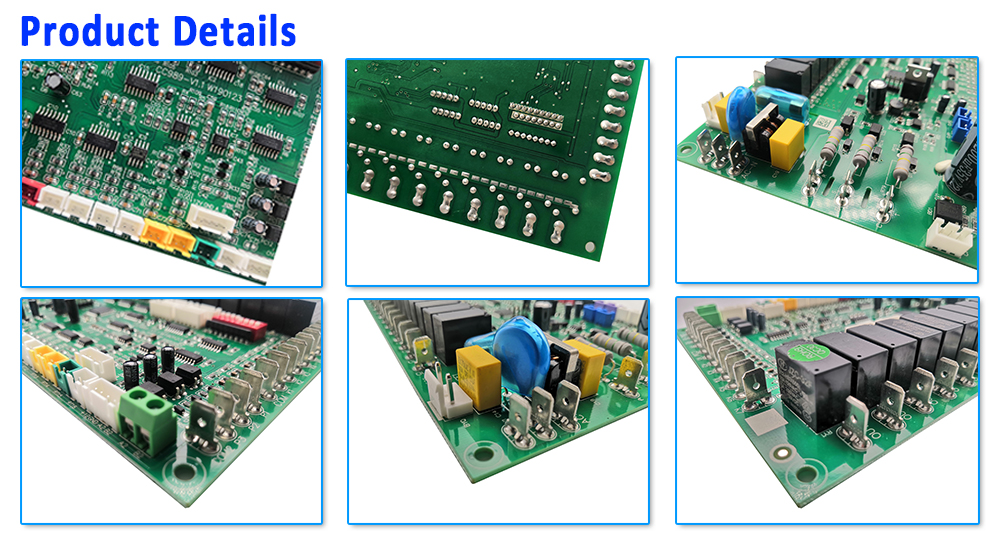

Product Details

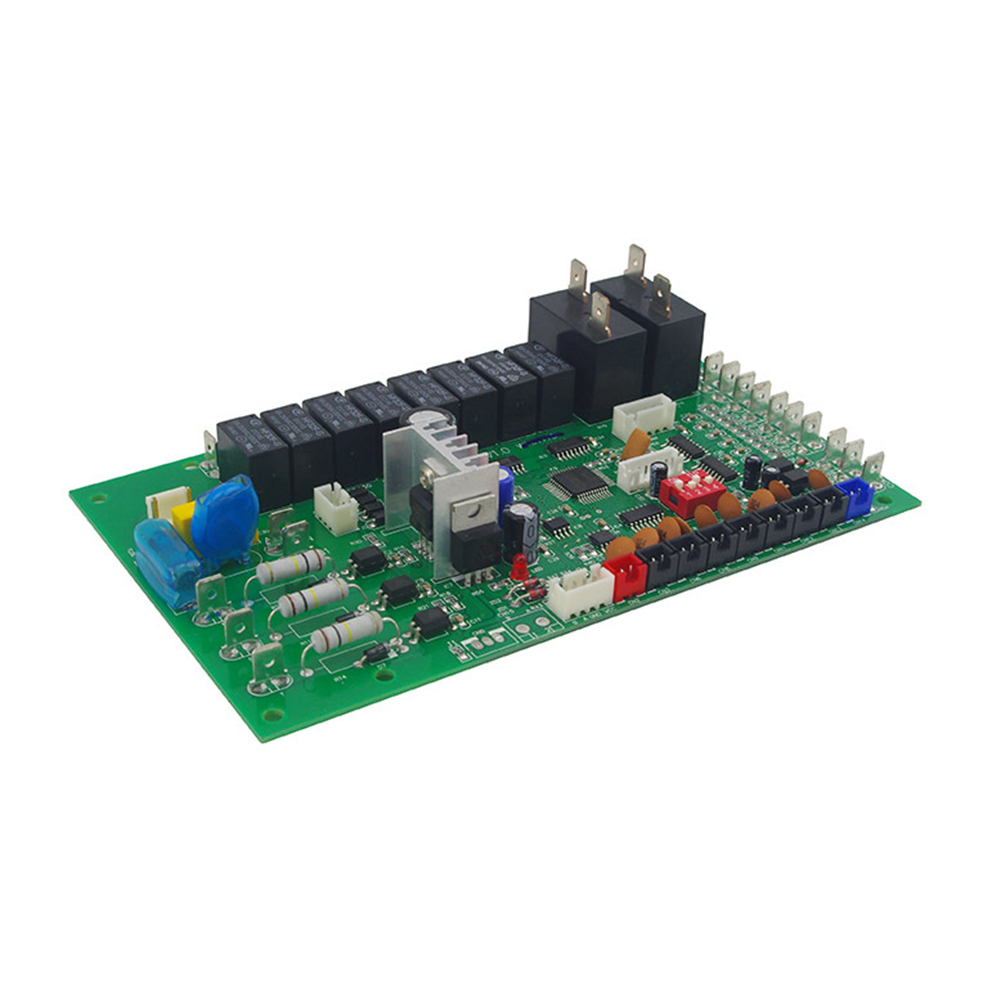

| Mode options: | Refrigeration, heating and automotive. | Motherboard assembly: | 120*153*30mm |
| Substrate: | FR-4 | port: | Guangzhou |
| Serve: | 24 hours technical service | model: | CCYCKB001 |
| Copper thickness: | 1 oz | PCBA service: | Support OEM/ODM |
| Board Dimensions: | 120*153mm | Test service: | 100% AOI test |
| Minute line width: | Greater than 0.3mm | Supply capacity: | 50000 pieces per month |
| Packaging Details: | Special protection export product carton | brand: | Elecko |
| type: | PCBA OEM/ODM, multilayer board | Surface treatment: | Hot Air Solder Leveling on Double Sided PCB |
| Layers: | 4th floor | Minute Hole Size: | Component hole: 0.6-2.0mm, installation hole: 4mm |

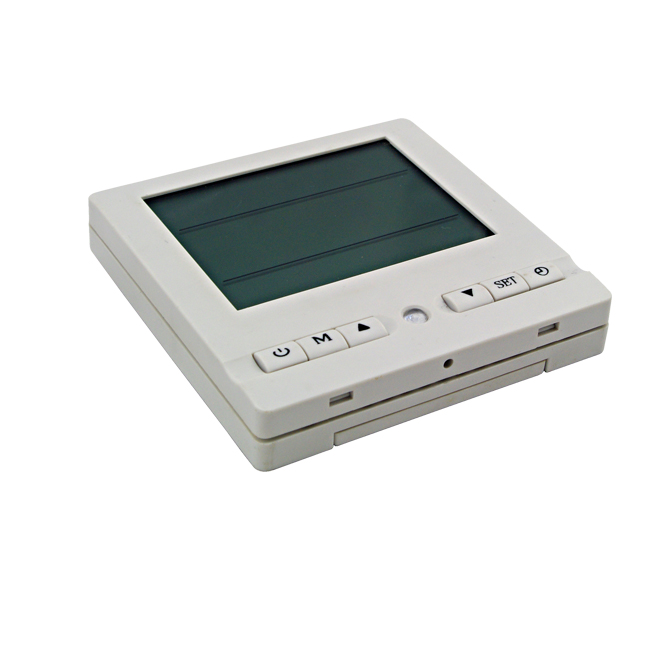

| Wire control: | 86*86*16mm | Origin: | Guangdong, China |
| application: | heat pump control board | payment terms: | L/C, Western Union, T/T |
| product name: | PCBAs | Minute line spacing: | Greater than 0.3mm |
| Plate thickness: | 1.6 mm |
Hot type air source dual system swimming pool heat pump pool thermostat controller
Product Description
1. Main features
1. Fully functional
2. A\D and I\O self-test function
3Easy to assemble and disassemble
4 LCD display, generous, easy to operate.
2. A\D and I\O self-test function
3Easy to assemble and disassemble
4 LCD display, generous, easy to operate.
5. Five-year warranty.
2. Specifications
| Model | CCYCKB00 |
| product name | Air source dual system swimming pool heat pump controller |
| illustrate | Its functions are the most complete among all swimming pool heat pump equipment controllers in the heat pump industry. It can be used in conjunction with the phase sequence detection board CCXT001. With powerful system protection function, A\D and I\O self-test function. Easy to assemble and disassemble. Large-screen LCD display, generous appearance, easy operation. |
| size |
Motherboard components: 120*153*30mm Wire control: 86*86*16mm |
| strength | 220V-240V AC.50-60HZ |
| mode options | Refrigeration, heating and automotive. |
| main function | automatic defrost |
| electro-thermal | |
| Power off memory | |
| car antifreeze | |
| Two-speed wind energy intelligent control exchange, etc. | |
| Temperature sensor detection inlet | Inlet water temperature |
| water temperature | |
| System 1 coil temperature | |
| System 2 coil temperature | |
| ambient temperature | |
| Switch signal detection entrance | Compressor 1 high pressure switch |
| Compressor 1 low pressure switch | |
| Compressor 2 high pressure switch | |
| Compressor 2 low pressure switch | |
| Flow switch | |
| emergency switch | |
| Phase sequence switch | |
| Relay socket | compressor 1 |
| compressor 2 | |
| water pump | |
| electro-thermal | |
| strong wind | |
| low wind | |
| Four-way reversing valve 1 | |
| Four-way reversing valve 2 | |
| electric crankshaft heating | |
| Product List | Dual system swimming pool heat pump controller motherboard (1PCS) |
| Large screen LCD panel (1PCS) | |
| Transformer (1PCS) | |
| 5m communication line (1PCS) | |
| Temperature sensor (6) |
