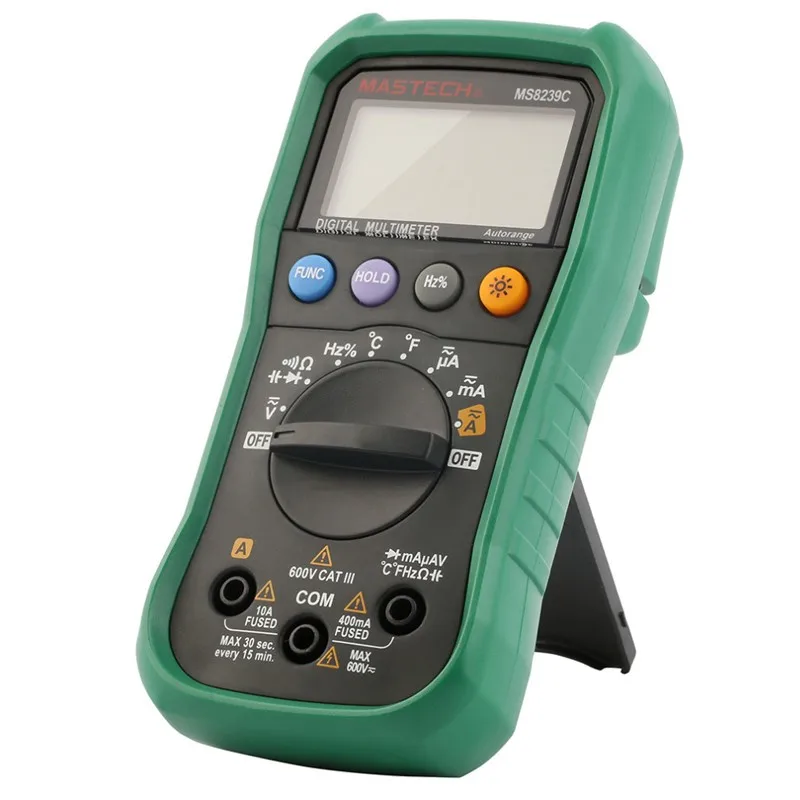

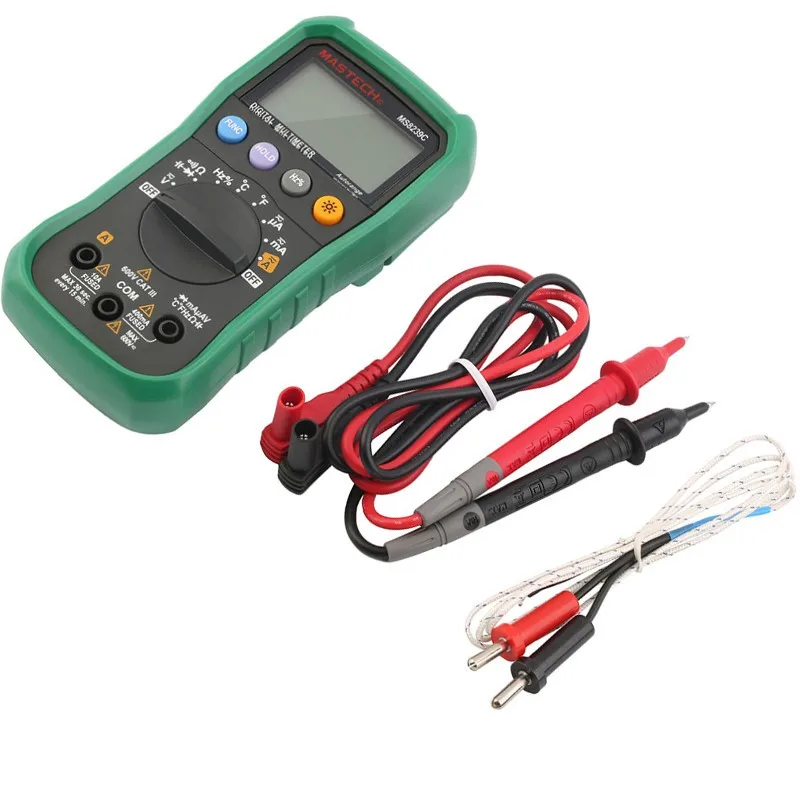

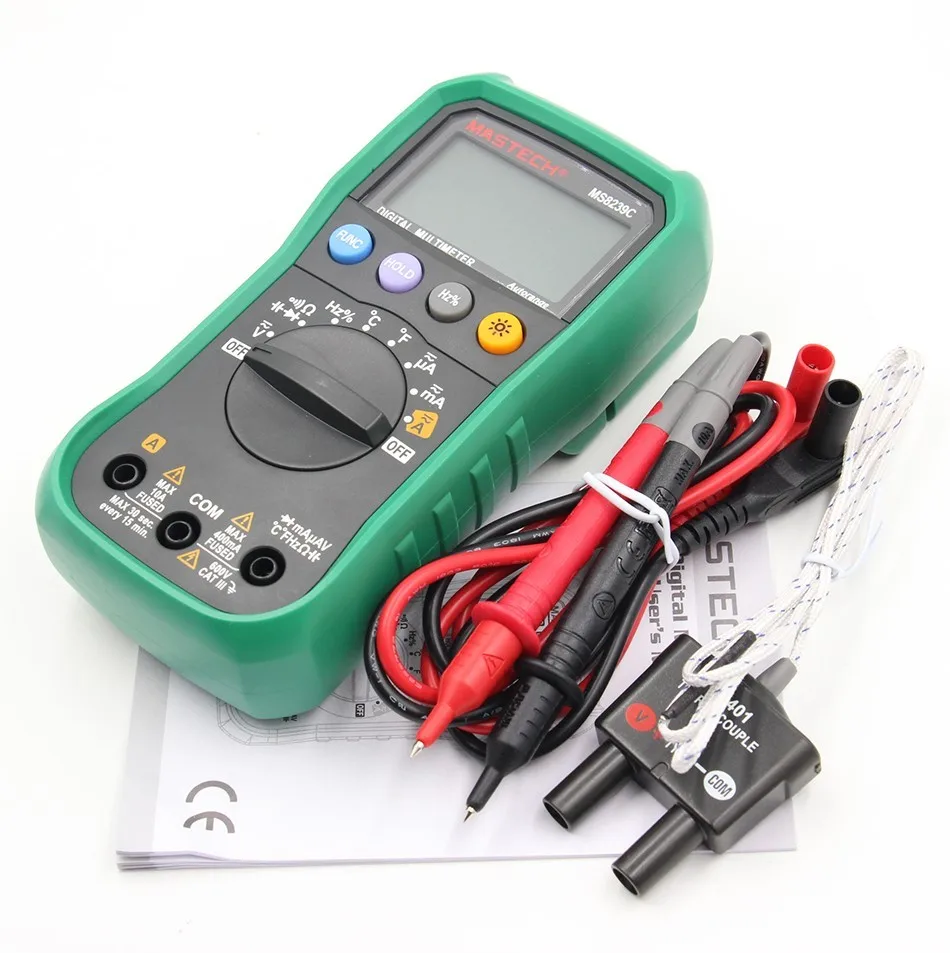

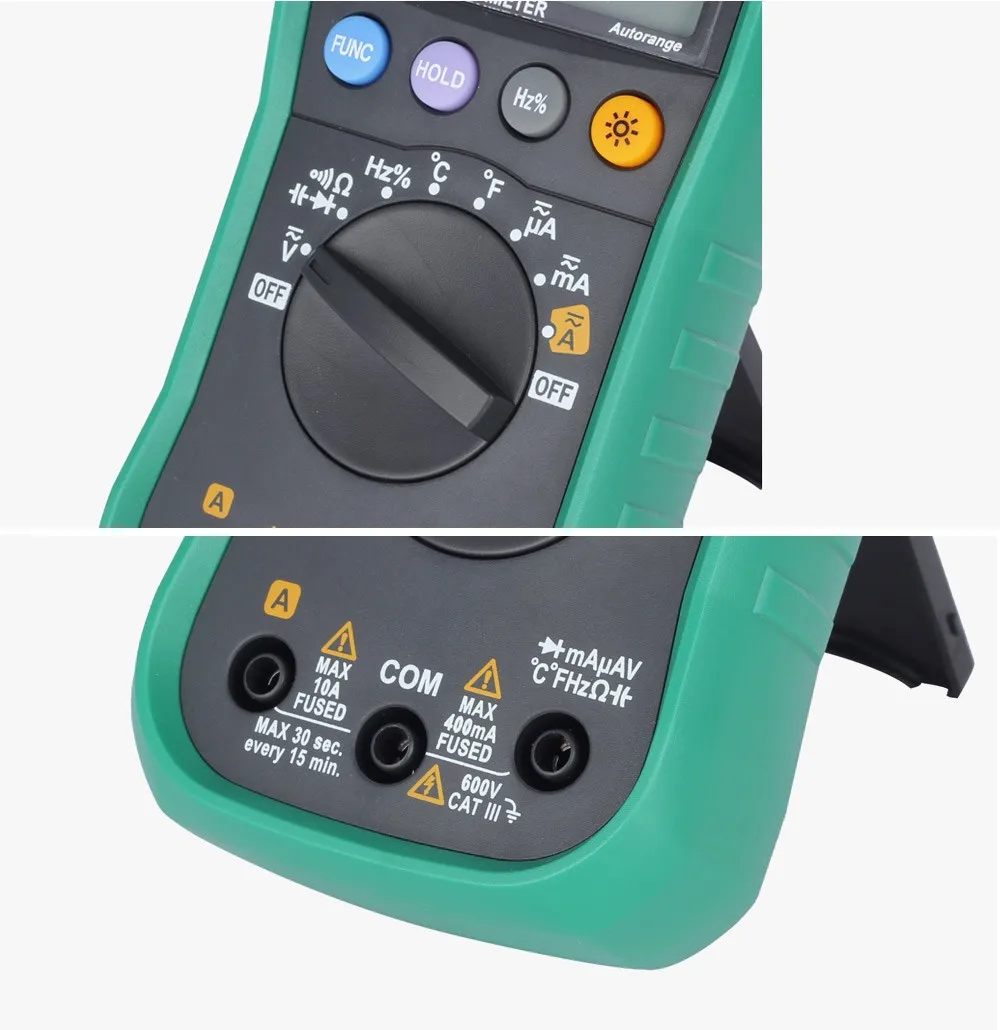

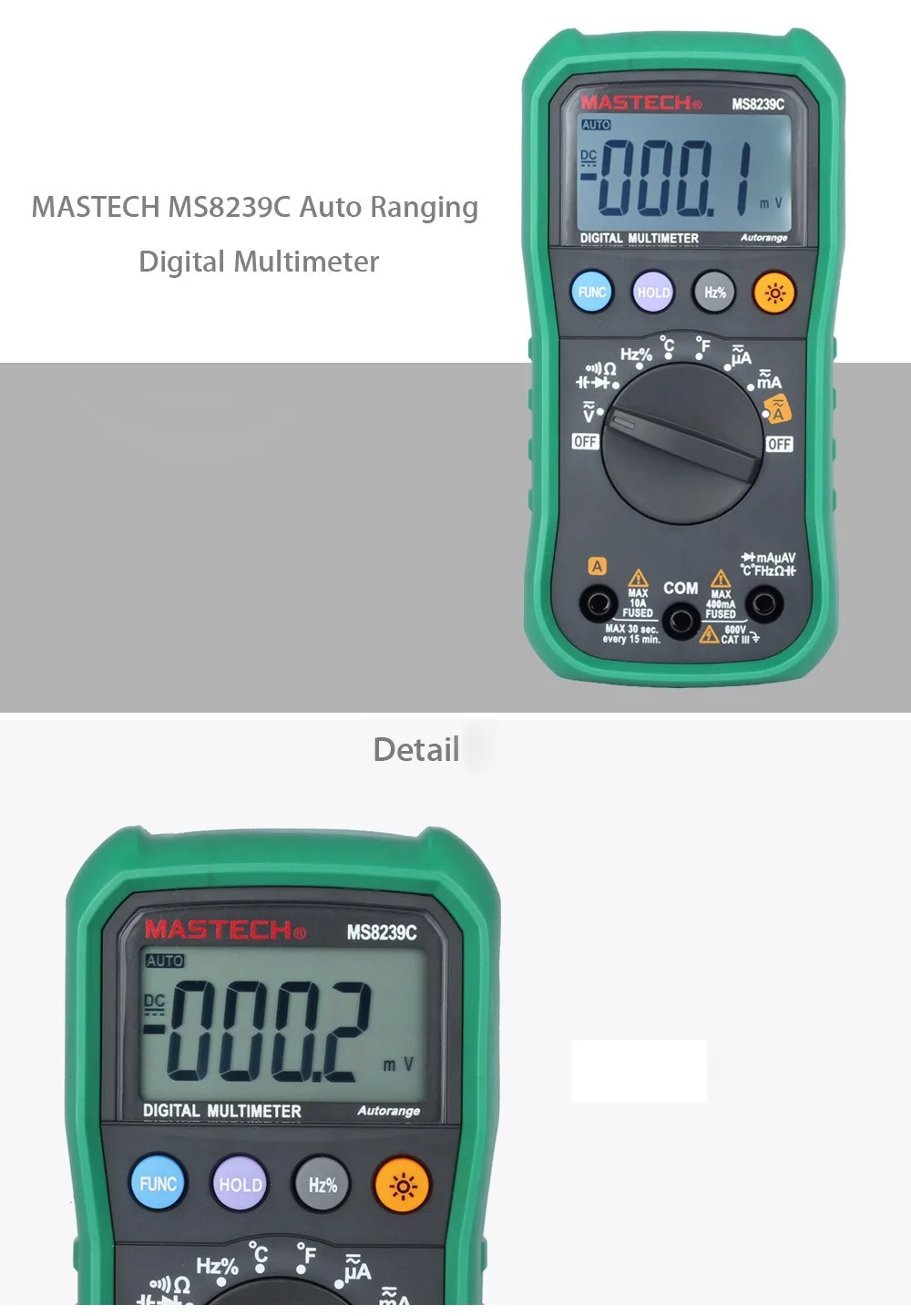

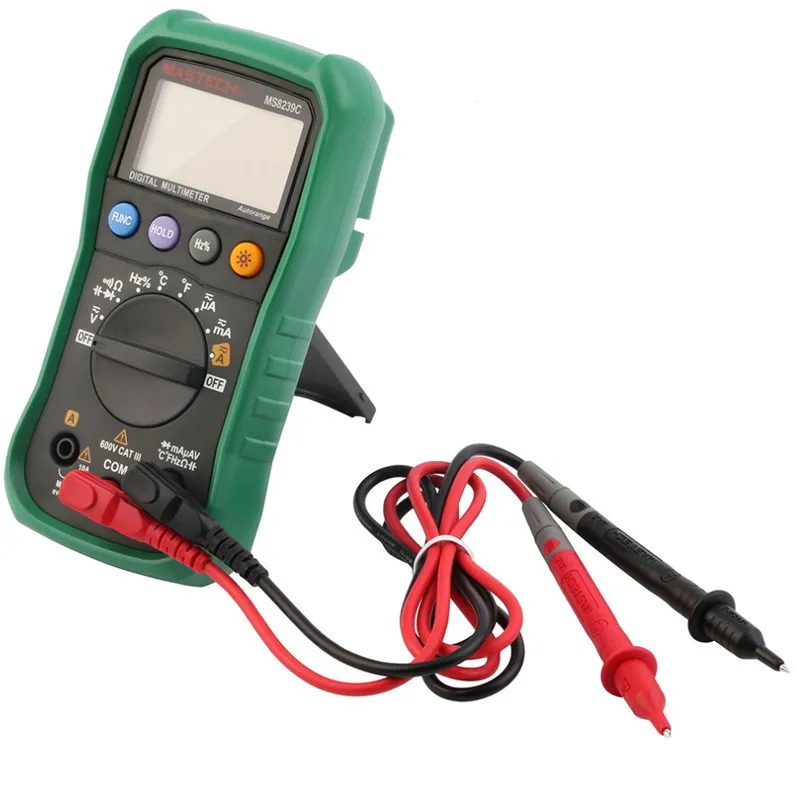

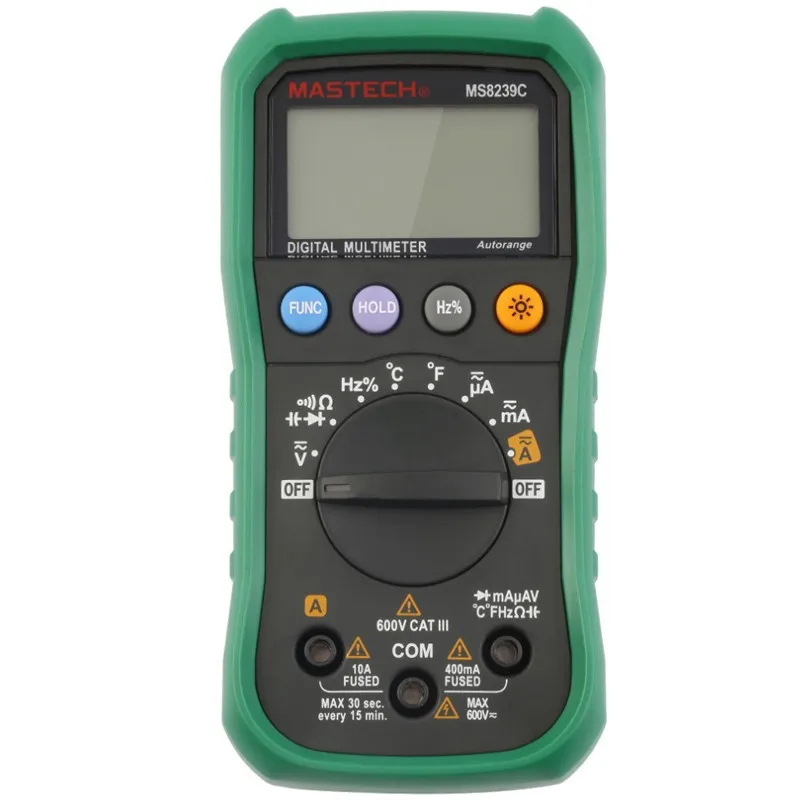

MS8239C Digital Multimeter Auto Range AC DC Voltmeter Ammeter Temperature Tester 600V 4000 Counts LCD Backlight
- 0.10 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| DC Voltage Measurement: | 400mV/4V/40V/400V/600V ± (0.5% +3); | Resistance: | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ± (0.8% +5); |
| Capacitance Measurement: | 5nF/50nF/500nF/5uF/50uF/100uF ± (3.0% +5); | Operating Temperature: | 0 - 40 ℃; |
| Port: | Ningbo or Shanghai; | Frequency Measurement: | 9.999HZ ~ 9.999MHz ± (1.5% +5); |
| Display Type: | Digital Only; | Model Number: | MS8239C LCD Digital Multimeter; |
| Measuring Range: | DC 400mV/4V/40V/400V/600V; | Power: | 2 *1.5V AAA; |
| DC current Measurement: | 400uA/4000uA/40mA/400mA ± (1.0% +5), 10A ± (2.0% +10); | small order: | yes; |
| Supply Ability: | 10000 Piece/Pieces per Month; | AC voltage Measurement: | 4V/40V/400V/600V ± (1.2% +5); |
| Dimensions: | 144X72X45MM; | Delivery Detail: | 5-7 days after receiving the payments; |
| Place of Origin: | Zhejiang China; | Packaging Detail: | standard export carton; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Brand Name: | sunstar; |
| AC current Measurement: | 400uA/4000uA/40mA/400mA ± (1.2% +5), 10A ± (2.5% +10); | Accuracy Class: | High; |
Product Description
Specification:
The MS8239C is a budget multimeter, it can test AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, temperature, diode, continuity check etc.
Besides, the portable hand-hold appearance design , high qaulity, accuracy and simple visible operation interface will make it very popular in electrical testing field.
General Specifications :
Environmental Conditions : 600V CAT III, Pollution Degree : II. Altitude <2000 m
Working temperature and humidity : 0 ~ 40 ° C (<80% RH, <10° C is not considered ) .
Storage temperature and humidity : -10 ~ 60 ° C (<70% RH, battery removed )
Temperature Coefficient: 0.1 ' Accuracy /° C (<18 ° C or > 28 ° C).
Allowed maximum voltage between the measuring terminal and the earth : 600V DC or 600V AC RMS
Fuse protection : mA file: Fuse F400mA/500V
10A file: Fuse F10A/500V
Sampling rate: about 3 times / sec
Display: 3 3/ 4 LCD display
Over-range indication: LCD will show "OL"
Low battery indication: When the battery voltage is lower than the normal operating voltage , " " will be displayed on the LCD screen
input polarity indication : Auto shows " - " sign
Technical Specifications:
DC voltage 400mV/4V/40V/400V/600V ± (0.5% +3)
AC voltage 4V/40V/400V/600V ± (1.2% +5)
DC current 400uA/4000uA/40mA/400mA ± (1.0% +5), 10A ± (2.0% +10)
AC current 400uA/4000uA/40mA/400mA ± (1.2% +5), 10A ± (2.5% +10)
Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ± (0.8% +5)
Capacitance 5nF/50nF/500nF/5uF/50uF/100uF ± (3.0% +5)
Frequency 9.999HZ ~ 9.999MHz ± (1.5% +5)
Duty cycle 0.1% ~ 99.9% ± (3.0% +5)
Temperature (° C) -20 ° C ~ 1000 ° C ± (3.0% +3)
Temperature (° F) -4 ° F ~ 1832 ° F ± (3.0% +3)
Diode and continuity
Power supply: 2 × 1.5V AAA (not include in package)
Size: 150mm × 74mm × 41mm
Weight: 202g
Safety Level: CE CAT.III 600V RoHS
The MS8239C is a budget multimeter, it can test AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, temperature, diode, continuity check etc.
Besides, the portable hand-hold appearance design , high qaulity, accuracy and simple visible operation interface will make it very popular in electrical testing field.
General Specifications :
Environmental Conditions : 600V CAT III, Pollution Degree : II. Altitude <2000 m
Working temperature and humidity : 0 ~ 40 ° C (<80% RH, <10° C is not considered ) .
Storage temperature and humidity : -10 ~ 60 ° C (<70% RH, battery removed )
Temperature Coefficient: 0.1 ' Accuracy /° C (<18 ° C or > 28 ° C).
Allowed maximum voltage between the measuring terminal and the earth : 600V DC or 600V AC RMS
Fuse protection : mA file: Fuse F400mA/500V
10A file: Fuse F10A/500V
Sampling rate: about 3 times / sec
Display: 3 3/ 4 LCD display
Over-range indication: LCD will show "OL"
Low battery indication: When the battery voltage is lower than the normal operating voltage , " " will be displayed on the LCD screen
input polarity indication : Auto shows " - " sign
Technical Specifications:
DC voltage 400mV/4V/40V/400V/600V ± (0.5% +3)
AC voltage 4V/40V/400V/600V ± (1.2% +5)
DC current 400uA/4000uA/40mA/400mA ± (1.0% +5), 10A ± (2.0% +10)
AC current 400uA/4000uA/40mA/400mA ± (1.2% +5), 10A ± (2.5% +10)
Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ± (0.8% +5)
Capacitance 5nF/50nF/500nF/5uF/50uF/100uF ± (3.0% +5)
Frequency 9.999HZ ~ 9.999MHz ± (1.5% +5)
Duty cycle 0.1% ~ 99.9% ± (3.0% +5)
Temperature (° C) -20 ° C ~ 1000 ° C ± (3.0% +3)
Temperature (° F) -4 ° F ~ 1832 ° F ± (3.0% +3)
Diode and continuity
Power supply: 2 × 1.5V AAA (not include in package)
Size: 150mm × 74mm × 41mm
Weight: 202g
Safety Level: CE CAT.III 600V RoHS

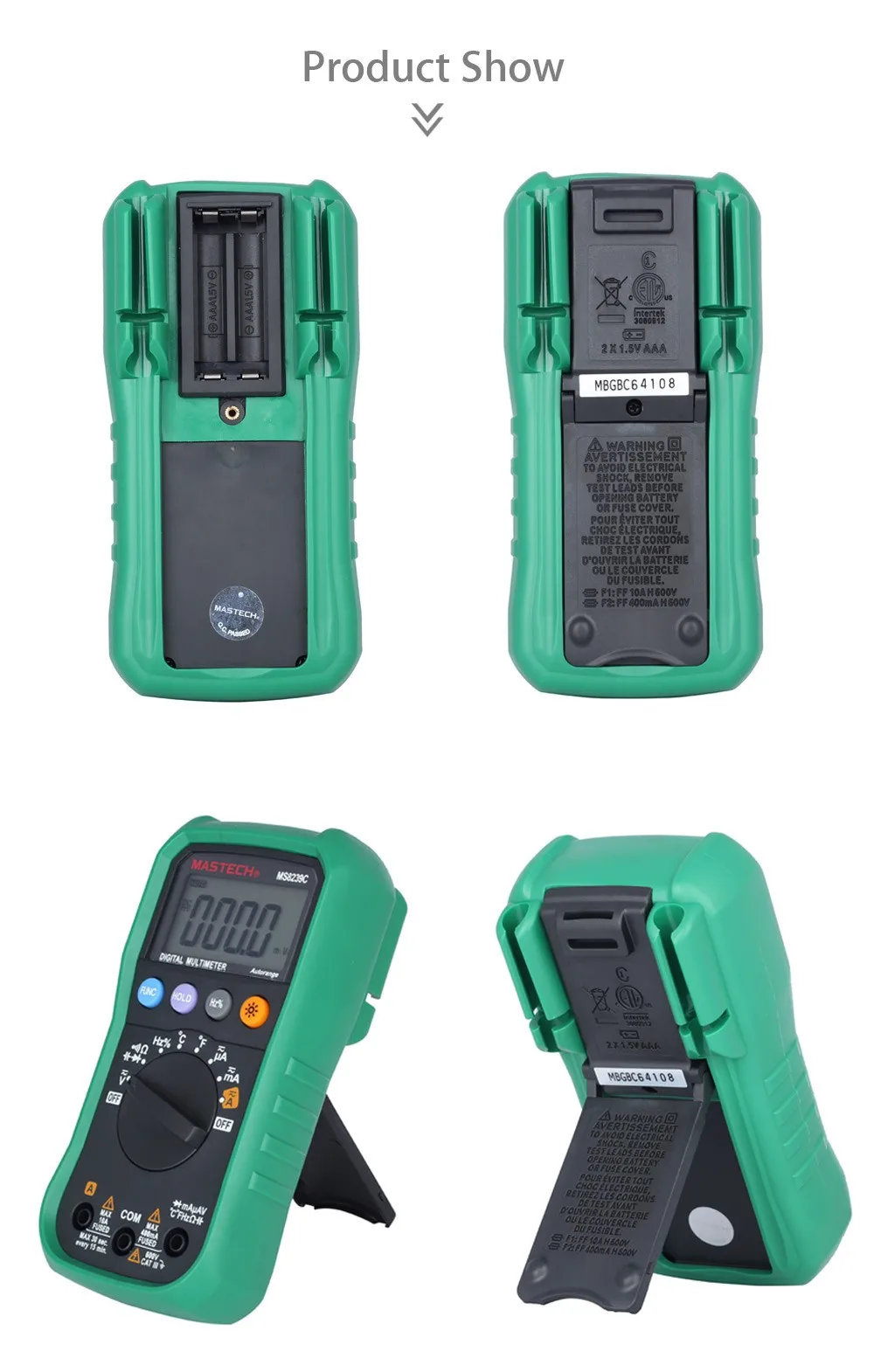

Products Show
Our Service
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Our Certifications
Customer Photo
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
