ZIXU Hot Sale New Condition Portable Micro Percussion Dot Peen Marking Machine

Supplier: Chongqing Zixu Machine Works
Region: Chongqing, China
Contact: Ms daisy Xiao
Price: $20.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Power:	300w;	Voltage:	220V/110V;
Marketing Type:	New Product 2020;	Min quantity:	1 set;
marking material:	Metal;	Machine Type:	pneumatic;
Feeding Height:	Portable;	Warranty of core components:	1 Year;
Certification:	CE;	Marking range:	50mmx25mm;
Milling Cutter Diameter:	2-4mm;	Weight:	8kg;
Application:	Industrial,mm;	Main Axle Rotational Speed:	Portable;
Warranty:	1 year;	After Warranty Service:	Video technical support,Online support;
Single gross weight:	22.0 KG;	Local Service Location:	Turkey,France;
Selling Units:	Single item;	Machinery Test Report:	Provided;
Core Components:	marking head;	Dimensions:	N/A;
Engraving Speed:	3~8 letters/second,5 letters per sencond;	Single package size:	45X45X55 cm;
Applicable Industries:	Hotels,Machinery Repair Shops,Manufacturing Plant,Restaurant;	Packaging Detail:	Packing in wooden cases;
Video outgoing-inspection:	Provided;	Place of Origin:	Chongqing China;
Key Selling Points:	Easy to Operate;	Showroom Location:	Turkey,France;
Colour:	Red;	Condition:	New;
Rated Power:	300W;	Brand Name:	ZIXU;

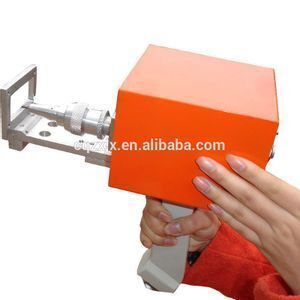

ZIXU Hot Sale New Condition Portable Micro Percussion Dot Peen Marking Machine

Portable Chassis Vin Number Marking Engraving Machine,is used for marking car chassis number.

portable type,light weight,very easy to use it.we also supply hundred of font type,youc an choose,which font,you like.if you also want to be our distributior,we would be very welcome.We are 12 years factory, 8 years export experience,providing one stop service,machine customized,have No complaints on alibaba.we are a worthy trust supplier!

Marking speed	2-5 characters(2x2mm)/s
Stroke Frequency	300times/s
Marking depth	0.01 to 1mm (Vary to the material)
Marking contents	Alphanumeric info, Data Matrix or dot matrix 2D codes, Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics and etc.
Stylus Pin Hardness	HRA92/HRA93
Marking area	80x40mm,130x30mm,140x80mm,200x200mm
Dimensions	140x20x240mm
Marking materials	below HRC60 metallic and nonmetallic materials , above HRC60 need special stylus
Repeat accuracy	0.02-0.04mm
Power	300W
Work voltage	AC 110V 60HZ or AC220V 50HZ
Compressed Air( Pneumatic Air)	0.2-0.6Mpa
Connection	USB and RS-232
Controller	7"LCD touch screen controller
Power type	Pneumatic
Marking directions	up, down, left, right, and the circular arc surface marking
Gross weight	13KG

Marking sample

We have specialized in laser marking machine,pneumatic marking machine for 12 years.we have supply marking machine parts for more than Hundreds of marking machine supplier in this world.

And we are the assigned supplier of Changan ,Xinyuan,Chuanyi.We have export to the United Kingdom, Spain, France, Germany, the United States, Dubai and Brazil, South Korea and other more than 30 countries and regions.

Packaging & Shipping

We have two types of packing: suit for air and ocean transportation.

Packing by corrugated board boxes, Light weight, freight is lower
Packing by wooden case, more security delivery with heavier weight and higher freight

Our Services

As we do not have the maintenance department at overseas, you can send back the problem spare parts to maintenance or replacement the new spare parts.
We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us.
