• Supplier: Chongqing Zixu Machine Works
  • Region: Chongqing, China
  • Contact: Ms. daisy XiaoJob Title:CEO
  • Price: $2,150.00-$5,730.00 /Set
  • Min. Order: 1 Set (MOQ)

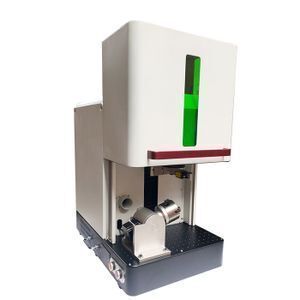

ZIXU galvo head 50w mini rotary gold and silver ring jewelry laser marking engraving machine details
Product Keywords:laser ring marking machine;Working Accuracy:0.001;
Marketing Type:New Product 2020;Machinery Test Report:Provided;
Marking depth:0.01-1mm;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Retail,Printing Shops,Construction works ,Jewelry Shop;
Object material:Gold, silver, metal etc.;Marking Speed:0-7000mm/s;
Laser Source Brand:RAYCUS;Core Components:laser source;
Laser wavelength:1060nm;Cooling Mode:Air Cooling;
Product name:laser marking machine;Key Selling Points:Long Service Life;
After Warranty Service:Video technical support,Online support,Spare parts;Showroom Location:United States,France,Germany,Philippines,Peru,Indonesia,Pakistan,Spain,Argentina,Colombia,Bangladesh,Japan;
Condition:New;Color:Blue Red Laser Body;
After-sales Service Provided:Online support,Free spare parts,Video technical support;Warranty:3 Years,2 years;
Laser source:Raycus laser source;Control Software:ezcad;
Brand Name:ZIXU;Packaging Detail:Fumigation-free three-layer plywood box and foam;
Selling Units:Single item;Single package size:55X73X83 cm;
Control System Brand:Beckhoff;Marking Area:150mm*150mm;
Place of Origin:Chongqing China;CNC or Not:yes;
Local Service Location:United States,Italy,France,Brazil,Indonesia,Russia,Japan,Malaysia,Morocco,Colombia,Kyrgyzstan,Nigeria,Tajikistan;Certification:ce,ISO,Sgs;
Application:engraving letter on metal jewelry,Laser Marking;Video outgoing-inspection:Provided;
Warranty of core components:2 years;Single gross weight:110.0 KG;
Package Preview:;Laser Type:Fiber Laser;
Weight (KG):68;Graphic Format Supported:PLT,DXF,BMP,Dst,Dwg,LAS,DXP;



Product Description

1. small size design can lead into additonal space savings and weight.

2. Copyrighted JCZ software.

3. Optional Raycus and Max, IPG etc., famous brand laser sources.

4. Support oem, custom-made, wholesale service

5. Factory price with competitive.

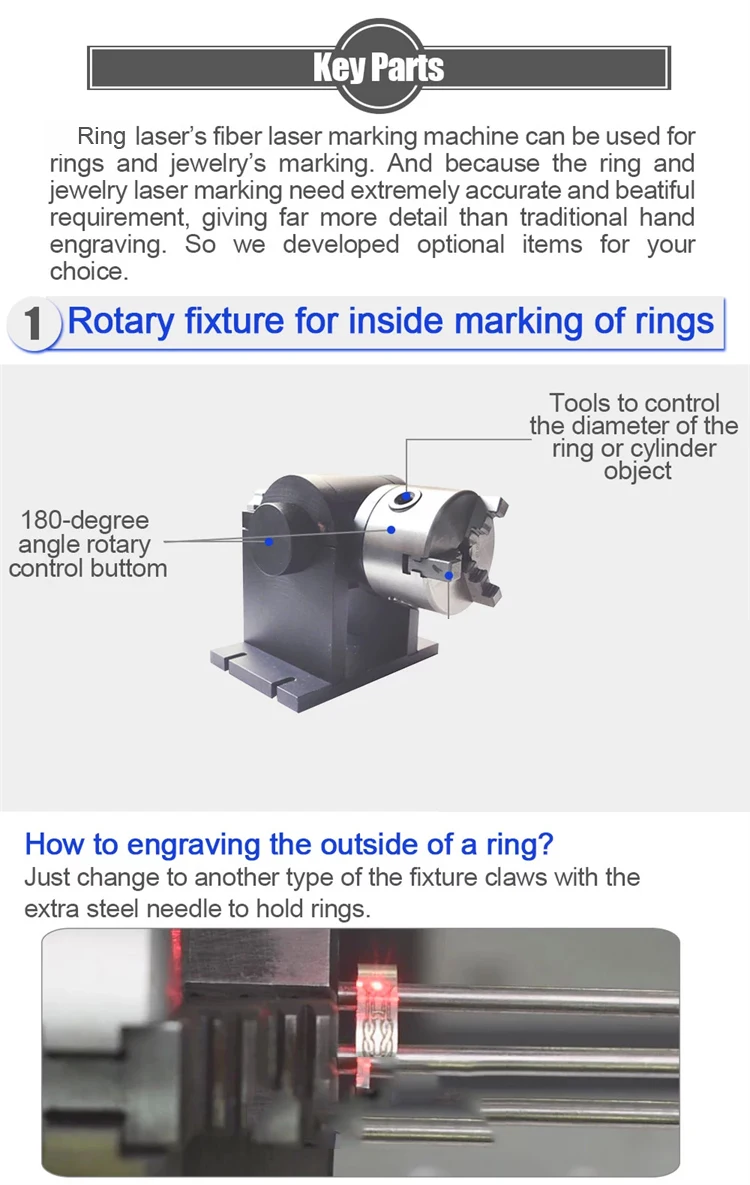

6.supply rotry fixture,for ring marking,easy to use.

7.full-enclosed machine body,more safe.

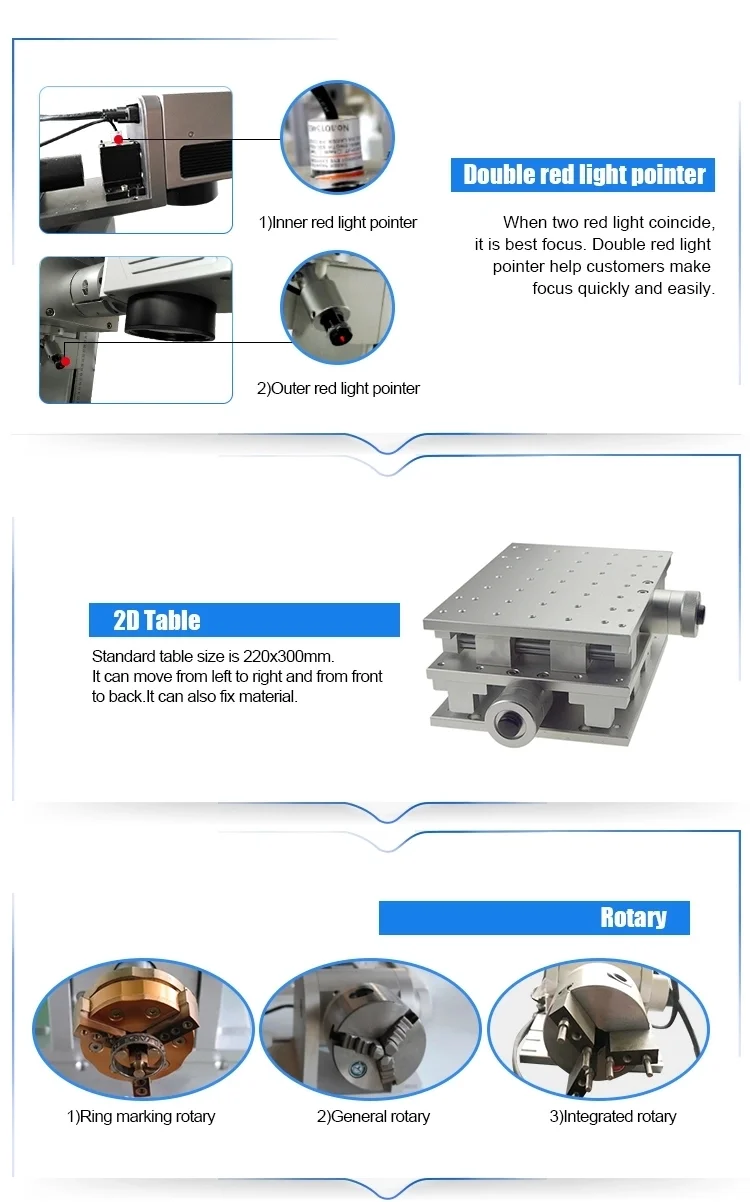

8.auto-focus,easy to marking.no need manual lift.

Hot sale product





Machine Parameter

Marking Machine Parameter

+

Laser power

20w/30w/50W

Laser Wavelength

1064nm

Light beam quality

<2

Repeating precision

±0.002

Marking range

110x110mm (customize)

Marking depth

0.01~1mm (vary to material)

Marking speed

7000mm/s

Minimum character

0.15mm

Minimum line width

0.01mm

Repeating frequency

20KHz~30KHz

Marking content

Graphics, text, bar codes, two-dimensional code, date,

batch number, serial number

Graphic format supported

bmp, png, ai, dxf, dst, plt

working voltage

220V±10%/50Hz/4A

Size

75*55*83cm

Gross Weight

55kg

Control interface

standard USB port

Working environment

Clean and dust free or dust less

Laser module life

100000~200000 hours

click here visit our shop directly now!!!

Click for More Information!!!

Detailed Images













Company Information









Our Services

We offer 24 hours online of professional service, focusing here contact us now!!!





+
Delivery time 3~10days
Type of shipping Express, Air and Sea
Terms of payment T/T, Credit Card, Western Union, Paypal
Package size 75x55x83cm
Gross weight 55kg
