K1260 Rail Gas Cutting Machine Steel Rail Saw Railway Cutting Machine

Product details
weight:20.5 kg;The gasoline engine power:5.8 kw;
The grinding wheel piece form:double strengthen silk screen;Dimensions (L x W x H) (mm):NA;
Payment Terms:Western Union,D/P,D/A,T/T,paypal;The fuel tank capacity:1.25 L;
Material:iron;Cutting time:≤120 s;
Port:Qingdao,Shanghai,Ningbo,Shenzhen;Rated speed:5100 + 100 r/min;

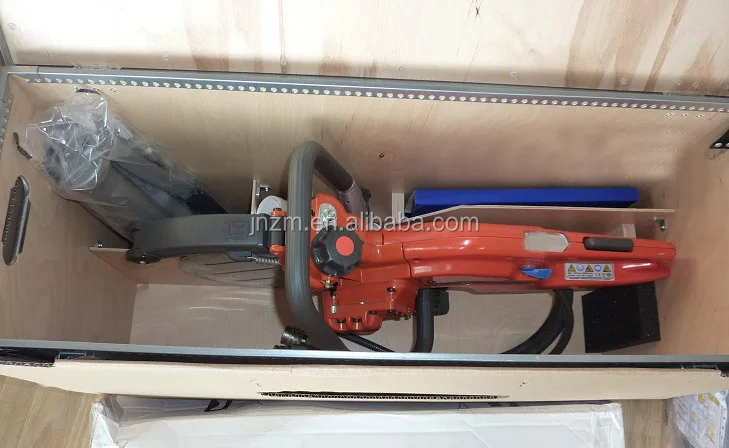

Packaging Detail:carton and wooden box, or as per your request;clamp weight:5Kg;
Grinding wheel piece size:355mmX25.4mm;The gasoline engine forms:single cylinder air cooling two stroke;
Supply Ability:1000 Piece/Pieces per Month;The maximum linear speed:100 m/s;
Place of Origin:Shandong China;Type:rail cutting machine;

Product introduction of  K1260 Rail Gas Cutting Machine Steel Rail Saw Railway Cutting Machine

K1260 type Internal combustion rail cutter is a portable cutting machine to maintenance machinery .For the import of small gasoline engine as power, the pulley will power transfer to sand wheel, drive cutting grinding wheel rotation, to realize the purpose of cutting rail. Host and rail clamping device can be decomposed easy to carry, has small volume, light weight, cutting speed, cutting section rail high accuracy, reliable, convenient rail clamping operation, etc.zmwm09

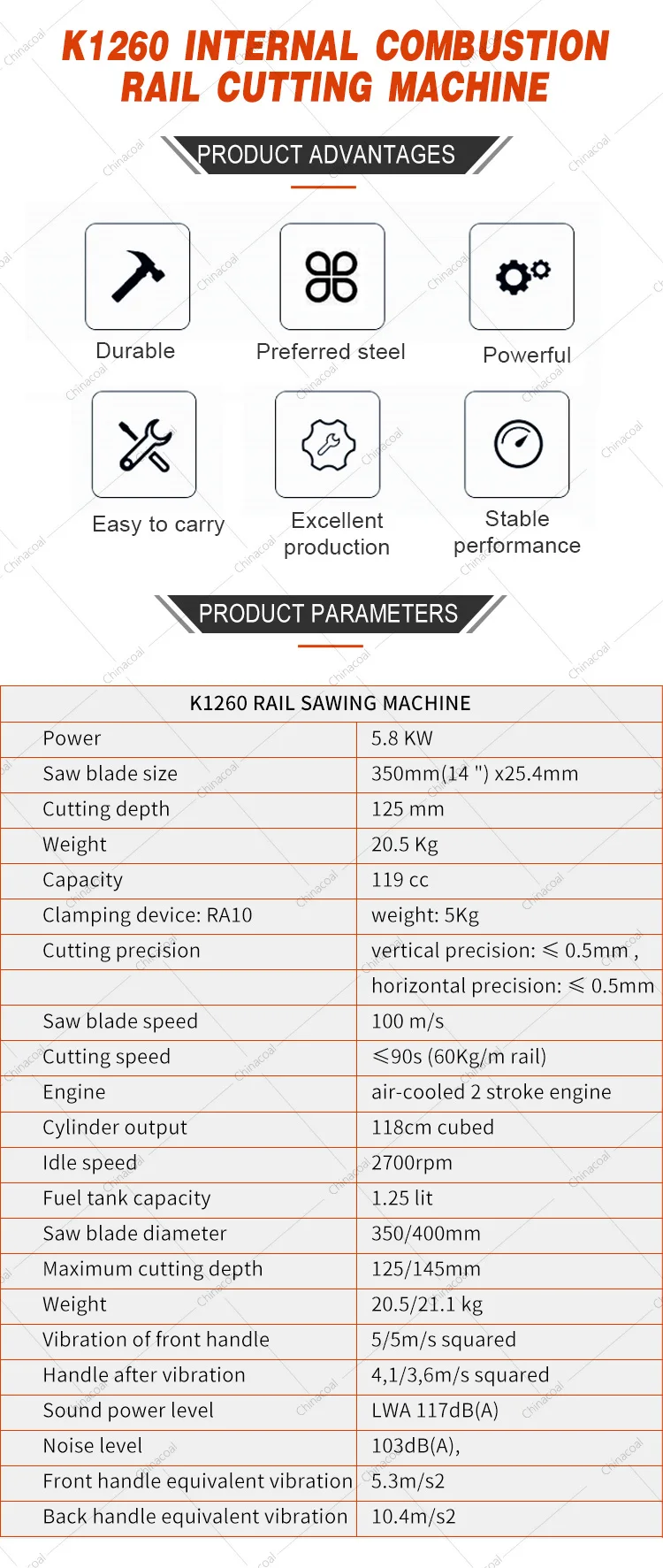

Product parameter of  K1260 Rail Gas Cutting Machine Steel Rail Saw Railway Cutting Machine

1. The gasoline engine forms

 single cylinder air cooling two stroke

2. The gasoline engine power

 5.8 kw

3. The grinding wheel piece form

 double strengthen silk screen

4. The maximum linear speed

 100 m/s

5. Rated speed

 5100 + 100 r/min

6. Grinding wheel piece size

 Φ355mmX25.4mm,

7. Cutting precision

a.Incision and rail longitudinal vertical deviation

≤0.40 mm

b.Two-way cutting interface plane deviation

≤0.35 mm

8. Cutting time

 ≤120 s

9.clamp weight

 5Kg

10. weight

 20.5 kg

11. The fuel tank capacity

 1.25 L

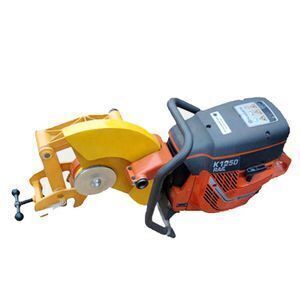

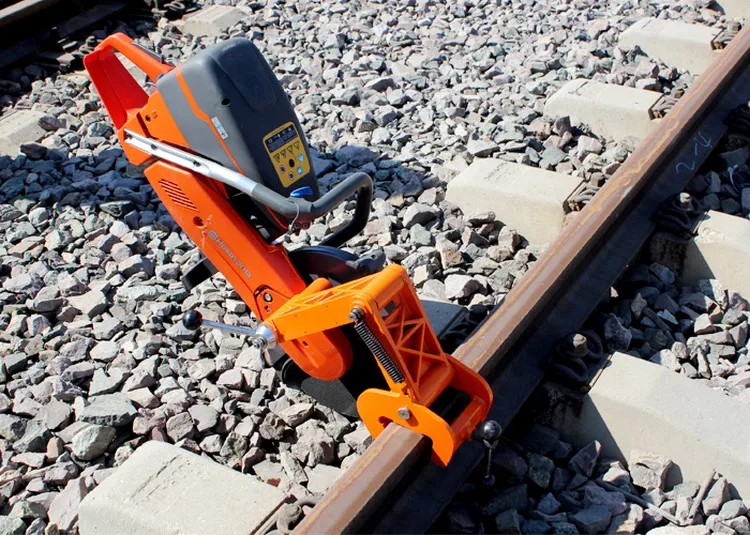

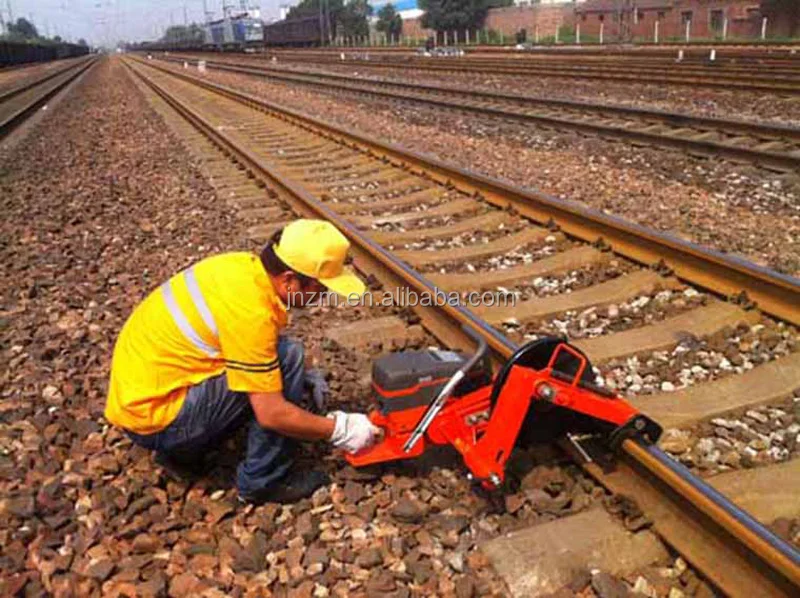

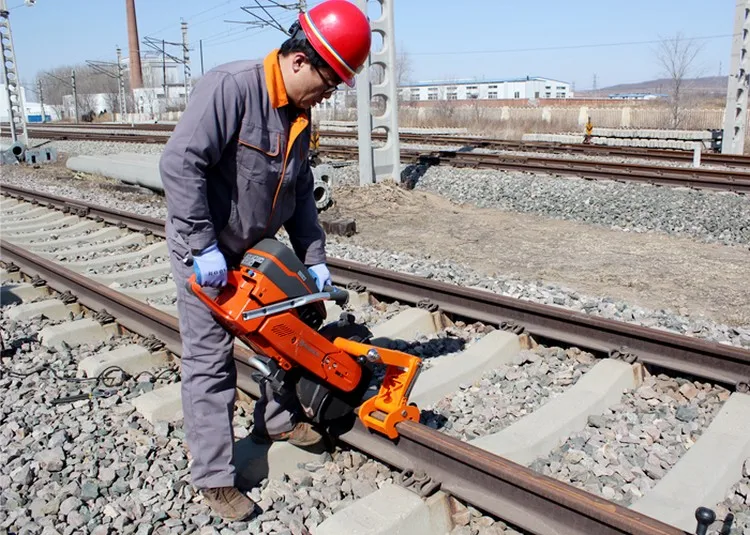

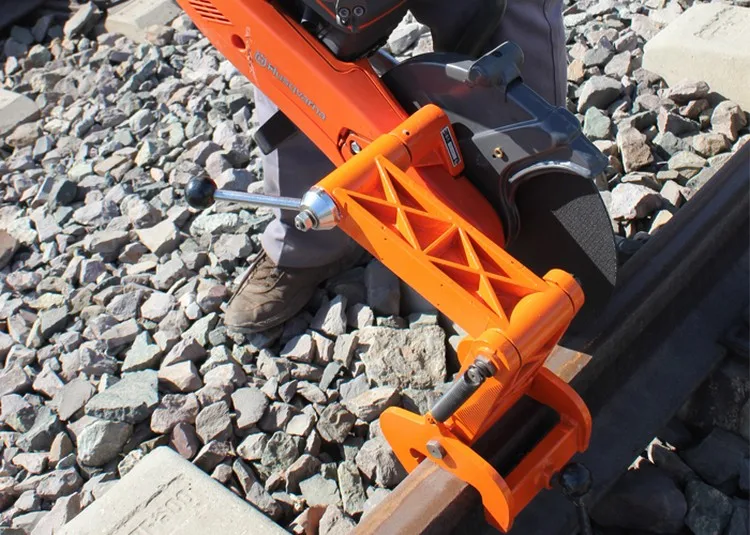

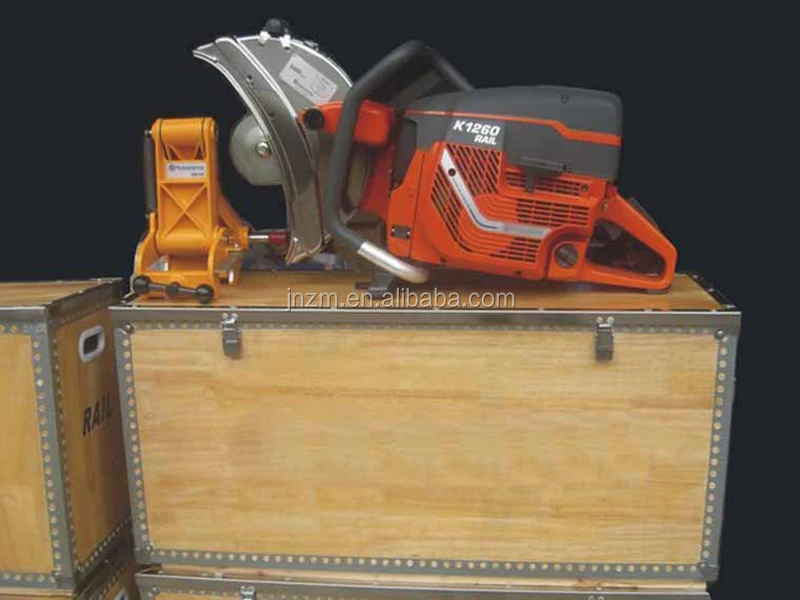

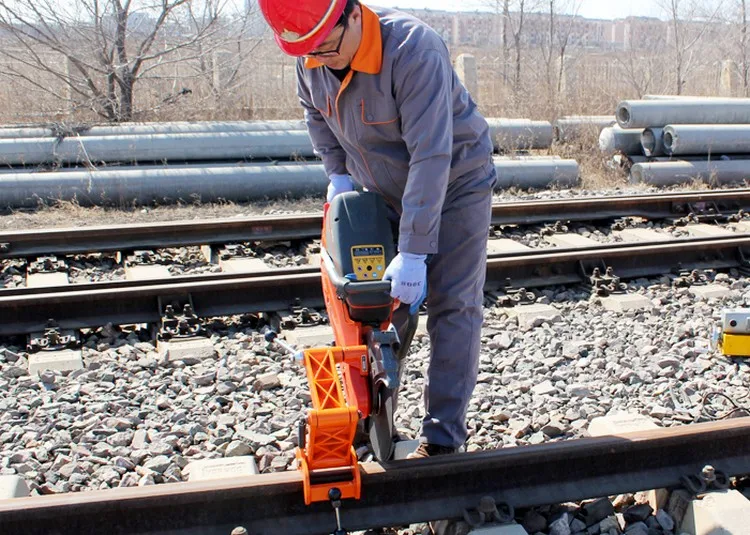

Product photos of  K1260 Rail Gas Cutting Machine Steel Rail Saw Railway Cutting Machine
