Splitting Wedge Machine Rock Splitting Tools/ Stone Rock Splitter Provided 1 YEAR Engine Energy & Mining Ordinary Product
- 700.00 set
| Showroom Location: | None; | Motor Type: | Other; |
| Theoretical splitting force: | 500t; | Supply Ability: | 1000 Set/Sets per Month Rock Splitting Tools/ Stone Splitting Wedge Machine; |
| Key word: | High Efficiency; | Condition: | New; |
| crack width (mm): | 10~35; | Application: | Stone; |
| Port: | Qingdao,Shanghai,Ningbo,Shenzhen; | The actual split force: | 280t; |
| Payment Terms: | Western Union,T/T,Paypal, Alibaba Trade Assurance; | Video outgoing-inspection: | Provided; |
| Place of Origin: | Shandong China; | Marketing Type: | Ordinary Product; |
| Split time: | 5~12s; | Local Service Location: | None; |
| Certification: | ISO9001, CE, ISO,; | Material: | High Manganese Steel; |
| Brand Name: | China Coal; | The length of the wedge(MM): | 150; |
| Packaging Detail: | carton box, plastic bags, wooden cases or as your requirement; | Machinery Test Report: | Provided; |
| Warranty: | 1 Year; | Applicable Industries: | Building Material Shops,Construction works ,Energy & Mining; |
| Dimension(L*W*H): | differ; | Core Components: | Engine; |
| Hole Diameter: | 32~38mm; | Feature: | Easy Carry; |
| Hole Depth(mm): | ≥300; | Type: | Rock Splitter; |
| Warranty of core components: | 1 Year; |
Rock Splitting Tools/ Stone Splitting Wedge Machine Introduction
Rock Splitting Tools/ Stone Splitting Wedge Machine
Rock Splitting Tools/ Stone Splitting Wedge Machine is our newly developed Product which is a powerful and
extremely cost effective alternative to other conventional demolition tools. It can develop a very huge
splitting force (Maximum 1000 T) when it put into the pre- drill holes of rock or concrete and crack it
into pieces within several seconds. It is widely used in mineral mining (cave mining), civil engineering
construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
Rock Splitting Tools/ Stone Splitting Wedge Machine Parameter
|
Model |
Piston Diameter |
Hole Diameter |
Hole Depth(mm) |
The length of the wedge |
crack width |
Split time |
Theoretical splitting force |
The actual split force |
|
(Type) |
(MM) |
(MM) |
(MM) |
(MM) |
(mm) |
(S) |
(T) |
(T) |
|
ZM( 32-38)A |
80 |
Φ32~38 |
≥300 |
150 |
10~35 |
5~12 |
500 |
280 |
|
ZM( 38-40)A |
80 |
Φ38~42 |
≥300 |
150 |
10~40 |
5~12 |
500 |
280 |
|
ZM( 38-40)B |
80 |
Φ38~42 |
≥400 |
200/250 |
10~40 |
5~12 |
650/600 |
350/300 |
|
ZM( 40-42) |
90 |
Φ42~46 |
≥600 |
300 |
10~40 |
5~12 |
680 |
420 |
|
ZM( 42-46) |
90 |
Φ42~46 |
≥600 |
380 |
10~40 |
5~12 |
650 |
500 |
|
ZM( 44-46)A |
100 |
Φ44~46 |
≥600 |
300/380 |
10~40 |
5~12 |
780 |
550 |
|
ZM( 44-46)B |
105 |
Φ44~46 |
≥600 |
300/380 |
10~40 |
5~12 |
880 |
600 |
|
ZM( 46-48) |
110 |
Φ46~48 |
≥600 |
300/380 |
10~40 |
5~12 |
1080 |
700 |
|
Poewr pump pack |
Dimension(mm) |
weight(kg) |
Tank capability(L) |
Engine power |
pressure(MPa) |
Flux(L/m) |
Splitting(pc) |
|
Diesel engine |
1150*1180*940 |
120 |
40 |
6Hp |
55-60 |
2-13 |
1-10 |

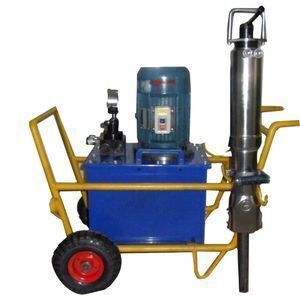

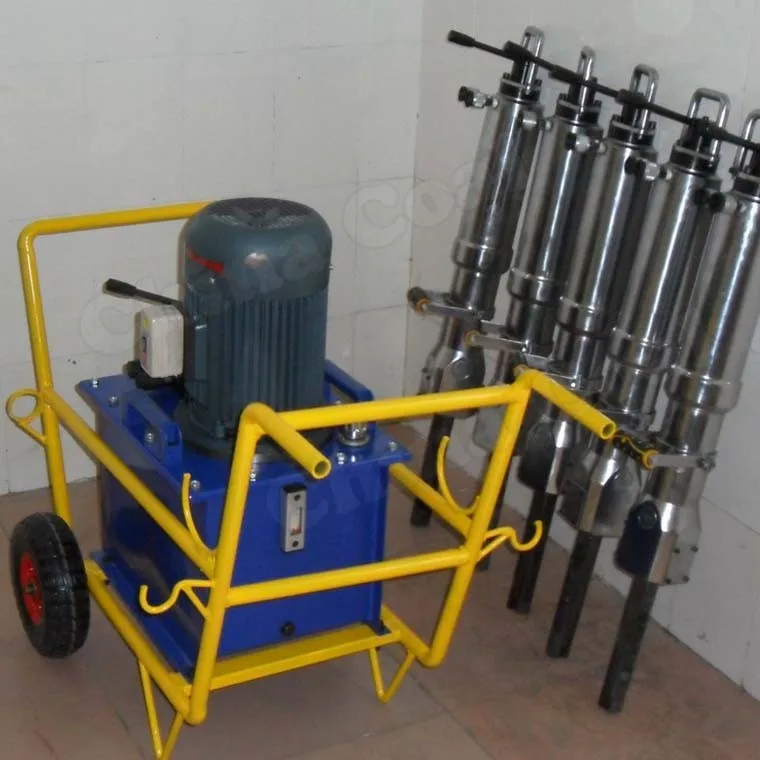

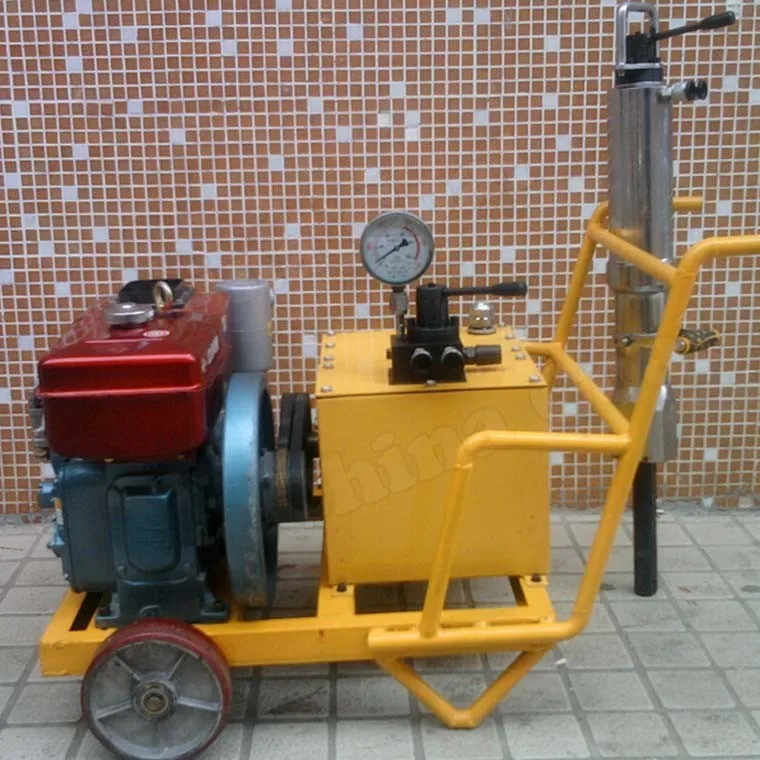

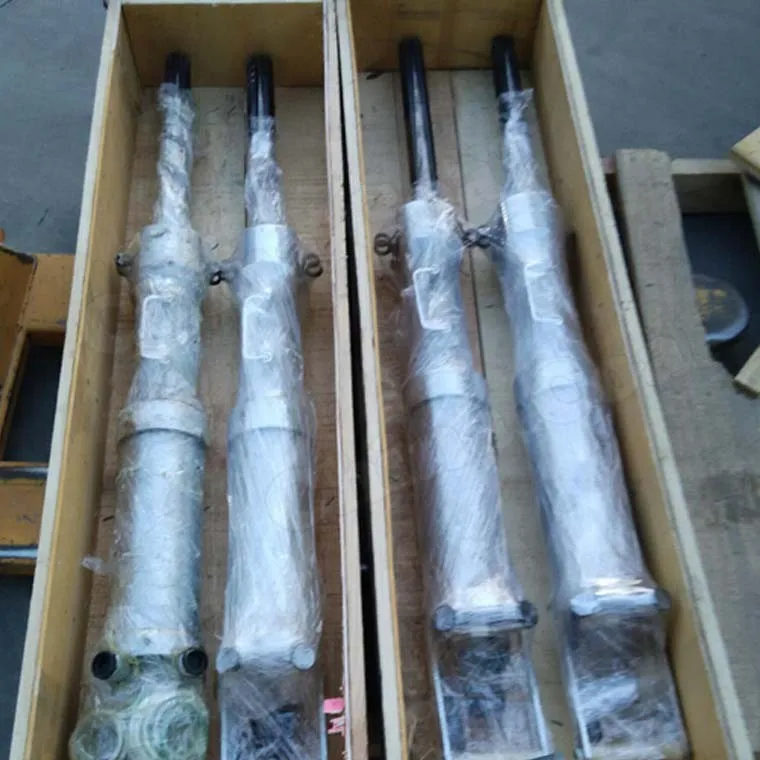

Rock Splitting Tools/ Stone Splitting Wedge Machine Photos
