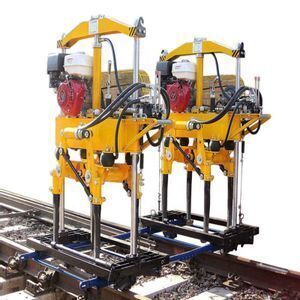

railway tamper YD-22 Hydraulic Rail Tamping Machine

Supplier: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Region: Shandong, China
Contact: Ms Julien Zhu
Price: $5600.00 /pair
Min. Order: 1 pair

Click here to contact

Product details

Clamping Force:	6.5kN*2;	Supply Ability:	100 Piece/Pieces per Week railway tamper YD-22 Hydraulic Rail Tamping Machine;
Max. Inset Force:	16kN;	RPM:	3600;
Vibrating Frequency:	66.7Hz;	Inserting Depth:	<110mm±10mm;
Port:	Tianjin,Shenzhen,Qingdao;	YD-22 Hydraulic Rail Tamping Machine:	railway tamper YD-22 Hydraulic Rail Tamping Machine;
Type:	railway maintenance machine;	Place of Origin:	Shandong China;
Power:	9.5kw;	Dimensions (L x W x H) (mm):	1300x750x1600mm;
Brand Name:	Rail Tamping Machine;	Vibrating Force:	22kN;
Packaging Detail:	wooden carton for railway tamper YD-22 Hydraulic Rail Tamping Machine;	Material:	Steel;
Efficiency(group/h):	≥260piece;	Payment Terms:	L/C,Western Union,T/T;
Hydraulic System Working Pressure:	5~6MPa;

Product Description

Introduction of railway tamper YD-22 Hydraulic Rail Tamping Machine

YD-22 Hydraulic Tamping Machine adopts new material and technology, this type of machine is our upgrading product. Its basic structure and working principle reserves the original advantages, that is of double guide pillar frame and single cylinder lifting mode. Due to increasing the tine palm inserting depth and the guide pillar stroke stop means, it’s able to to operate on II type concrete sleeper and III type concrete sleeper, and on various concrete sleeper and rail track. Its main technical performance is better than the old type. It’s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed. This machine has the features of high quality performance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.

Packaging & Shipping

Main Parameter of railway tamper YD-22 Hydraulic Rail Tamping Machine

Engine	Name	GX390 Honda Petrol Engine
	Power	9.5kw
	RPM	3600
Hydraulic System Working Pressure	5~6MPa
Vibrating Frequency	66.7Hz
Vibrating Force:	22kN
Max. Inset Force	16kN
Clamping Force	6.5kN×2
Inserting Depth	<110mm±10mm
Efficiency(group/h)	≥260piece
Net Weight:	422kg
Dimension:	1390mm×750mm×1600mm
Operating Form:	(1) Unilateral or bilateral off-track
	(2) Bilateral next two as a group, for single line shoulder a narrow area.
Travel Frame Gauge :	600mm
