300mV~3V frequency counter panel meter
- 12.00 >=10 pieces
| Power: | 5v/12vdc user request other power; | Port: | XI'AN,CHINA; |
| Display Type: | Digital Only; | Packaging Detail: | 250 pcs/carton; |
| Supply Ability: | 2000 Piece/Pieces per Day; | Payment Terms: | T/T,Western Union,MoneyGram,paypal; |
| SIgnal: | calibrate it based on user voltage/wave format; | Brand Name: | XIELI; |
| Dimensions: | (W)79X(H)42.5X(D)25.5mm; | Accuracy Class: | ±0.02%+3digit; |
| Model Number: | XL5155P; | Measuring Range: | 1~99999Hz panel meter; |
| Place of Origin: | Shaanxi China; | Operating Temperature: | 0~45; |
| Voltage: | DC5V; |

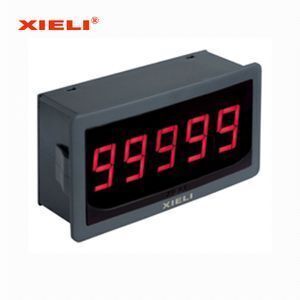

LED digital Frequency meter
Specification:
Display color: Red
15mm bright LED
Operating temperature: 0~50
Relative humidity: 20~80%
Input signal amplitude:300mV~3V 3V~250V
Power supply: DC5V 150mA
Install method: inlay
Tapping size: 76X39mm
Dimension:(W)79X(H)42.5X(D)25.5mm(with plug)
|
Model |
Range |
Resolution |
Power supply |
Waveform&signal amplitude |
Accuracy |
|
XL5155P-2 |
100.1Hz~950.0Hz |
0.2Hz |
DC5V |
Square wave3V~10V Sine wave 3V~250V |
±0.2%+3digit |
|
XL5155P-3 |
1Hz~99.999kHz |
1Hz |
DC5V |
Square wave3V~10V Sine wave 3V~250V |
±0.02%+3digit |
|
XL5155P-4 |
10Hz~500.00klHz |
10Hz |
DC5V |
Square wave3V~10V Sine wave 3V~250V |
±0.02%+3digit |
|
Model |
Range |
Resolution |
Power supply |
Waveform&signal amplitude |
Accuracy |
|
XL2002P |
0.10Hz~99.99Hz |
0.02Hz |
AC220V |
Square wave3V~10V Sine wave 3V~250V |
±0.2%+3digit |
|
XL2003P |
100.1Hz~950.0kHz |
0.2Hz |
AC220V |
Square wave3V~10V Sine wave 3V~250V |
±0.02%+3digit |
|
XL2004P |
1Hz~99.999klHz |
1Hz |
AC220V |
Square wave3V~10V Sine wave 3V~250V |
±0.02%+3digit |
|
XL2005P
|
10Hz~500.00klHz |
10Hz |
AC220V |
Square wave3V~10V Sine wave 3V~250V |
±0.02%+3digit |
Inner package: 1 unit/Box
Shipping package: Carton
Shipping Item: FedEX, DHL etc. or appointed shipping way
XIELI Ltd has been founded SINCE 1994, at beginning she is a military products manufactuer, now has developed into a high & new technology enterprise which manufacture various digital panel meters for Civilian instrument & Military.
We have more than 80 employees, and the R&D team have 8 members, include ONE electronic subject Doctor.
We can provide ODM service according to your equipment/project requirement
Please don't hesitate contact me freely :-). Philip
