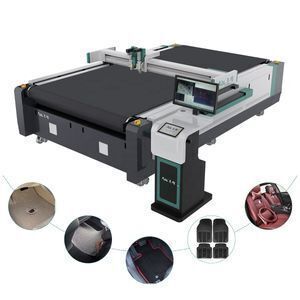

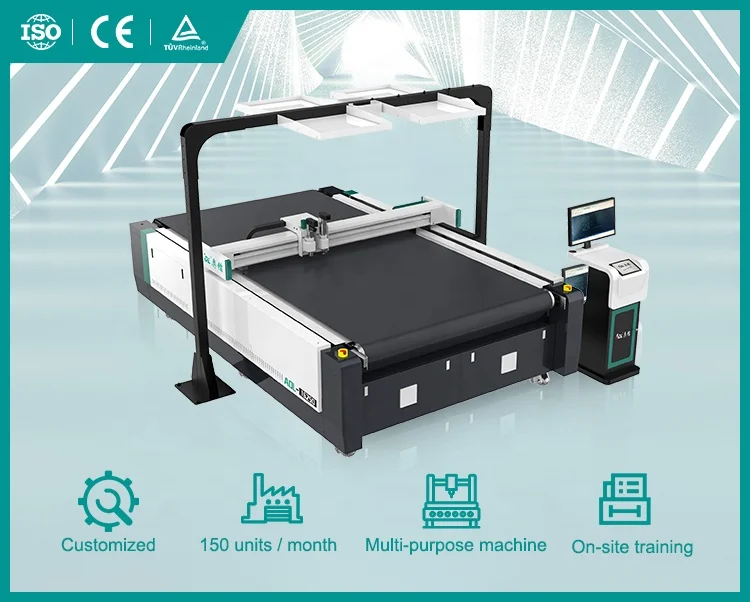

AOL CNC oscillating knife leather cutting machine with high precision

Supplier: Jinan AOL CNC Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Wendy Wang
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil;	Product name:	knife leather cutting machine;
Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil;	After Warranty Service:	Video technical support,Online support;
Warranty:	2 years;	Port:	Qingdao;
Dimension(LWH):	345023001250MM;	Automatic Grade:	Automatic;

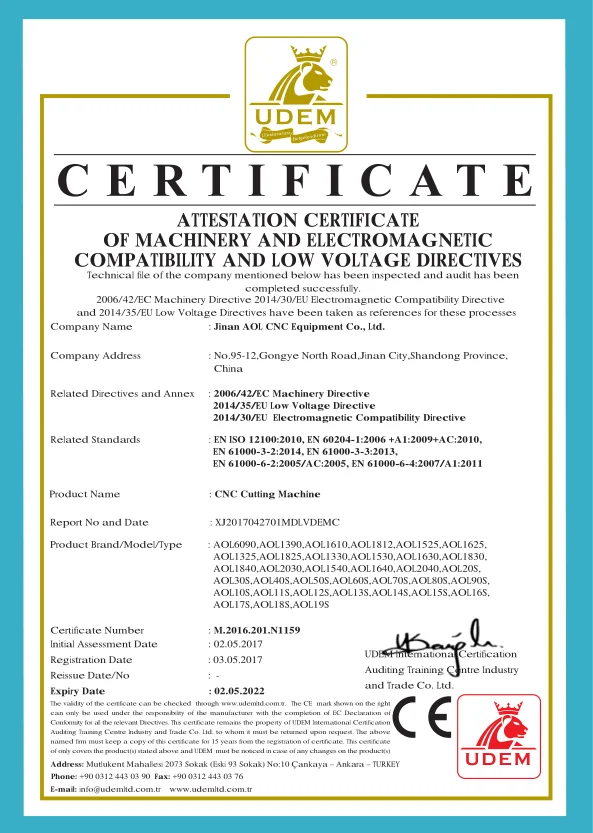

Certification:	CE Certification;	Keywords:	knife leather cutting machine;
After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Video technical support;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Provided;	Weight:	1500kg;
Condition:	New;	Packaging Detail:	standard wooden case package;
Place of Origin:	Shandong China;	Power:	11KW;
Type:	Cutting Machine;	Voltage:	220V/380V;
Supply Ability:	80 Set/Sets per Month;	Payment Terms:	T/T;
Applicable Industries:	Garment Shops,Home Use;	Core Components:	Motor,Pump;
Brand Name:	AOL;	Warranty of core components:	1 Year;
Marketing Type:	Ordinary Product;

AOL CNC oscillating knife leather cutting machine with high precision

Company profile

AOL company is a very famous CNC equipment manufacturer in China. The company’s products include LASER ENGRAVING MACHINE, LASER CUTTING MACHINE, METAL CUTTING MACHINE, LASER MARKING MACHINE, WOODWORKING MACHINE,ADVERTISEMENT MACHINE, ETC. Over the past few years, the company has put a lot of money on R&D.So as time goes by, AOL still is in a very dominant position in domestic and overseas market. We hold the stance that the creation is the key to success. And that is also what AOL does.

Welcome to contact me.

Model	AOL-1625
Working area	2500×1600mm
Machine size (mm)	3450×2300×1250
Rated power	11KW
Fixed mode	flat plate table
Safety device	Using infrared sensors, responsive, safe and reliable.
translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickness	≤22mm(according to different cutting materials)
Cutting materials	Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy	≤0.1mm
Capacity	2GB

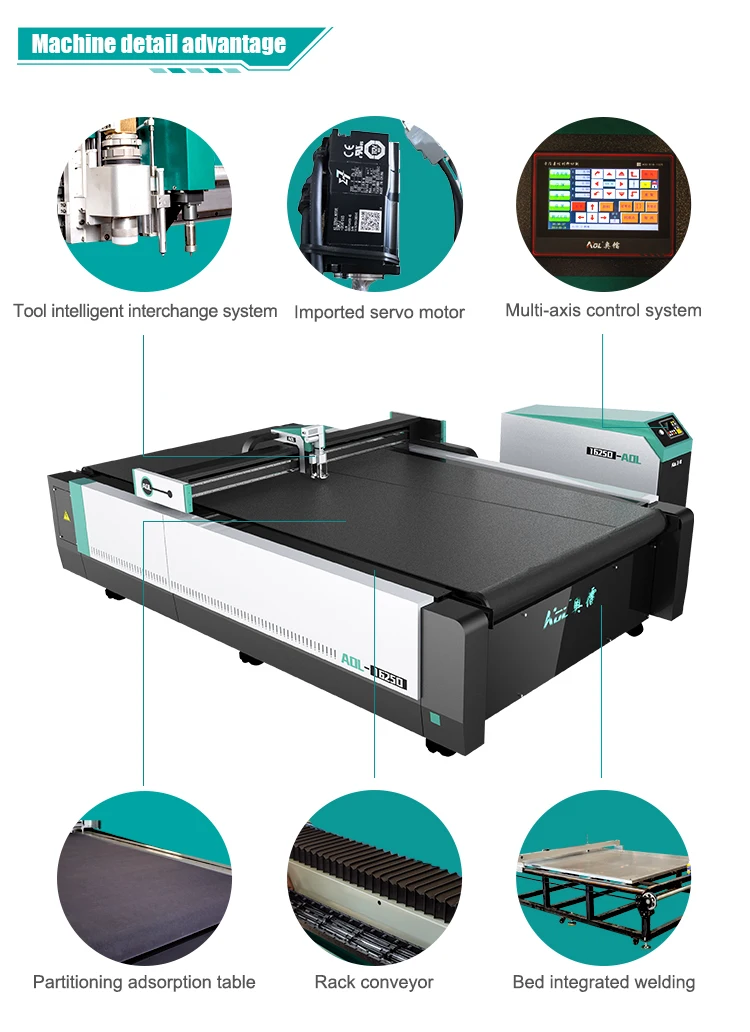

Transmission system	imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system	HP-GL compatible format
Voltage	380V±10%

AOL CNC oscillating knife leather cutting machine Applications

It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

AOL CNC oscillating knife leather cutting machine Advantages

1. The most obvious advantage is the machine is environmental friendaly, which is beneficial to the envvironment protection.

2. The high precision AOL CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.

3. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision AOL CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy
