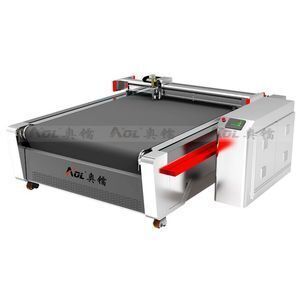

Foam and sound insulation foam knife cutting machine

Supplier: Jinan AOL CNC Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Wendy Wang
Price: $21000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Repeated accuracy:	≤0.1mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Qingdao port, China;	Warranty:	2 years;
Packaging Detail:	Wooden case for Foam and sound insulation foam knife cutting machine.;	Capacity:	2GB;
Processing Type:	Foaming Machine;	Weight:	860KG;
Color:	Customized;	Fixed mode:	Vacuum suction table;
Power(W):	11KW;	Working area:	1600*2500mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Voltage:	220V/380V;
Cutting thickness:	≤22mm;	Certification:	ce;
Brand Name:	AOL;	Dimension(LWH):	230035601221mm;
Supply Ability:	100 Set/Sets per Month;

Foam and sound insulation foam knife cutting machine

Product Description

1. Cutting by knife not laser, no air pollution , no burntedge, cutting speed is 5-8 times faster than laser cutting machine.

2. Imported PMI/Hiwin square linear guide and Japanese servo motor ensure high precison and fast cutting speed.

3. High performance is guaranteed with the integrated circuit plate.

4. The application of an Ethernet port makes the cutting plotters fast and convenient

5.User friendly. This cutting machine was designed easy to install, set-up and operate.

6. Special safety sensory device meets the European standard.

7.The platform detection device regulates the knife pressure automatically,enabling a level platform and perfect cutting.

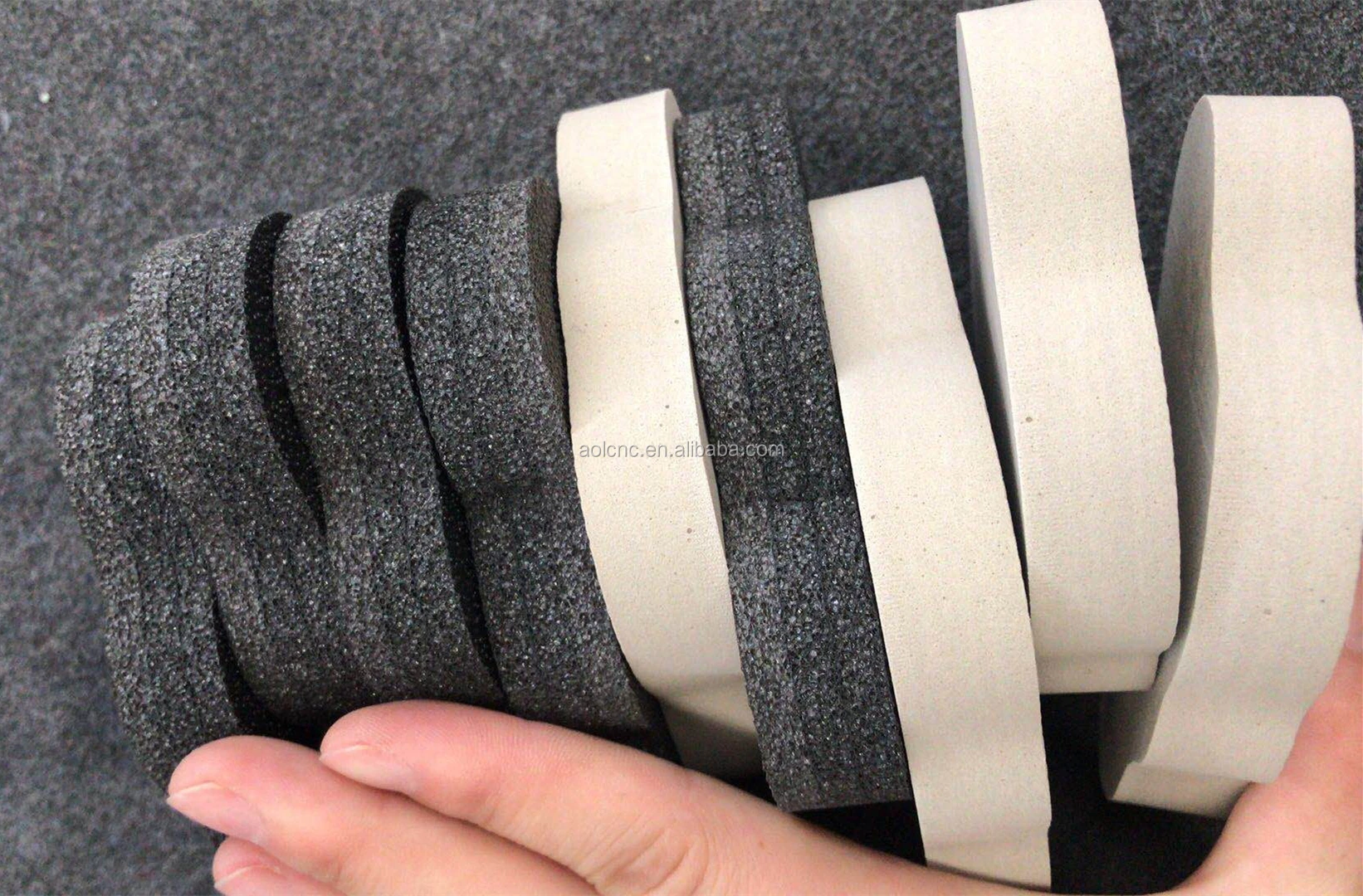

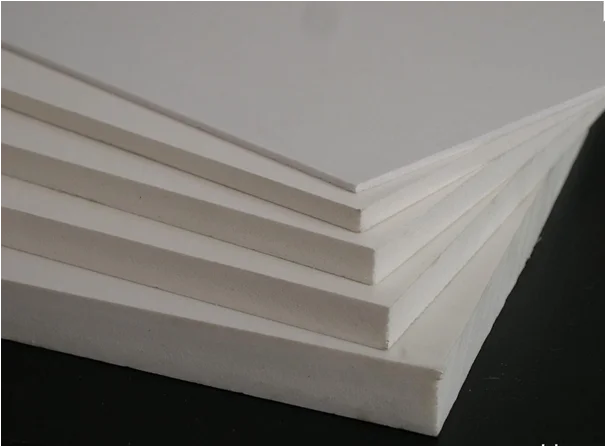

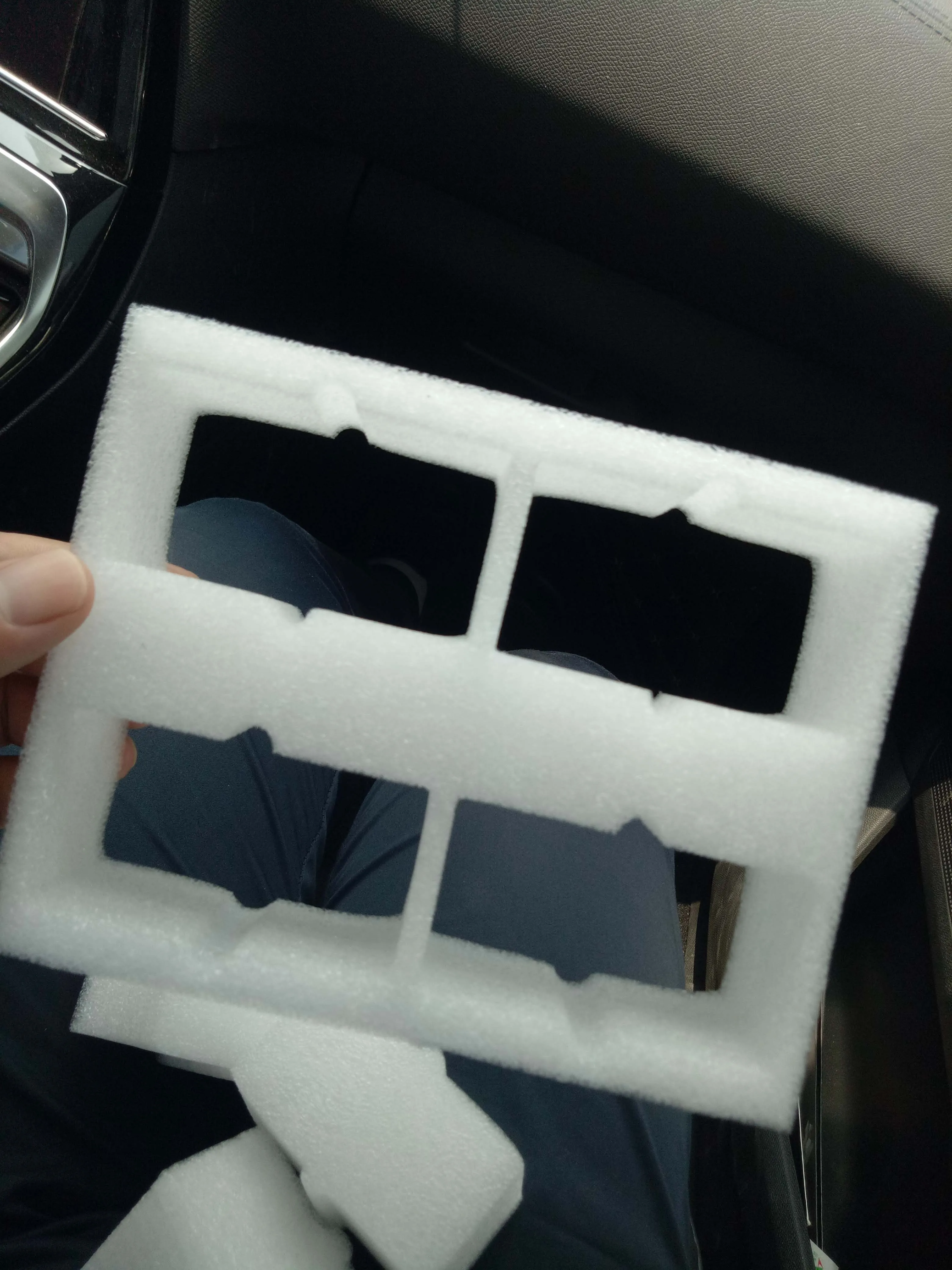

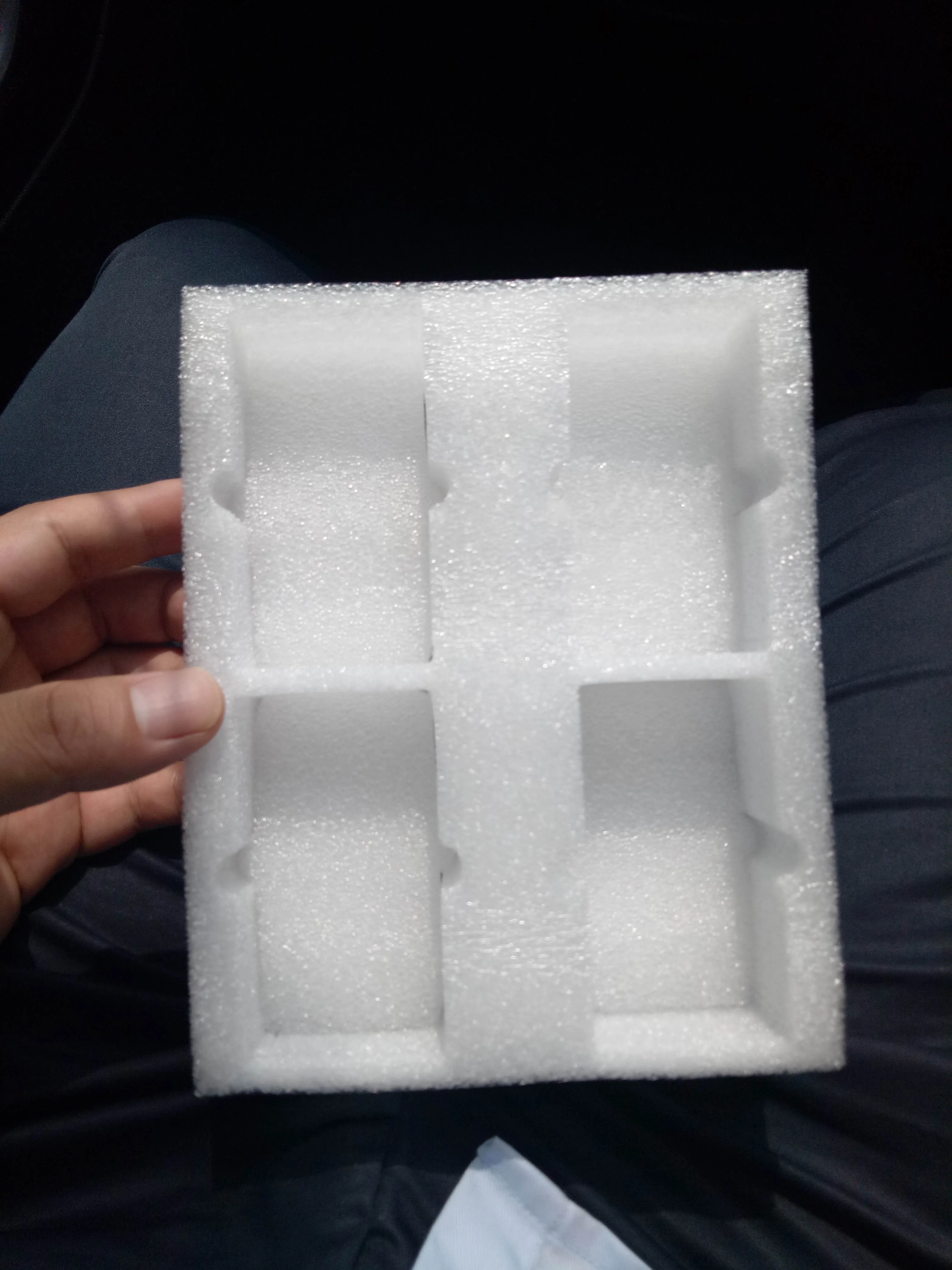

Applicable materials of Foam and sound insulation foam knife cutting machine

Leather, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board, acrylic board, rebound rubber, rubber cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

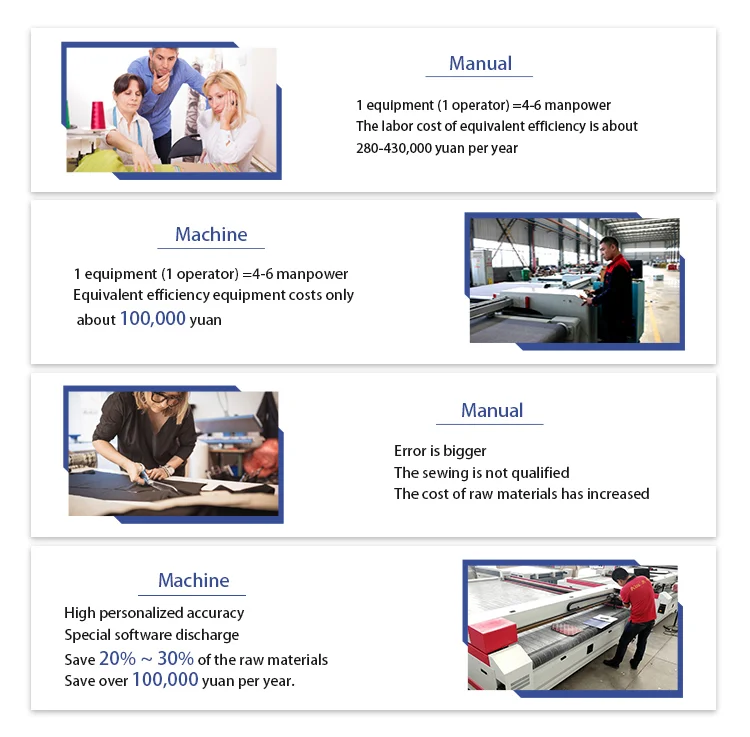

Hand and machine cutting compare

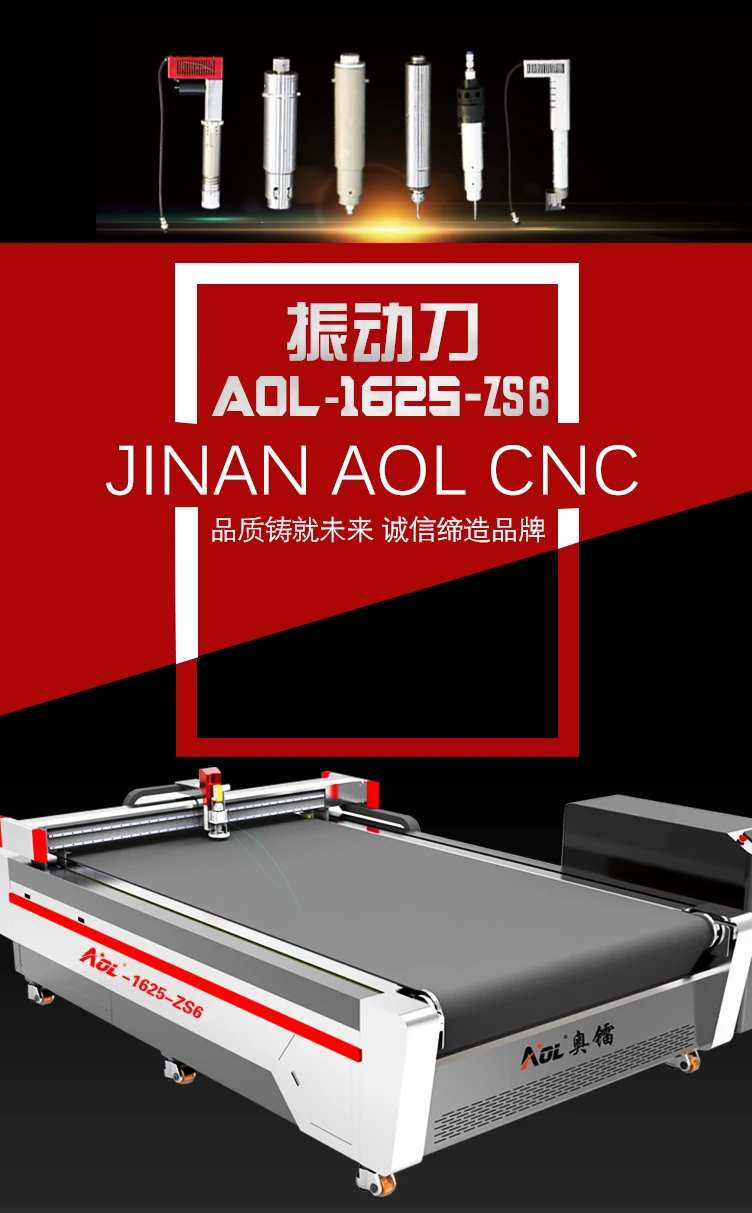

Foam and sound insulation foam knife cutting machine

Model	AOL-1390/AOL-1625/AOL-2125/AOL-2235
Working area	1300×900mm/1600×2500mm/2100×2500mm /2200×3500mm
Control system	Zhongrui
Maximum cutting speed	1400mm/s(according to different cutting materials)
Precision	±0.01mm
Cutting thickness	≤22mm(according to different cutting materials)
Working table	Flat table/Automatic feeding table
Cutting materials	All kinds of flexible materials,Sponge composite leather,fabric,PVC,glass fiber,silicon,rubber,carbon fiber,cardboard,KT board,PE,carpet,gasket,ABS and so on
Transmission system	Imported(Digital servo motor,square linear guide and belt,ball scre w)
Voltage	220V±10%, 50Hz/60Hz
Vacuum pump	9KW
Graphic format supported	DST, PLT, BMP, DXF, DWG, AI, LAS, etc.

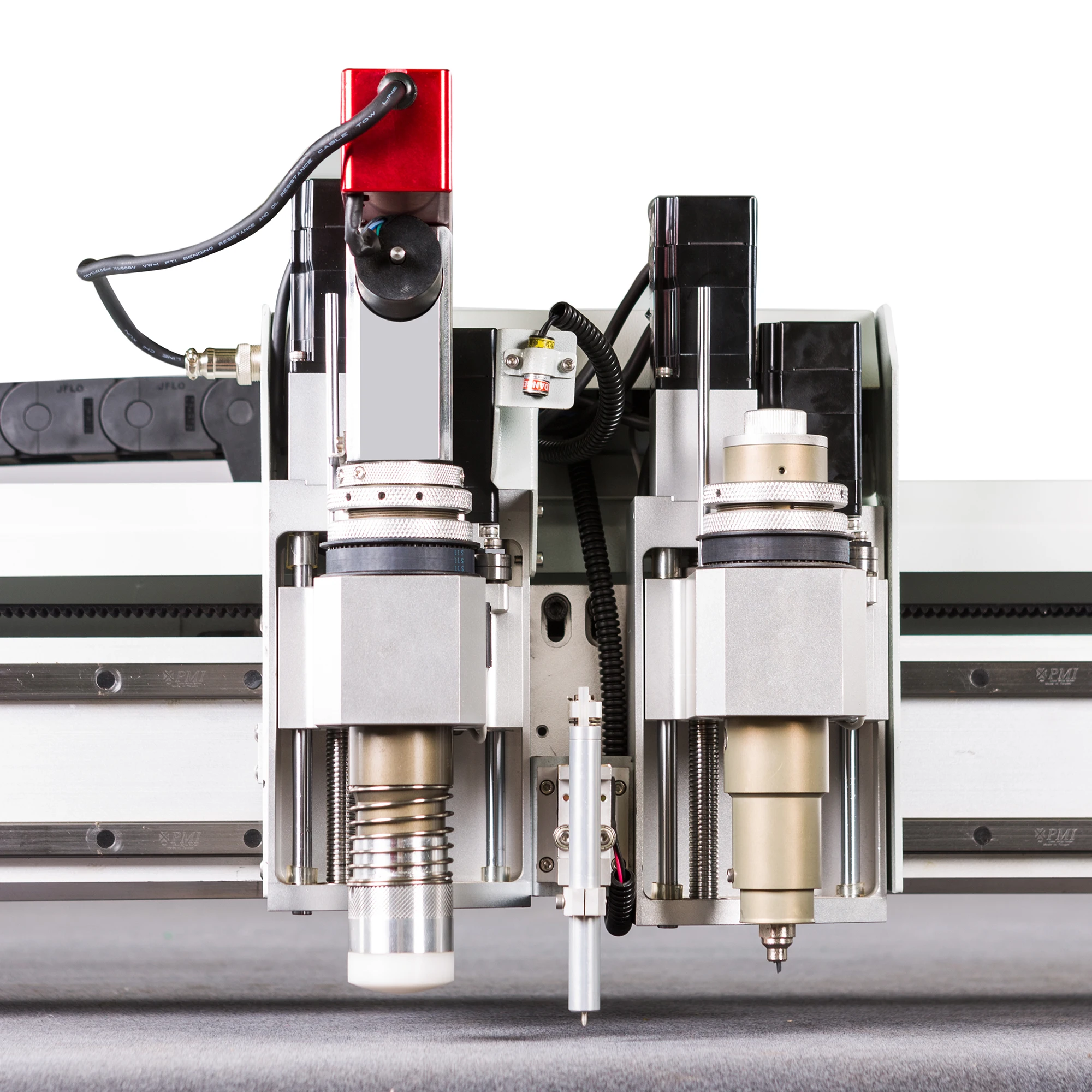

Multifunctional head	Swiss imported knife:oscillating knife,rotary knife,kisscut,punching,V-cut,Milling cut
Machine Size	according to different model

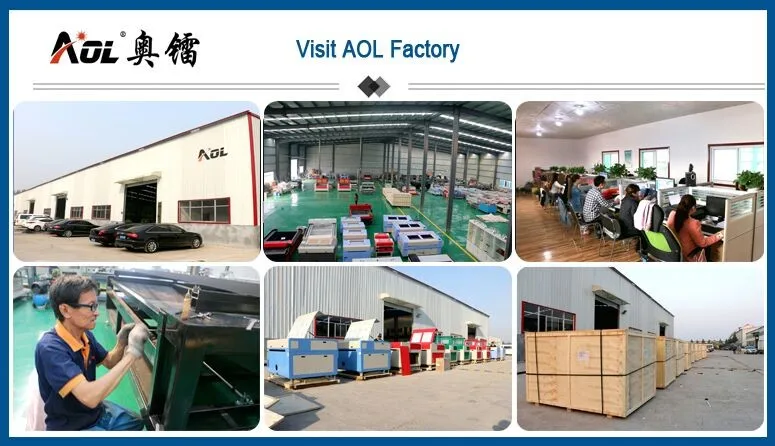

Company Information

Jinan AOL CNC Equipment Co.,Ltd is a famous CNC equipment factory located in Jinan, Shandong province, which found in 2005, has more than 10 years machine production experience. AOL mainly produce Laser Engraving Machine, Laser Cutting Machine, Laser Marking Machine, Knife Cutting Machine, CNC Router, etc. We as a high-tech enterprise, engaged in research, manufacture and sell the laser machine, CNC router and relevant advertisement products.

AOL has gained CE certificate, FDA and ISO certificate. Company successfully produce AOL series products of more than 50 sorts, which enjoy good reputation and support. Excellent quality and fast service makes our products spread all over the world, such as Europe, Middle east, America, and South Asian.

Warmly welcome customers from all over the world!

Packaging & Shipping

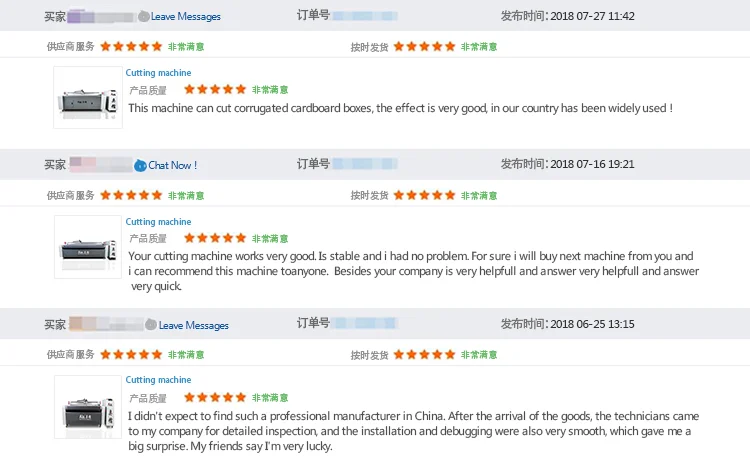

Customer high praise

Certification

Our Services

One-stop services	We have enough supply for your purchase
Bfore-After services	Our sales team, R & D department, production department ,Aftermarket agency will provide you service,free help debug and maintenance machines
Payment term	L/C, T/T, Western Union, MoneyGram,and other
Delivery time	Receipt of the deposit, delivery within 7 days
Customization	You can tell us your needs, we will offer you exclusive services
