Wholesale 8 port poe switch 100M Reverse RPOE Switch for IP Camera details
Brand Name:HDV/OEM;Certification:ce,RoHS,ISO9001/CE/FCC;
Port:Shenzhen;PoE Standard:IEEE STD. 802.3 10BASE T 10Mbps,Half/Full Duplex;
Storage environment:0℃ to 75℃;Package Preview:;
Communication Mode:Full-Duplex & Half-Duplex;Weight:0.45kg;
Function:POE,VLAN Support;Transmission Rate:10/100Mbps;
Switch Capacity:100M;Place of Origin:Guangdong China;
Downlink:7*10/100 Base-Reverse POE Ports;Packaging Detail:one piece per box;
Ports:≤ 8;Power consumption:5 Watt (Poe injector) / 2 Watt (Switch);
Uplink Interfaces:1*10/100 Base T Data Uplink Port;Dimensions ( L x W x H):125mm*70mm*25mm;
Products Status:Stock;Supply Ability:3000 Piece/Pieces per Week;
Product Name:RPOE 7*10/100M+1*100M 12V2A out;Warranty:1 Year;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Operating Temperature:0℃ to 50℃;
Model Number:RPOE-100M-8ports;

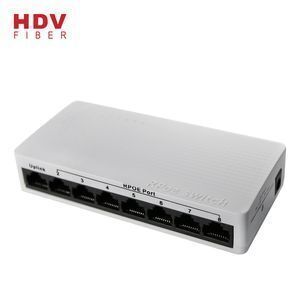

Wholesale 8 port poe switch 100M Reverse RPOE Switch for IP Camera

PRODUCT INTRODUCTION:



RPOE switch has intelligent device Power management features solving a major problem of powering  the device for internet service provider. This switch can be powered using remote power from customer using specially designed POE injector or any standard POE injector(24v DC,0.75amp).This eliminates the needs of arranging power at building top (ups not require/No need to pay more money to customer or society).This saves lot of money of ISPs and improves uninterrupted service to the customer.



PRODUCT FEATURE:



REVERSE POE TECHNOLOGY:8 Port 10/100 Reverse POE switch which has latest generation of fast Ethernet reverse POE switching technology. It contains 7*10/100 base T Reverse Poe ports (RPOE),1*10/100 Base date Uplink Port&12V DC out for Powering ONU.

Supports Auto-Negotiation: Each of the ports automatically detect whether connected network devices are running at 10Mbps or 100Mbps and half-duplex or full-duplex mode, and adjusts the speed and mode accordingly ensuring easy and hassle-free operation.

Supports Non-blocking Wire Speed: The switch forwards and receives traffic seamlessly with its Non-blocking wire- speed. Every port of the Switch supports speeds up to 200Mbps in full-duplex mode simultaneously, providing full wire speed to connected devices and allowing you to run a high speed network smoothly.

Cascading support: switches can be cascaded for more users per Building (Up to 1 Main+3 switches )

Port base Isolation u/Hardware VLAN: The feature of Port Isolation is implemented in this unit where in the Ethernet Date of the Uplink Port can be transferred to any of the Downlink ports but the individual Downlink ports cannot communicate with each other.

Over voltage Protection: Over voltage Protection is provided on each date port to eliminate damage due to connection of higher voltage(Higher than 24V DC. Up to 80V DC). By mistake if user connect more than 24V POE injector then switch will goes on power off mode and will start working again once this high voltage source is removed.

Over current Protection: We have provided over current protection on each port to prevent damage to the switch in case of high current flowing due to any reason. This is provided using Resettable Fuse to facilitate easy maintenance and avoiding frequent change of blown fuse.



PRODUCT APPLICATION:



7*10/100 Base T Reverse POE Ports(RPOE) & 1*10/100 Base T Uplink Port & 12V DC Power out for Powering ONU





PRODUCT SPECIFICTAION:



+

Product

RPOE 7*10/100M+1*100M 12V2A out

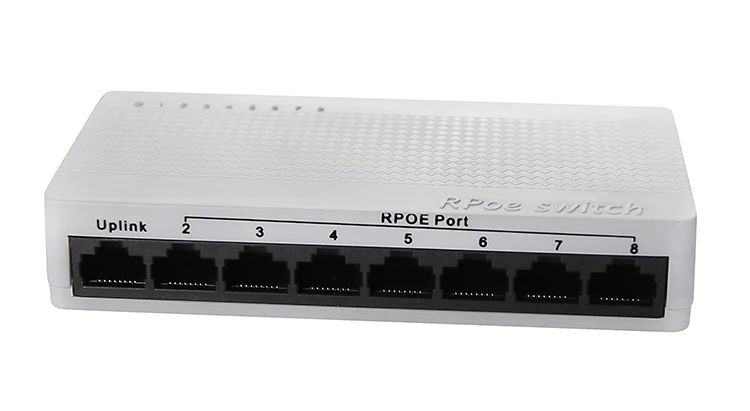

Ethernet Connector

RJ45 Jacks(8 Ports)10/100Base-TX with Auto-MDIX



Uplink

1*10/100 Base T Data Uplink Port(port 1)



Downlink

7*10/100 Base-Reverse POE Ports(Port 2to 8)Data + Power in



standards

IEEE STD. 802.3 10BASE T 10Mbps,Half/Full Duplex



IEEE STD. 802.3U 100BASE-TX,10/100Mbps,Half/Full Duplex



IEEE STD.802.3X FLOW CONTROL AND BACK PRESSURE



IEEE STD.802.3AZ Energy Efficient Ethernet



Protocols

CSMA/CD



Transmission Method

Store and forward



MAC ADDRESS

Support 1k MAC address



Packet Buffer

Embedded 448K bits packet buffer



Maximum Forwarding Packet Length

1552/1536 bytes option



Filtering/Forwarding Rates

100Mbps Port – 148800pps



10Mbps Port – 14880pps



Network Cable

4-pair UTP/STP Cat 5 cable



LEDs

Link/Activity per Ethernet port



Power: On/Off for switch



Power Over Ethernet injector: Power
Supply(IN)

Power over Ethernet 24V @ 18W on SPARE pair ( to supply power to the HDV switch as well as a compatible POE device(e.g. CPE)




No. of Ethernet Ports that can Power
On the Switch & ONU

Any one /all of the seven Downlink Ports




Power Over Ethernet

Power over Ethernet injector on Four Pair Cable

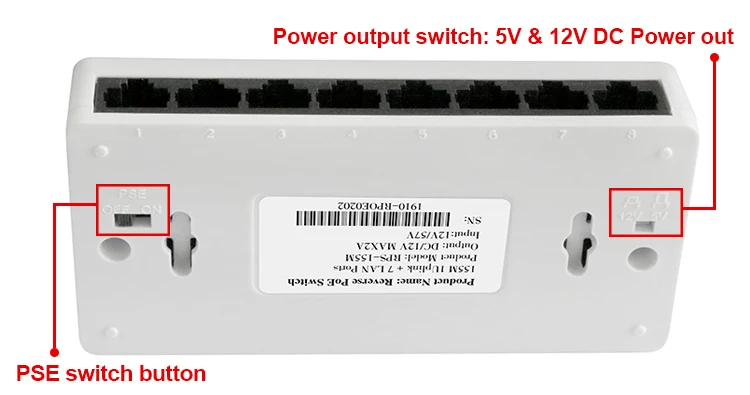

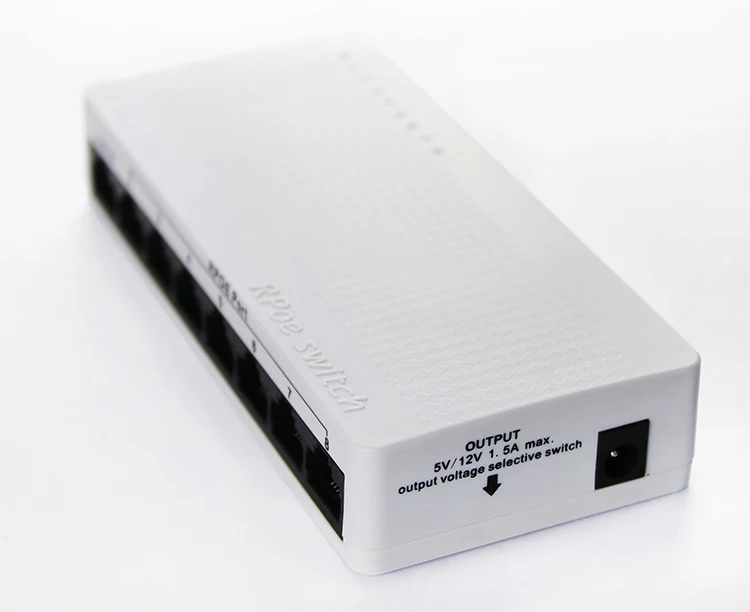

DC Out

12V/2A DC OUT THROUGH DC jack for powering other Device like ONU



Ethernet Devices that can be powered

Single



CAT-5 Cable Date Lines

Pair 1:Pins 1/2,Pair 2:Pins3/6



CAT-5 Cable Power Lines

+VDC: Pins 4/5,-VDC:Pins 7/8



Power consumption

5 Watt (Poe injector) / 2 Watt (Switch)



Operating Temperature

0℃to 50℃



Storage environment

0℃ to 75℃



Operating Humidity

20% to 95% (non-condensing)



Dimension of Switch

125mm*70mm*25mm



Weight of Switch

0.45KG
