Factory Oem Odm card rail 10/100m household 5/8/16/24 port level network industrial Ethernet switch 16 ports
- 143.00 2 - 99 pieces
- 140.00 100 - 299 pieces
- 139.00 >=300 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Transmission rate: | 10/100Mbps | Number of ports: | 16 ports |
| brand: | Shepherd | Port type: | electrical interface |
| Downlink port rate: | 100M | Applicable network: | small and medium network |
| Supply capacity: | 100000 pieces per month | Origin: | Hubei, China |
| model: | ES216 | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| Uplink port rate: | 100M | Package preview: | |
| weight: | 1.5 kg | Applicable scene: | access switch |
| port: | 16 | Network management type: | Non-network management |
| Heat dissipation method: | Natural cooling | communication method: | Full Duplex and Half Duplex |
| Packaging Details: | standard carton | Private Mold: | Yes |
| product name: | Industrial Ethernet switch 16 ports | Switch capacity: | 8Gbps |
| product status: | in stock | Function: | VLAN support |
Product Description
Specification | ||
Model | ES216 | |
Standards and Protocols | ΙEE 802.3, ΙEE 802.3u. IEEE 802.3x | |

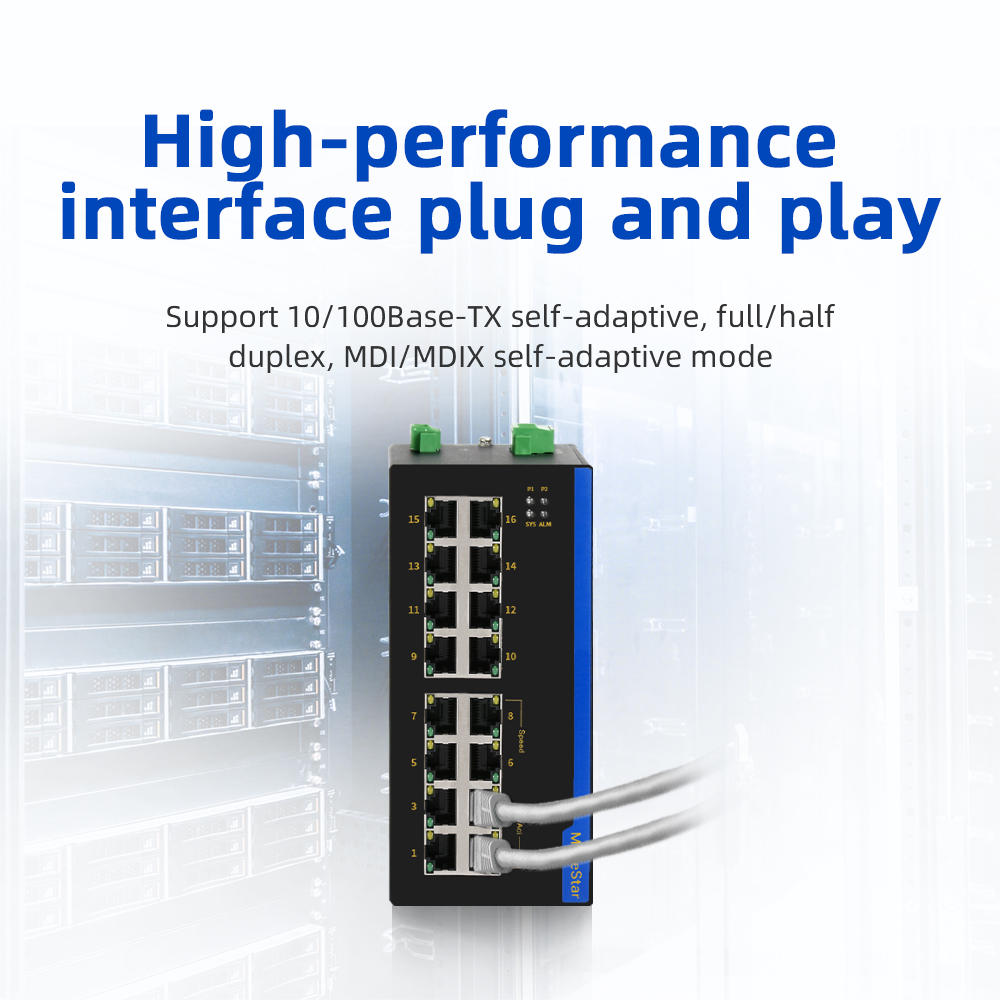

R.J45 interface | 16 10Base-T/100Base-TX | |

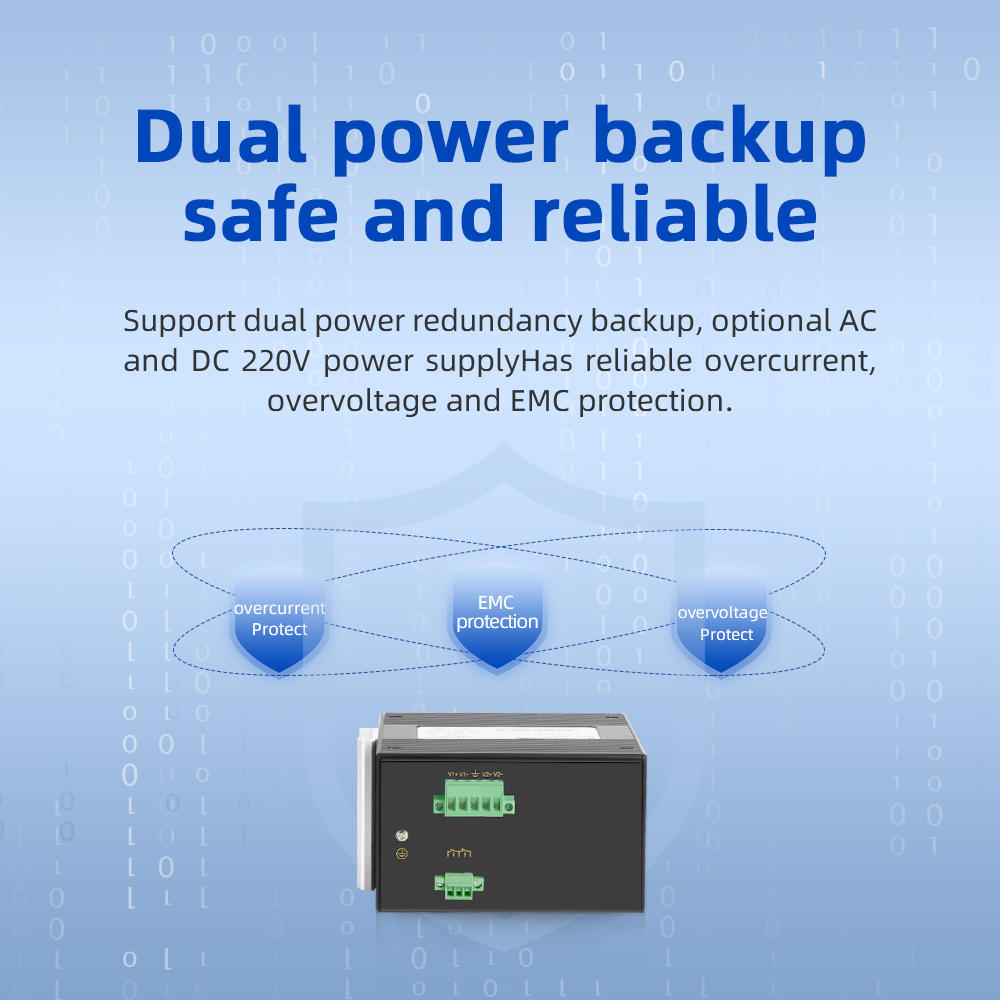

power supply | DC: DC9-60V (dual power supply redundancy) AC: AC85-264V/DC110-370V (single power supply) | |
energy consumption | <7W(@24VDC) | |
switch mode | store and forward | |
Backplane Bandwidth | 8.8Gbps | |
Static index | EN61000-4-2 Anti-static (ESD) level 4: =8kV contact discharge, =15kV air discharge | |

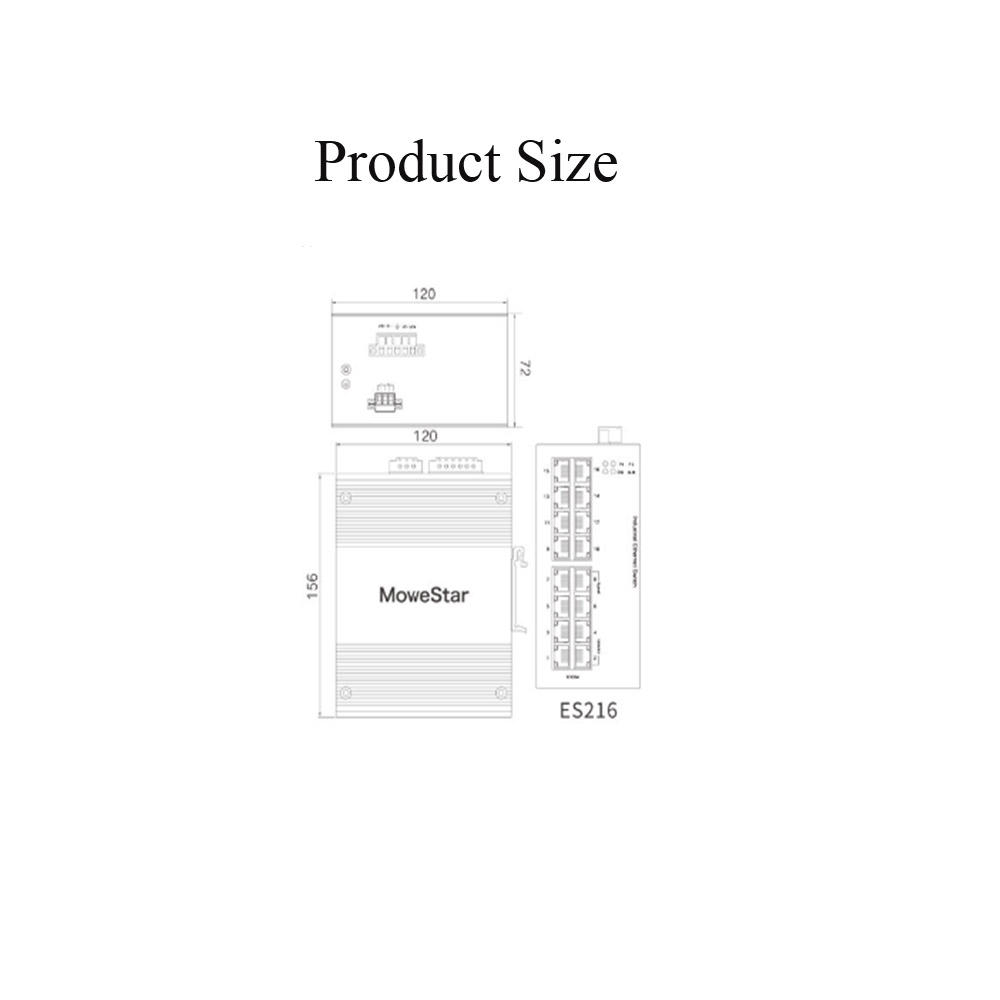

aspect | 156mmx72mmx120mm (excluding terminal blocks and optical interface components) | |
Operating temperature | -40℃~+85℃ | |
certified | CCC , CE , FCC , RoHS certification | |

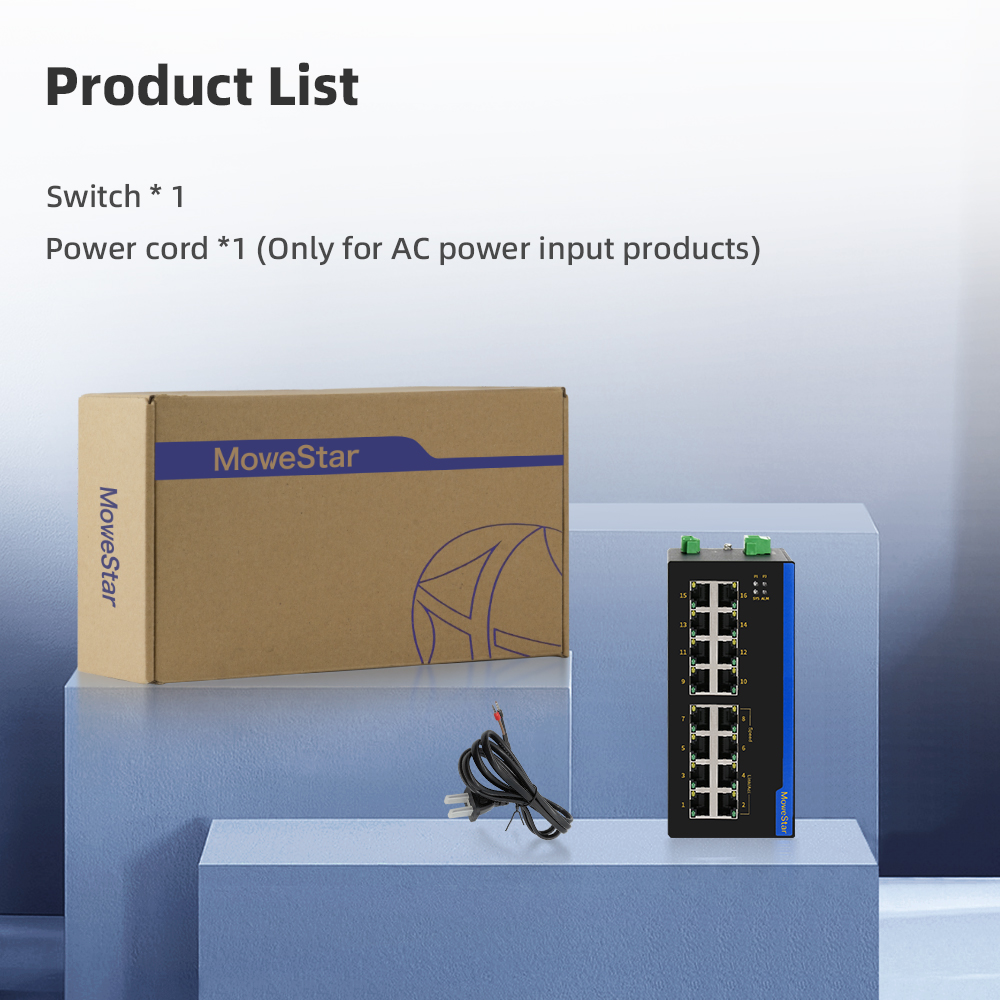

packing list | Network Switch*1 Power Cord*1 User Manual*1 | |
feature:
1 * 10/100BaseT(X) (RJ45 connector)

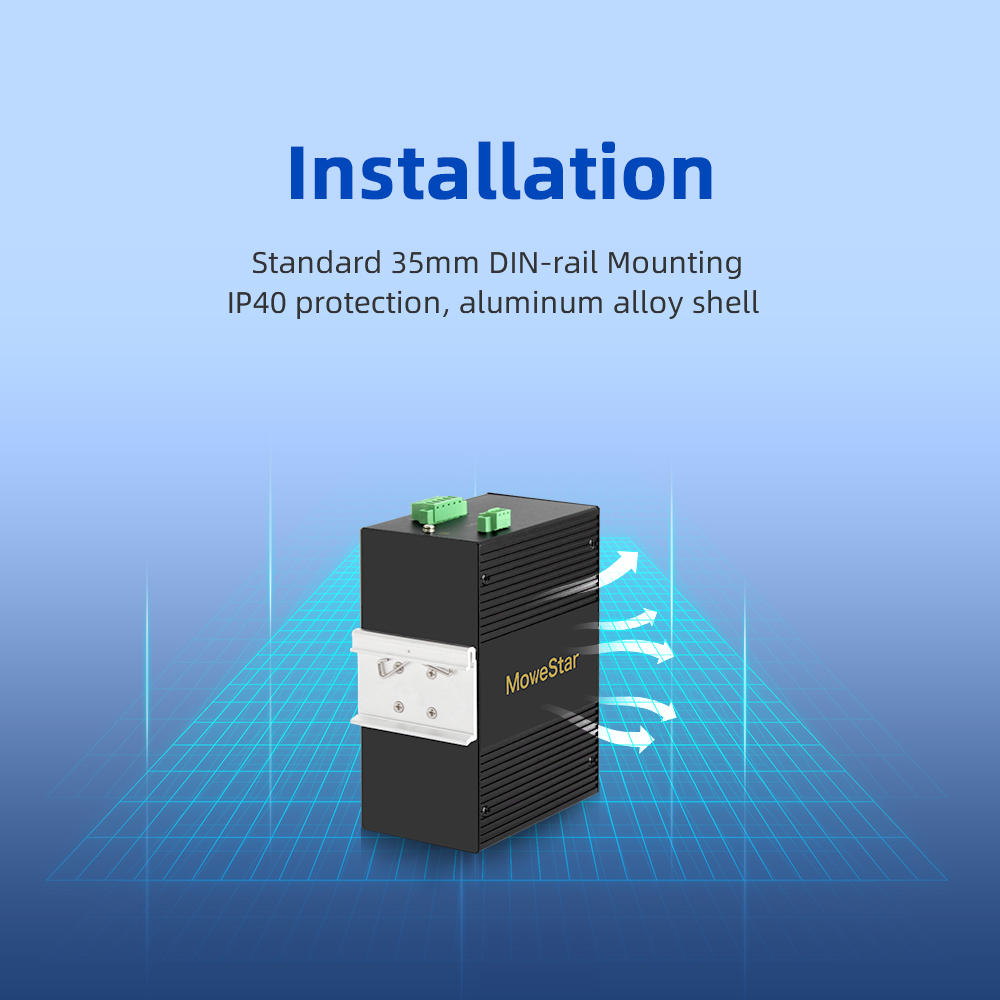

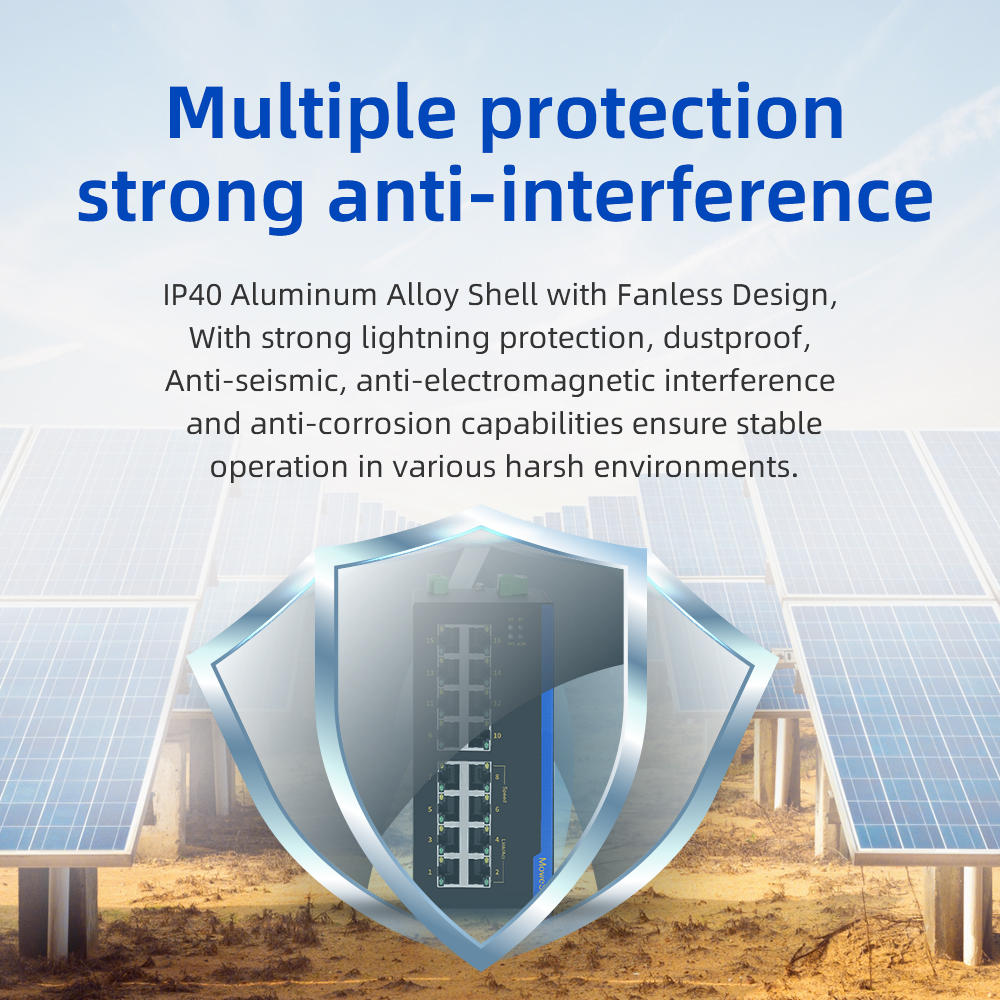

2* IP40 fanless design aluminum alloy case
3* Support power-down state reply alarm output
4* Operating temperature -40 to 85°C
5* Meet the harsh industrial environment
2* IP40 fanless design aluminum alloy case
3* Support power-down state reply alarm output
4* Operating temperature -40 to 85°C
5* Meet the harsh industrial environment

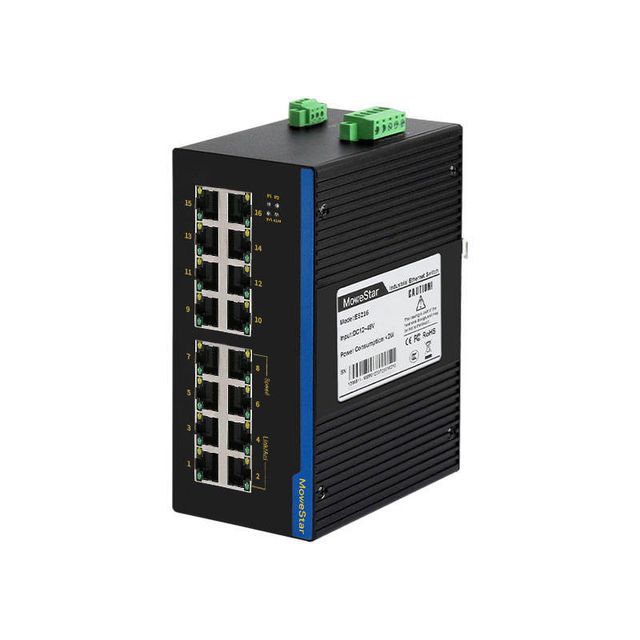

Product Image
