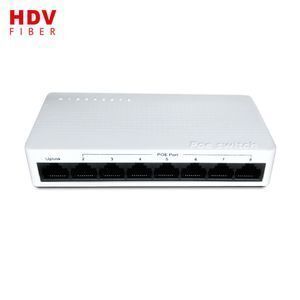

8 Port 1000 Base Reverse Power Supply RPOE POE Switch

Supplier: Shenzhen Hdv Photoelectron Technology Ltd.
Region: Guangdong, China
Contact: Mr Jon Wu
Price: $8.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Operating Temperature:	0℃ to 50℃;
Function:	POE;	Storage environment:	0℃ to 75℃;
Weight:	0.45kg;	Warranty:	2 Years;
Packaging Detail:	one piece per box;	Downlink:	7*10/100/1000 Base-Reverse POE Ports;
Ports:	≤ 8;	Certification:	CE/FCC/RoHs;
Uplink Interfaces:	1*10/100/1000 Base T Data Uplink Port;	Brand Name:	ODM/OEM;
Power out:	5V & 12V DC Power out;	Place of Origin:	Guangdong China;
Dimensions (L x W x H):	125mm70mm25mm;	Package Preview:	;
Communication Mode:	Full-Duplex & Half-Duplex;	Products Status:	Stock;
Supply Ability:	3000.0 Piece/Pieces per Week;	Transmission Rate:	10/100/1000Mbps;
Model Number:	RPOE-1000M-8ports;	Power consumption:	5 Watt (Poe injector) / 2 Watt (Switch);
Port:	shenzhen;	PoE Standard:	IEEE STD. 802.3 10BASE T 10Mbps,Half/Full Duplex;

8 Port 1000 Base Reverse Power Supply RPOE POE Switch

PRODUCT INTRODUCTION:

RPOE switch has intelligent device Power management features solving a major problem of powering the device for internet service provider. This switch can be powered using remote power from customer using specially designed POE injector or any standard POE injector(24v DC,0.75amp).This eliminates the needs of arranging power at building top (ups not require/No need to pay more money to customer or society).This saves lot of money of ISPs and improves uninterrupted service to the customer.

PRODUCT FEATURE:

REVERSE POE TECHNOLOGY:7Port 10/100+ 1G Reverse POE switch which has latest generation of fast Ethernet reverse POE switching technology. It contains 7*10/100 base T Reverse Poe ports (RPOE),1*10/100/1000 Base date Uplink Port&12V DC out for Powering ONU.

Supports Auto-Negotiation: Each of the ports automatically detect whether connected network devices are running at 10Mbps or 100Mbps (Up-link Port is 1000Mbps) and half-duplex or full-duplex mode, and adjusts the speed and mode accordingly ensuring easy and hassle-free operation.

Supports Non-blocking Wire Speed: The switch forwards and receives traffic seamlessly with its Non-blocking wire- speed. Every port of the Switch supports speeds up to 200Mbps(Up-link Port is 2000Mbps) in full-duplex mode simultaneously, providing full wire speed to connected devices and allowing you to run a high speed network smoothly.

Cascading support: switches can be cascaded for more users per Building (Up to 1 Main+3 switches )

Port base Isolation u/Hardware VLAN: The feature of Port Isolation is implemented in this unit where in the Ethernet Date of the Uplink Port can be transferred to any of the Downlink ports but the individual Downlink ports cannot communicate with each other.

Over voltage Protection: Over voltage Protection is provided on each date port to eliminate damage due to connection of higher voltage(Higher than 24V DC. Up to 30V DC). By mistake if user connect more than 24V POE injector then switch will goes on power off mode and will start working again once this high voltage source is removed.

Over current Protection: We have provided over current protection on each port to prevent damage to the switch in case of high current flowing due to any reason. This is provided using Resettable Fuse to facilitate easy maintenance and avoiding frequent change of blown fuse.

PRODUCT APPLICATION:

7*10/100 Base T Reverse POE Ports(RPOE) & 1*10/100/1000 Base T Uplink Port & 12V DC Power out for Powering ONU

PRODUCT SPECIFICTAION:

Product	*RPOE 710/100M+11000M 12V2A out*
Ethernet Connector	RJ45 Jacks(8 Ports)10/100Base-TX with Auto-MDIX
Uplink	1*10/100/1000M Base T Data Uplink Port(port 1)
Downlink	7*10/100 Base-Reverse POE Ports(Port 2to 8)Data + Power in
standards	IEEE STD. 802.3 10BASE T 10Mbps,Half/Full Duplex
	IEEE STD. 802.3U 100BASE-TX,10/100Mbps,Half/Full Duplex
	IEEE STD.802.3X FLOW CONTROL AND BACK PRESSURE
	IEEE STD.802.3AZ Energy Efficient Ethernet
Protocols	CSMA/CD
Transmission Method	Store and forward
MAC ADDRESS	Support 8k MAC address
Packet Buffer
Maximum Forwarding Packet Length	Supports 9216-byte jumbo packet length forwarding at wire speed
Filtering/Forwarding Rates	1000Mbps Port – 148800pps
	100Mbps Port – 14880pps
	10Mbps Port – 14880pps
Network Cable	4-pair UTP/STP Cat 5 cable
LEDs	Link/Activity per Ethernet port
LEDs	Power: On/Off for switch
Power Over Ethernet injector: Power Supply(IN)	Power over Ethernet 24V @ 18W on SPARE pair ( to supply power to the HDV switch as well as a compatible POE device(e.g. CPE)
Power Over Ethernet injector: Power Supply(IN)
No. of Ethernet Ports that can Power On the Switch & ONU	Any one /all of the seven Downlink Ports
No. of Ethernet Ports that can Power On the Switch & ONU	Any one /all of the seven Downlink Ports
Power Over Ethernet	Power over Ethernet injector on Four Pair Cable
DC Out	12V/2A DC OUT THROUGH DC jack for powering other Device like ONU
Ethernet Devices that can be powered	Single
CAT-5 Cable Date Lines	Pair 1:Pins 1/2,Pair 2:Pins3/6
CAT-5 Cable Power Lines	+VDC: Pins 4/5,-VDC:Pins 7/8
Power consumption	5 Watt (Poe injector) / 2 Watt (Switch)
Operating Temperature	0℃to 50℃
Storage environment	0℃ to 75℃
Operating Humidity	20% to 95% (non-condensing)
Dimension of Switch	125mm70mm25mm
Weight of Switch	0.45KG
