Automatic Waste Tyre Recycling Machine To Rubber Powder / Used Tire Recycling / Waste Tyre Processling Line

Rubber Powder Making Machinery / Crumb Rubber Machinery

 Application:

Semi-auto waste tyre recycling production line is used to make the waste tyres to rubber power and separate the fiber and steel wire, to achieve the recycling.

Structure:

You can according to the below data of the 3 type tyre crusher to chose:

1).XKP400 rubber crusher: Output: 4500-6000kg/24 hour for about 20 mesh granule.

2).XKP450 rubber crusher: Output :7000-12000kg/24 hour for about 20 mesh granule.

3).XKP560 rubber crusher: Output : 10000-17000kg/24 hour for about 20 mesh granule.

Features:

1), iron/steel removing ratio>99.5%, fiber removing ratio>98%

2),adopt automatic control system for whole line, reduce labor cost;

3),no sewage and waste gas discharge, environment protection.

4), available capacity range of our tyre recycling lines at present: 400~3000kg/h

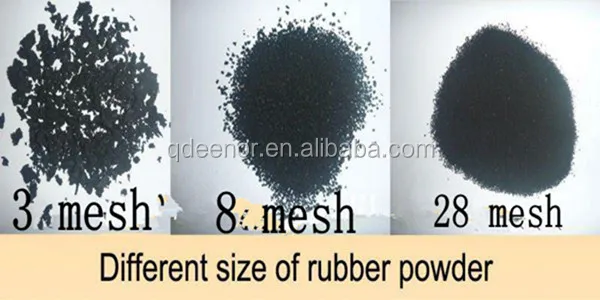

5), available finial rubber powder size: 20~120mesh.

Pictures:

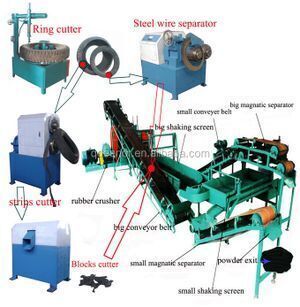

 1. ring cutter: To cut the two sides of tyre which has steel wire ring (the steel wire ring is the main supportance for the tyre).

2. steel wire separator: To separator the tyre sides steel wire ring and rubber which is cut from the ring cutter.

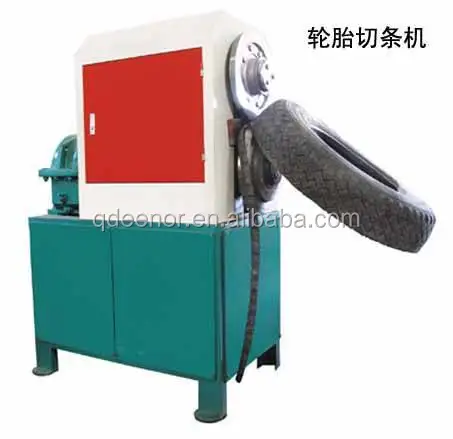

3. stripe cutter: Make the whole tyre which is cutted two sides from ring cutter to stripes.

4. rim cutter: To make the stripe to block.

5. tyre crusher: Milling the rubber block to power.

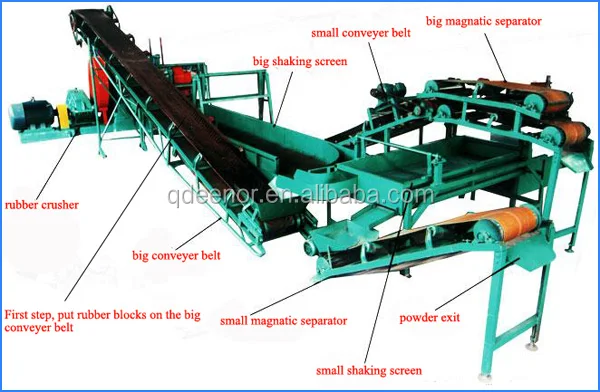

6. conveyor belt, oscillating screen, magnetic roller: To separator the iron power and rubber power and screening the rubber power, make the big rubber power re-milling.

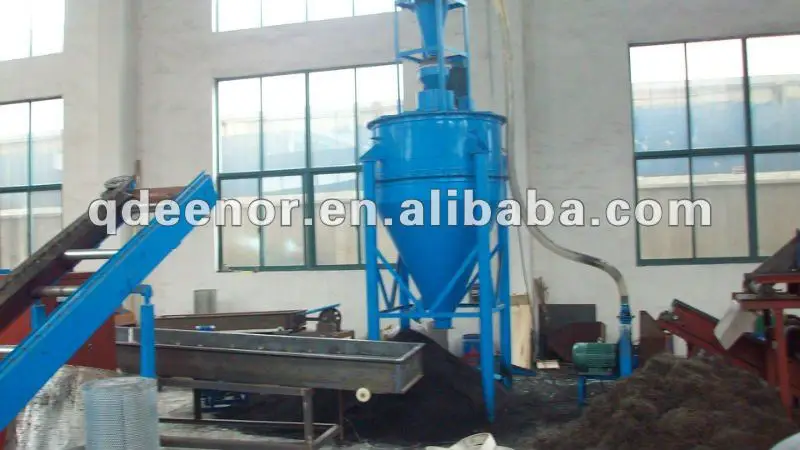

7. fiber separator: separator the fiber from rubber power.

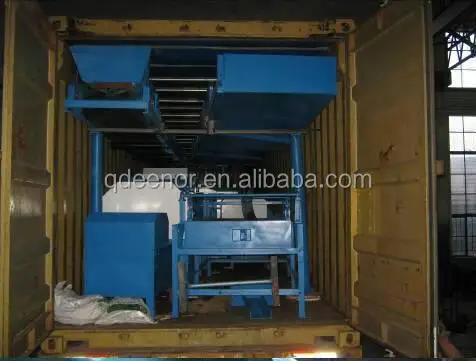

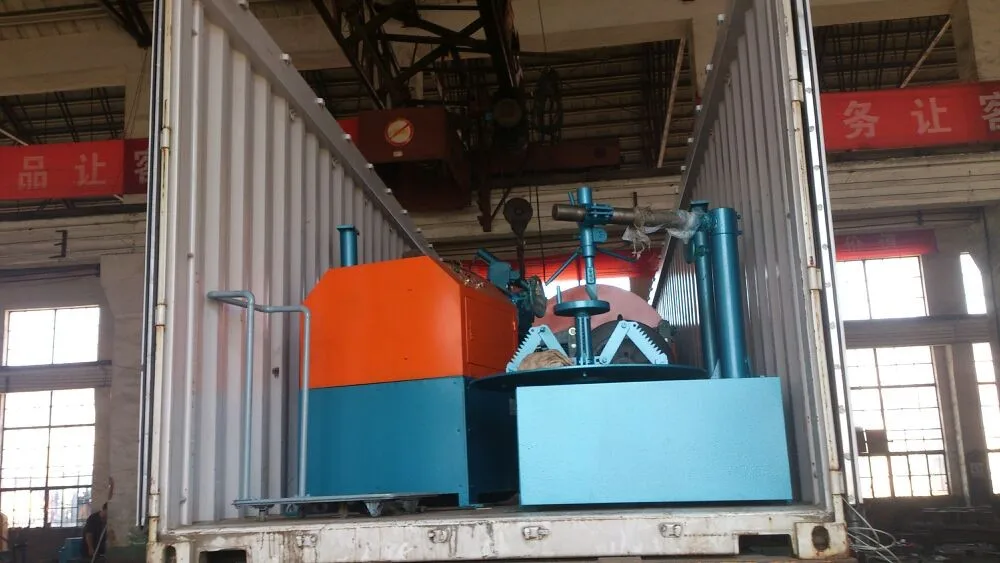

Packing:

We are professional rubber machine manufacturer with 10 years experiences in China. All products have been certified by the State Bureau of Technical Supervision, and have been exported to South Asia, mid East, East Europe, South and North America  Africa, Australia and so on.
