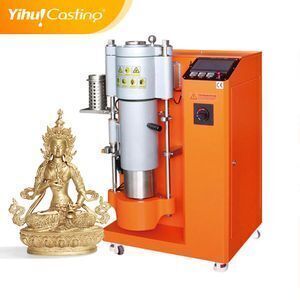

Lost wax vacuum pressure jewelry gold casting machine, clean casting jewelry for ring casting

Product details
Warranty:1 Year;After-sales Service Provided:Engineers available to service machinery overseas;
Brand Name:Yihui;Place of Origin:Guangdong China;
Machine Type:Casting machine;Local Service Location:Germany,Brazil,Saudi Arabia,Indonesia,India,Thailand,UAE;
Casting equipment:Casting machine;Showroom Location:Germany,Brazil,Saudi Arabia,Indonesia,India,Thailand,UAE;
Packaging Detail:carton with pearl cotton and foam inside,while special package could be made upon customers' specific requirement.;Dimension(L*W*H):750*655*1230mm;
Key Selling Points:Casting;Weight:200KG,200kg;
Port:Guangzhou;Condition:New,New;
Power:8kw;Voltage:380V,380V;
Applicable Industries:Manufacturing Plant,Home Use,Retail,Casting;Supply Ability:50 Set/Sets per Month;
Certification:ISO;After Warranty Service:Video technical support,Online support;
Payment Terms:T/T,Western Union;













Model no:    Z.M.CM.DVC-Ⅱ

Casting Principle:  vacuum pressure gravity casting
Power supply:  380V 3Phase 50HZ/60HZAbnormal alarm system:Self-diagnosis LED Display
Metal:   Gold, Silver,CopperAmbient temperature:  5℃-40℃
Capacity:  2.5KGVacuum Setting:15L vacuum pump External
Temperature:   0℃-1300℃Water Supply:3P water chiller(keep water temp (10℃-30℃)
Pressure for Casting:   Max0.2MPa     Machine Dimension:750×655×1230mm
Cooling System:  Water cooling

Net Weight:230KG

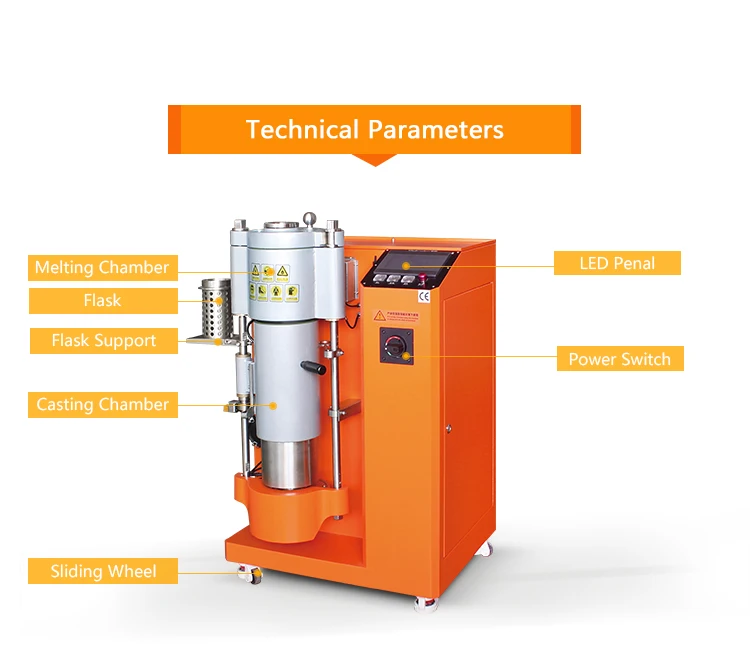

1. The core components are using the SMC,Fuji,Schneider etc famous brand to ensure the machine quality



2. Reasonable Design,match with the flask support, convenient for continuous working



3.Touch Screen with both English/Chinese version; vacuum , and pressure etc are adjustable according to different casting piece



4. You can set as many as 1000 sets casting parameters to satisfying different casting piece



5. Isolated for water and power, to reduce machine failure



6. Machine Dimension is ergonomic, and convenient for handle it.



7. Germany vacuum pump and cooling system for option



8. Machine has been CE Certificated.



9. Suitable for flask with or without flange,lower conversion costs
