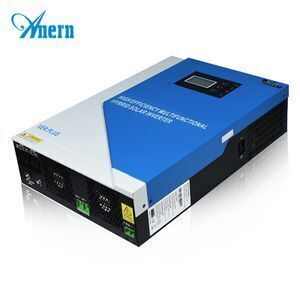

Anern hybrid solar power inverter

Supplier: Guangzhou Anern Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Celine Huang
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

DC Loads Rated Current:	20-30A;	Output waveform:	Pure Sine Wave Output;
Packaging Detail:	standard export package suitable for long seavoyage and tough handling;	DC Loads Rated Voltage:	80;
Package Preview:	;	Inverter Output Frequency:	50Hz/60Hz;
Size:	100300440 mm;	Type:	High Frequency,DC/DC Converters,DC/AC Inverters;
Efficiency:	>98%;	POWER:	3.5KW;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alipay,PayPal;	Output Voltage:	110V/120V/220V/230V;
Port:	Guangzhou;	Output Type:	Single,Multiple;
Supply Ability:	50000 Piece/Pieces per Month;	Model Number:	AN-SCI02-PULS;
Output Current:	100A;	Place of Origin:	Guangdong China;
Name:	solar power inverter;	Certificate:	CE, ROHS;
Weight:	9 kgs/10 kgs;	Output Frequency:	50Hz/60Hz;
Control Method:	MPPT;	Brand Name:	Anern;

Anern hybrid solar power inverter

Advantages

Feature of solar inverter:

1. high efficiency pure sine wave inverter(PF=1);
2. wide PV input range(120Vdc--500Vdc)100A MPPT SCC;
3. intelligent 3 stage 80A AC battery charger.
4. Surges to 2X continuous power for 5 seconds for motor loads.
5. Intelligent functionality enables utility and solar input prioritization.
6. Wide utility input range(90Vac--280Vac)for unreliable grid even
in the most challenging environments.
7. Field serviceable with replacement boards and spare parts.
8. Monitor, troubleshoot, or communication with USB/RS232.
9. System configures quickly into compact, wall-mounted system.

Product Description

Description of solar inverter:

The AN-SCI02 series all in one solar system is the perfect go-to solution for off-grid, backup power for homes, small business, and it also delivers a value added. Inverter running without batteries also can help to reduce cost in solar power system..

Model	SCI02-3200	SCI02-5000
RATED POWER	3200W	5000W
INPUT
Voltage	230 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (PV Mode)	230VAC ± 5%
Surge Power	6000VA	10000VA
Efficiency (Peak) PV to INV.	97%
Efficiency (Peak) Battery to INV.	94%
Waveform	Pure sine wave
SOLAR
Maximum PV Array Power	4000 W	4000 W
MPPT Range @ Operating Voltage	120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum Efficiency	98%
