0.06-15KW Rated Power High Precise Low Price Motor Reducer Planetary Gearbox

Click here to contact

Product details

Surface hardness of gears:	HRC58-62;	Efficiency:	98%;
Input Speed:	2000-6000rpm;	Place of Origin:	Zhejiang China;
Output Torque:	29-180Nm;	Brand of oil seal:	SKF;
Housing material:	42CrMo;	Output Speed:	14-280rpm;
Brand Name:	WUMA;	Packaging Detail:	standard export packing and wood pallets packing;
Gearing Arrangement:	Planetary;	Selling Units:	Single item;
Single gross weight:	6.0 KG;	Heat treatment:	Carbonize&quencher;
Lubricating oil:	Synthetic Grease;	Input / Output shaft material:	40Cr;
Applicable Industries:	other;	Single package size:	19X13X11 cm;
Gear material:	20CrMnTi;	Machining precision of gears:	6 Grade;
Brand of bearings:	C&U,HRB;

0.06-15KW Rated Power High Precise Low Price Motor Reducer Planetary Gearbox

Product Description

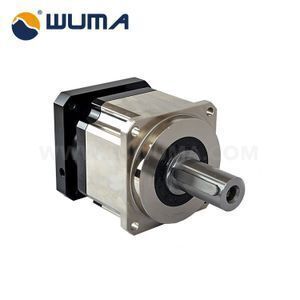

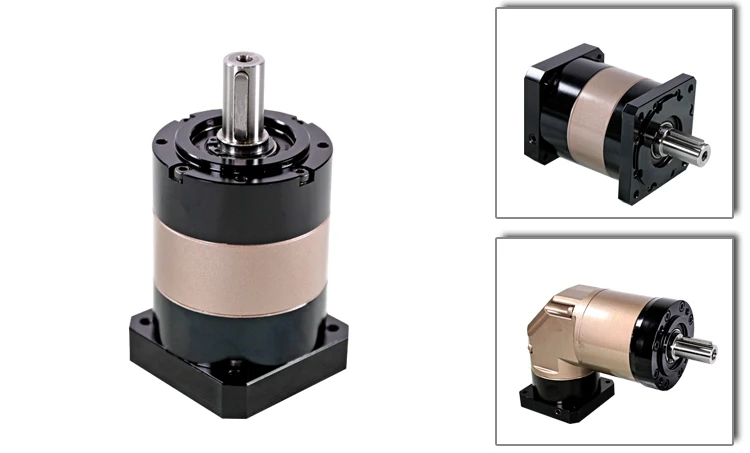

Planetary Gearbox
Efficiency	0.98
Housing material	42CrMo
Gear material	20CrMnTi
Surface hardness of gears	HRC58-62
Input / Output shaft material	40Cr
Machining precision of gears	6 Grade
Lubricating oil	Synthetic Grease
Heat treatment	Carbonize&quencher
Brand of bearings	C&U,HRB
Brand of oil seal	SKF
Noise (MAX)	55-70 dB
Temp. rise (MAX)	70℃
Oil Temp. rise (MAX)	40℃
Vibration	≤15μm

Product advantages

Enterprise stregth

certificate

Main products

Global exhibition

FAQ

1. How to choose a gearbox which meets our requirement?

You can refer to our catalogue to choose the gearbox or we can help to choose when you provide

the technical information of required output torque, output speed and motor parameter etc.

2. What information shall we give before placing a purchase order?

a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.

b) Housing color.

c) Purchase quantity.

d) Other special requirements.

3. What industries are your gearboxes being used?

Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,

escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

4. Doyou sell motors?

We have stable motor suppliers who have been coperating with us for a long-time. They can provide motors

with high quality.
