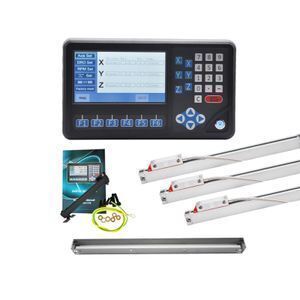

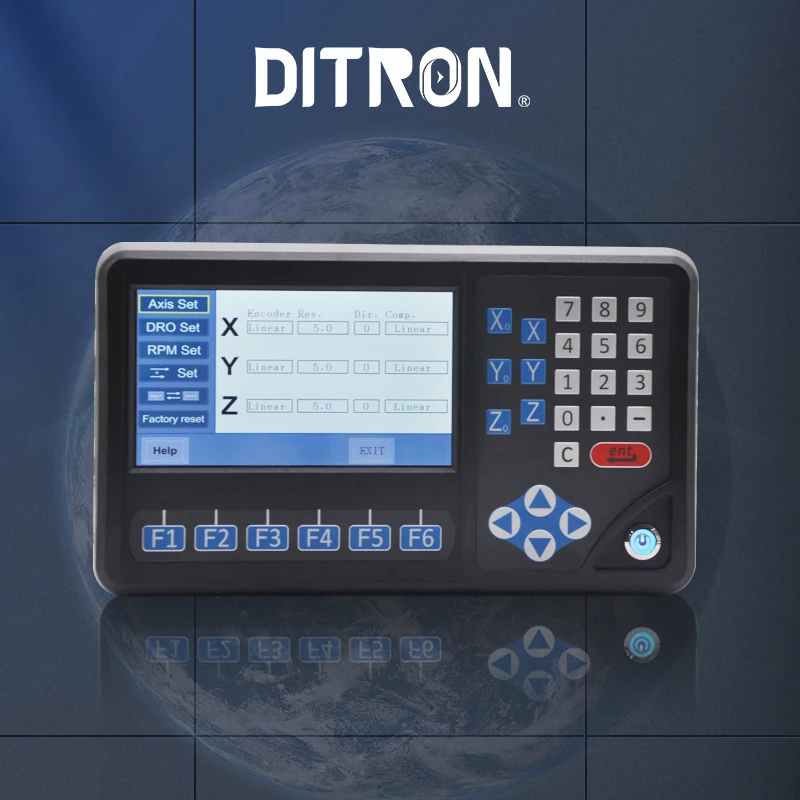

Sino 2 Axis/3 Axis DRO Digital Readout with Large LCD Screen for Lathe Machine /Milling Machine details
Resolution (μm):0.1μm/0.2μm/0.5μm/1μm/2μm/2.5μm/5μm/10μm (to be chosen);Place of Origin:Sichuan China;
Packaging Detail:Carton box;Display Case Size (mm):300X180X75;
Supply Ability:30000 Piece/Pieces per Month;Warranty:12 Months;
Input signal:TTL/RS422;Voltate range:AC 80~260V (50~60HZ);
Display Screen:LCD;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Port:Shanghai.China;Brand Name:Ditron;
Max. Coordinate Axes:1/2/3/4/5;Input frequency:<5MHZ;
Product Description

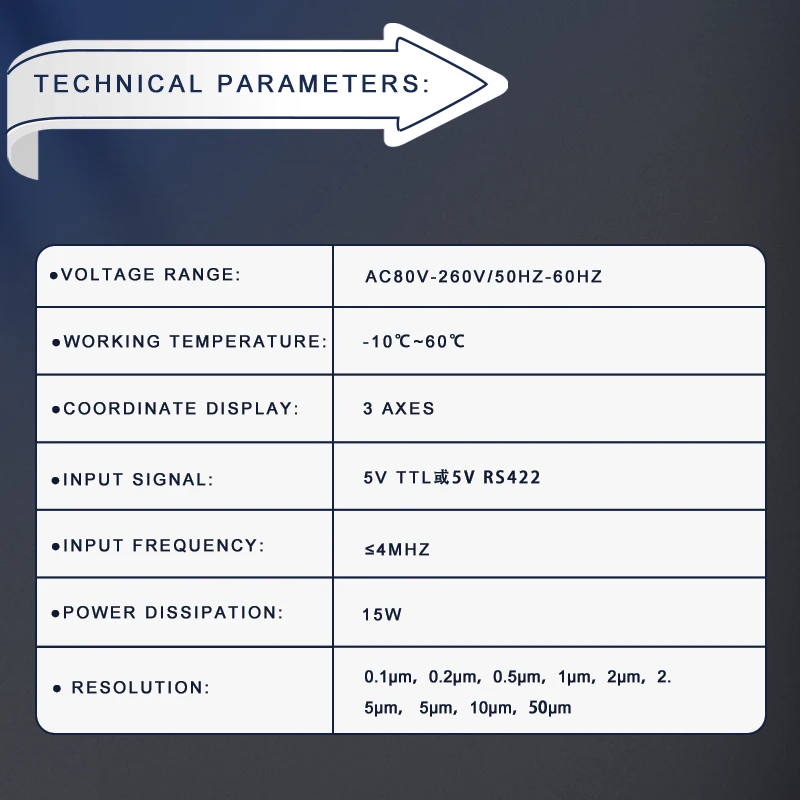

The Technical parameter of DRO-D80

  1) Voltage range: AC 80V-260V/50HZ-60HZ

  2) Power dissipation: 20VA

  3) Coordinate number: 1/2/3

  4) Display: 8 bit display with signed

  5) Times frequency: 4X

  6) Readout box input signal: TTL,EIA-422-A

  7) Input frequency:>100KHZ

  8) Resolution:10um, 5um, 1um, 0.5um, 0.1um

  9) Operating keyboard: light touch buttons

10) Linear scale Grating space: 0.04mm, 0.02mm, 0.01mm, power supply is +5V.the difference between two and four TTL output signal is 90°.

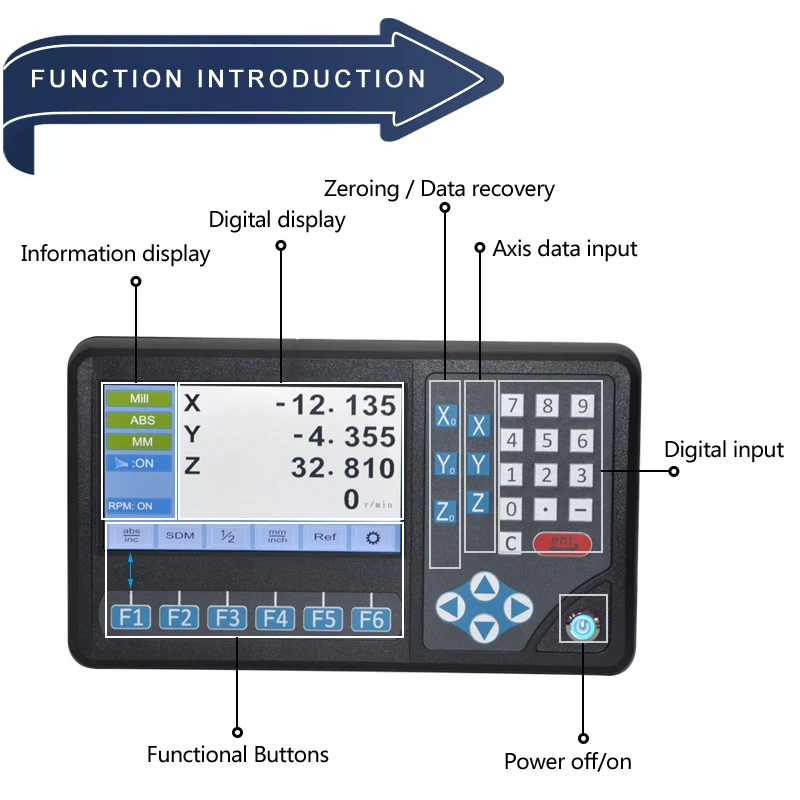

Basic Functions































1)Zeroing, Data Recovery

10)200 sets of SDM Coordinate

2)Input Coordinate

11)Ref Ruler Storage Function

3)Display in Metric British Units

12)Calculator

4)Power Off Memory Function

13)Non-linear Compensation

5)Encoder Selection

14)1/2 Function

6)Resolution Setting

15)Sleeping Function

7)Linear Compensation

Rotational Speed Measurement



8)Counting Direction Selection

RS232

9)ABS/INC Coordinate

1



Special Functions

1)PLD Function

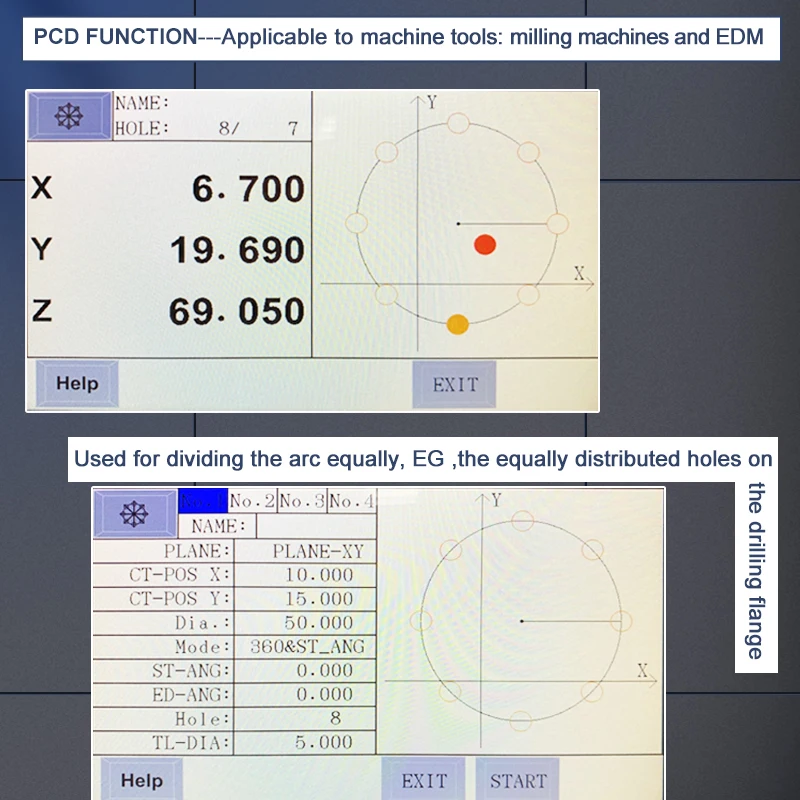

2)PCD Function

3)Simple R Function

4)Smooth R Function

5)Rectangle Chambering Function

6)Taper Measuring Function

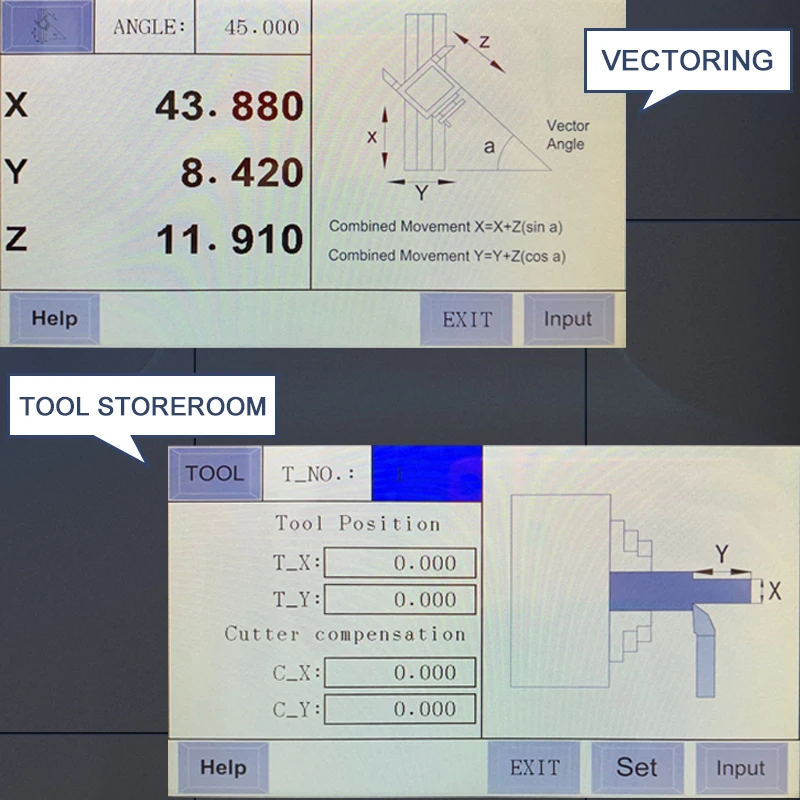

7)200 sets of Tools

8)Radius/Diameter Conversion

9)Y+Z Function (special for 3 axis lathes)

10)Digital Filtering Function

11)Value Combination of 2 axis in the same direction

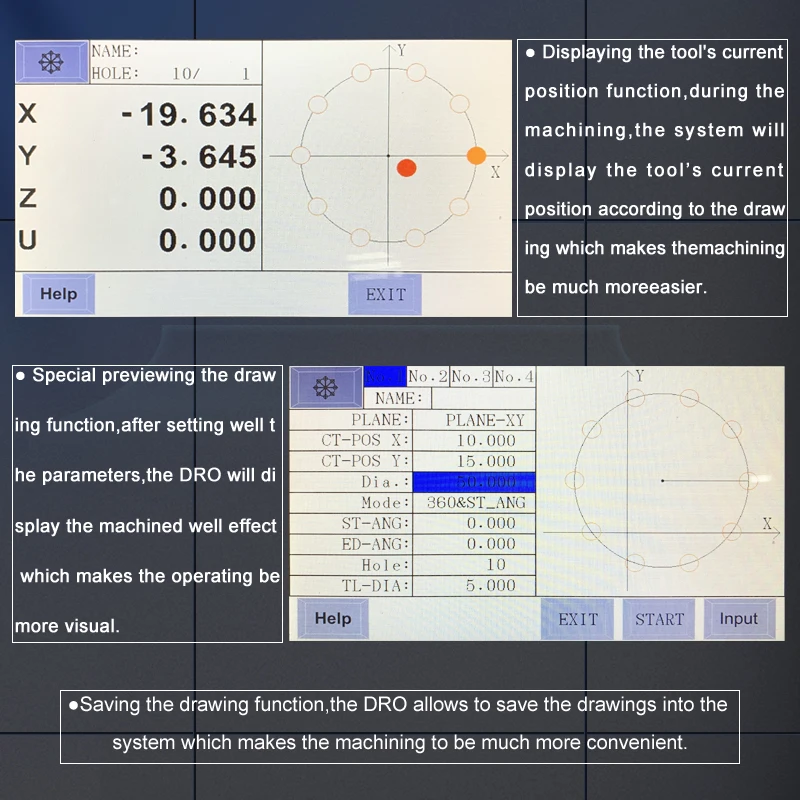

12)Picture Demonstration

13)EDM Function










Company Information

Packaging & Shipping

Resolution (μm):0.1μm/0.2μm/0.5μm/1μm/2μm/2.5μm/5μm/10μm (to be chosen);Place of Origin:Sichuan China;Packaging Detail:Carton box;Display Case Size (m
