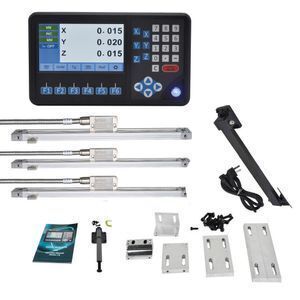

Dro Digital Readout ,2 Axes LCD Digital Readout Dro with IP67 Magnetic Scale for Lathe /Milling Machine

 DRO D80 Technical Parameter Sheet

 Resolution

0.1μm/0.2μm/0.5μm/1μm/2μm/2.5μm/5μm/10μm ...

Display Screen

7inch LCD

Display Case Size

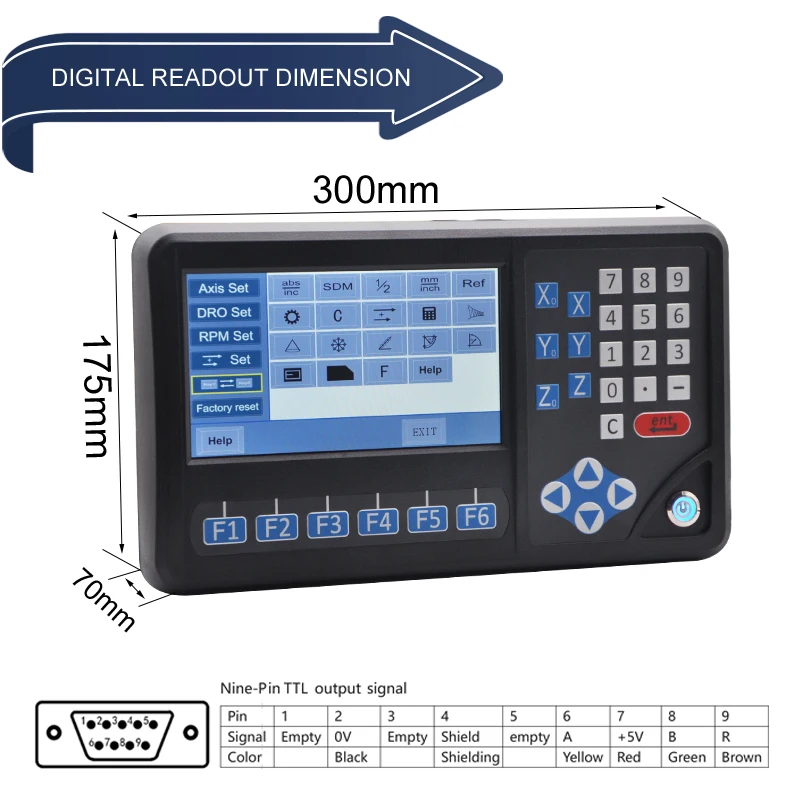

300X180X75mm

Axis

1

2

3

4

5

Signal

TTL/RS422

Input frequency

<5MHZ

Voltage range

AC 80~260V (50~60HZ)

Power Dissipation

15W

Working temperature

'-10~60℃

Operating keyboard

Mechanical Keypad

Material of Case

Plastic

Application Suggested

Particular for Milling, Lathe, Grinding, EDM

Product Feature

1. 7" super LCD screen, easy to recognize

2. Up to 5 axis input to work for high precision tool machining.

3. More than 10 drawings for different tools can be selected to make the machining much more convenient.

4. Special previewing the drawing function,after setting well the parameter ,the Dro will display the machined well effect which makes the operating be ,ore visual

5.Custom setting for the shortcut keys,operate can set the shortcut keys according to his operating habit

Basic Functions

Zeroing, Data Recovery

Encoder Selection

Input Coordinate

Resolution Setting

Display in Metric British Units

Linear Compensation

Power Off Memory Function

Counting Direction Selection

ABS/INC Coordinate

200 sets of SDM Coordinate

Ref Ruler Storage Function

Non-linear Compensation

Calculator

1/2 Function

Sleeping Function

Special Functions

PLD Function

PCD Function

Simple R Function

Smooth R Function

Bevel Machining Function

Rectangle Chambering Function

Preview Drawing

Tool Location Display

Tool offsets

Preview Function

200 sets of Tools

Radius/Diameter Conversion

Y+Z Function (special for 3 axis lathes)         Digital Filtering

Taper Measuring Function

Optional Function

EDM Function

RPM

RS232

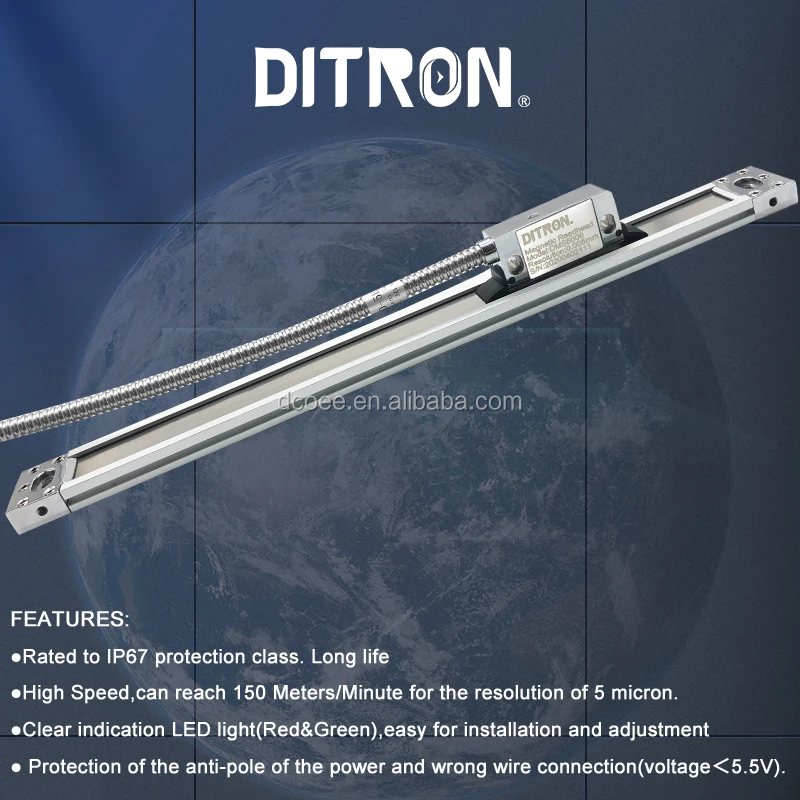

DM Series Linear Scale Technical Parameter Sheet

Type

DMS

DMA

Resolution (μm)

0.5/5/10/25μm

Accuracy (μm)

±10/±15/±30μm    (L<1m; 20℃)

Measure Length (mm)

50mm~32000mm

Cable Length

1/2/3mm

Poles Pitch (μm)

1+1 / 2+2 / 5+5 mm

Air gap btw head and tape

0.5/1/2.5mm

Working Temperature

-10℃~80℃

Protection Level

IP67

Housing Cross Section (mm)

33X20

31.5X28

Housing Structure

Open

Open

Max. Response Speed (m/min)

240

Protection Level

IP67

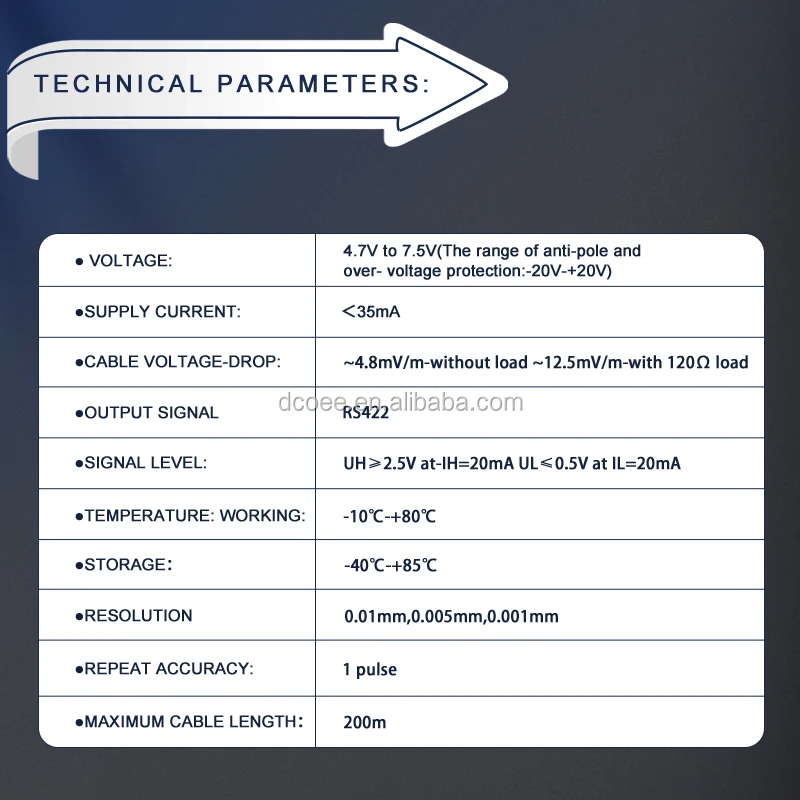

Output Signal

TTL / RS422

Input Voltage

LINE-DRIVE; PUSH-PULL

Cable Length

3M/5M (Can customized )

Plug Model

DIN-7/DB-9 (Can customized )

Feature :

1:Match IP67 protection degree

2:Automatic gain control technics ,reduce the requirement for installation.The gap between the reader and tape can be 3mm (5micron )

3:Protection of the anti-pole of the power and wrong wire connection (voltage<5.5V)
