Metal Bubble Cap Tray for Distillation Columns

Product details
Packaging Detail:Wooden box or on customer requests;Material:Metal;
Certification:ISO9001:2015;After-sales Service:Provide;
Place of Origin:Jiangsu China;Response Time:Within 24 hours;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Cash;Supply Ability:5000 Ton/Tons per Year;
Package Preview:;Name:Bubble Cap Tray;
Customized:Yes;Brand Name:SUTONG;
Application:Column internal;Port:SHANGHAI;
Type:DN80 DN100 DN150;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Energy & Mining,Food & Beverage Shops;
Model:Bubble cap;Function:Mass transfer;
Product Description

Product Introduction

Bubble Cap Tray is a kind of tower internals with many advantages such as low pressure drop, big surface area , high mechanical strength and so on. Bubble Cap Tray is widely used to increase gas-liquid contact area to improve mass transfer efficiency.

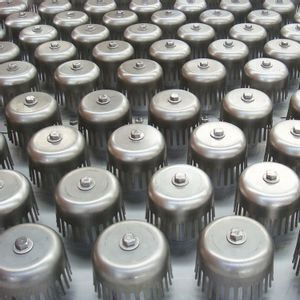

Bubble Cap Tray has riser or chimney fitted over each hole, and a cap that covers the riser. The cap is mounted so that there is a space between riser and cap to allow the passage of vapour. Vapour rises through the chimney and is directed downward by the cap, finally discharging through slots in the cap, and finally bubbling through the liquid on the tray.

Application
Bubble-Cap trays have numerous applications in refinery and gas plants.
Model
Material Type
1
2
Norminal Dia. Dg
80
100
150
80
100
150
Slot Height
H
1
20
20
35
20
20
35
2
25
25
-
25
25
-
3
30
32
-
30
32
-
Slot Breadth b1
4
5
R4/13.5
4
5
R4/13.5
Slot Number n
30
32
28
30
32
28
Slot Pitch f
8.38
9.82
17.7
8.38
9.82
17.7
Riser Pore Dia. d1
55
68
106
55
68
106
