Screen Printing Frame UV Light Vacuum Exposure Unit Exposing

Supplier: Dongguan Ruida Machinery And Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Sam Leo
Price: $276.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	;	Weight:	43kg;
Selling Units:	Single item;	After Warranty Service:	Video technical support;
Automatic Grade:	Semi-automatic;	Local Service Location:	None;
Type:	Tabletop,Plate Exposure;	Exposure area:	500x600mm;
UV Lamp Amount:	20W x 8pcs;	Certification:	CE Certificate;
Machinery Test Report:	Provided;	Dimension(LWH):	89x82x24 cm;
Gross Weight:	43kg;	Voltage:	220V/50HZ Can be customized;
Warranty:	1 Year;	Single gross weight:	43.0 KG;
Place of Origin:	Guangdong China;	Video outgoing-inspection:	Provided;
Key Selling Points:	Easy to Operate;	Product Name:	Screen Printing Frame UV Light Vacuum Exposure Unit Exposing;
Core Components:	Bearing;	Brand Name:	NEWMAN;
Packaging Detail:	foam with case box, very saftey and strong;	Applicable Industries:	Garment Shops,Manufacturing Plant,Home Use,Retail,Printing Shops,Construction works ,Advertising Company,silk screen printing;
Single package size:	89X82X24 cm;	Marketing Type:	Ordinary Product;
Model:	MD5060 Screen Printing Frame UV Light Vacuum Exposure Unit Exposing;	Warranty of core components:	standard;
Power:	110V 60Hz /220V 50Hz;	Condition:	New;
Light source:	UV;	Driven Type:	Manual;
After-sales Service Provided:	Overseas service center available;	Showroom Location:	None;

Product Description

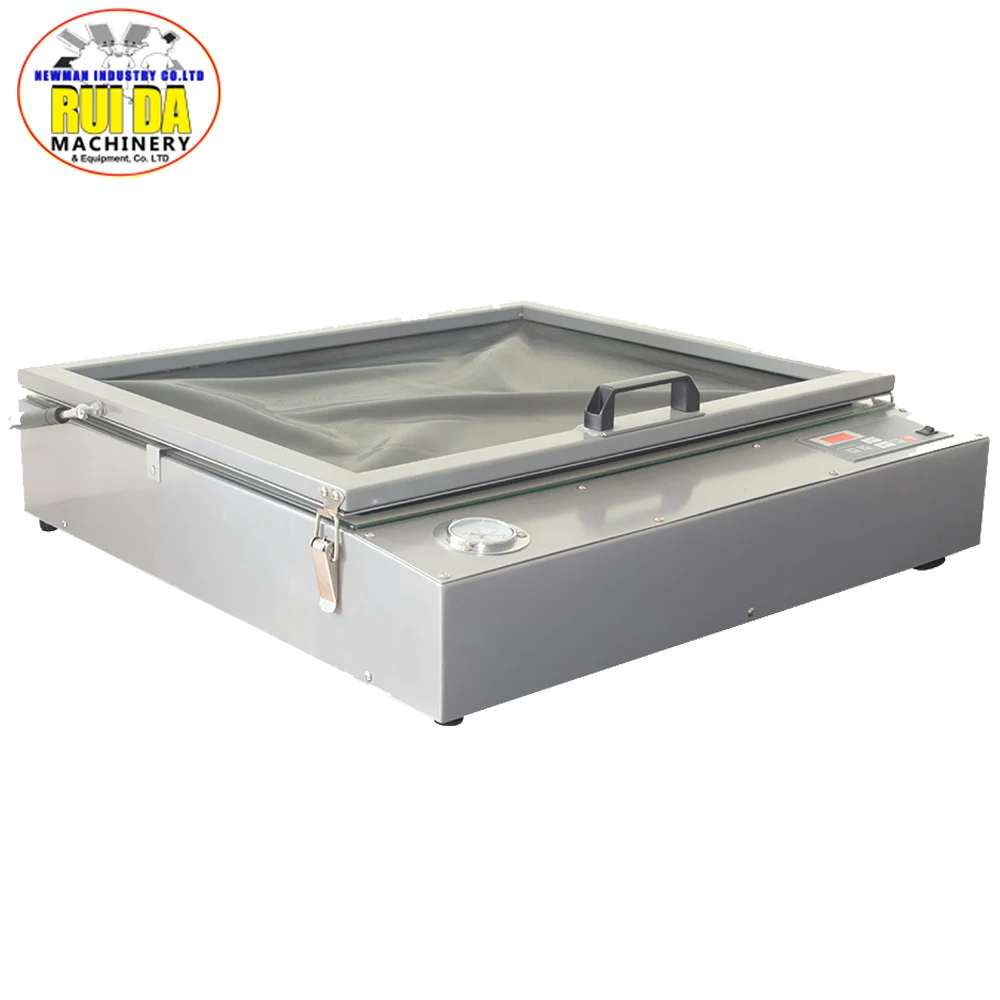

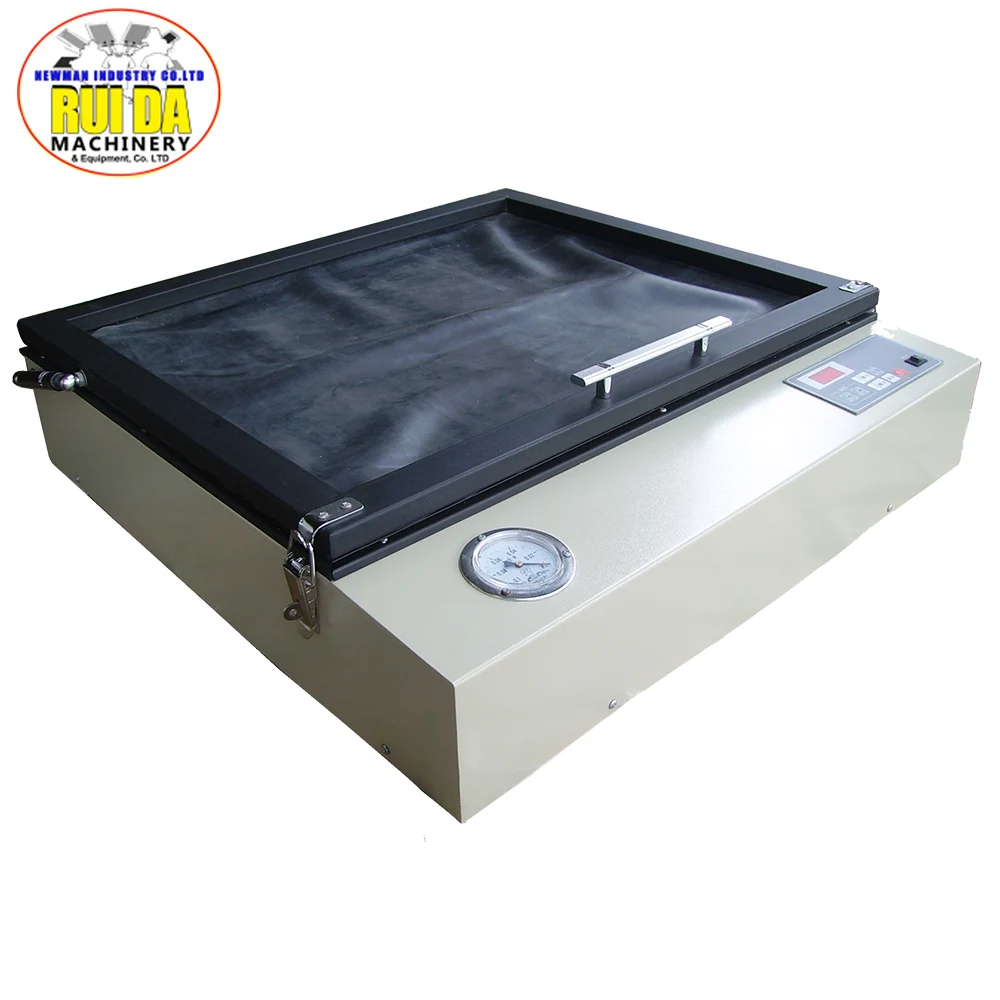

Screen Printing Frame UV Light Vacuum Exposure Unit Exposing

Power	110V/60HZ,220v/50hz 250W

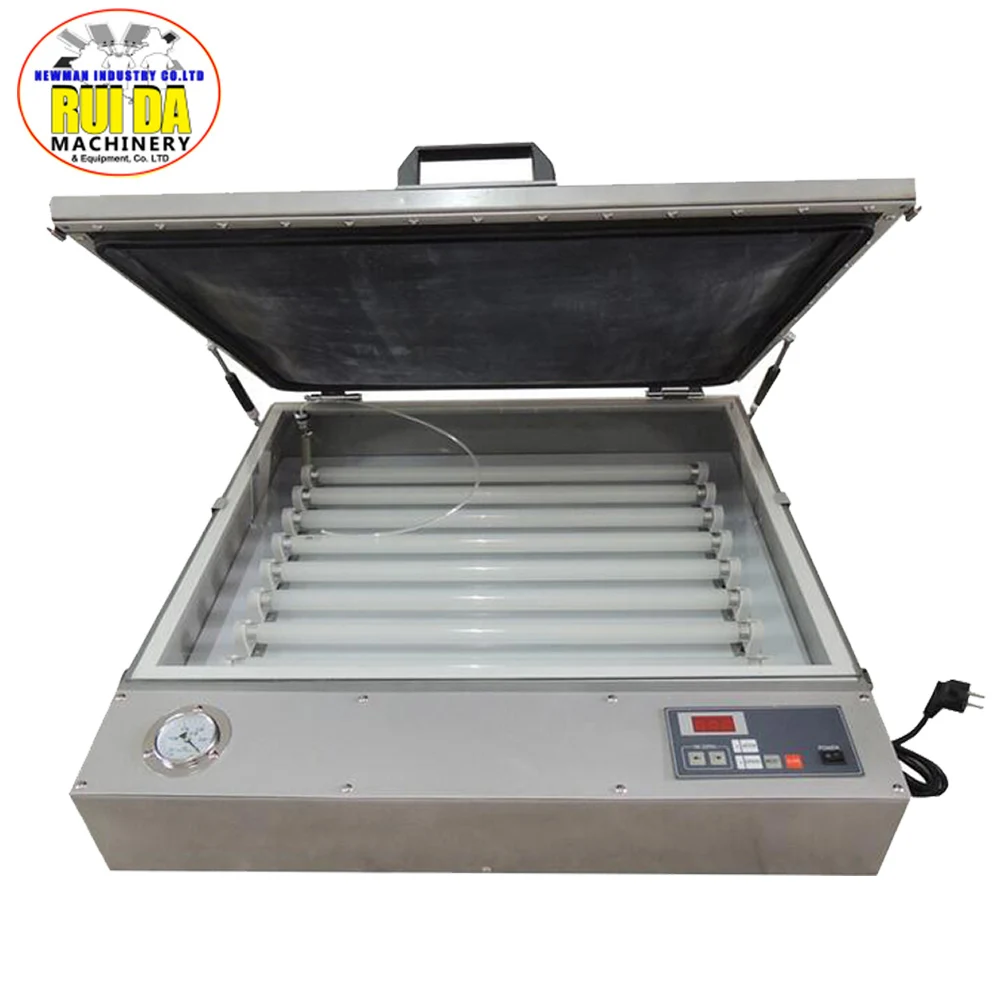

Exposure unit Lamp power:	20W*8PCS
Exposure unit Max expose area	500x600 mm
Exposure unit Max frame size	500x600mm
Exposure unit Net weight	30kgs
Gross weight	44kgs
packing size:	89x82x24cm

Application:

Used in the filed of plate-making such as pad printing steel plate,polymer plate, screen plate,hot stamper plate, when put the film onto the plate into UV exposure machine,start it, the emulsion on the plate will appear a unseen imagine,this is important process on all plate-making technology

The operation process:

1. Put the film under the frame mesh and then close the lid

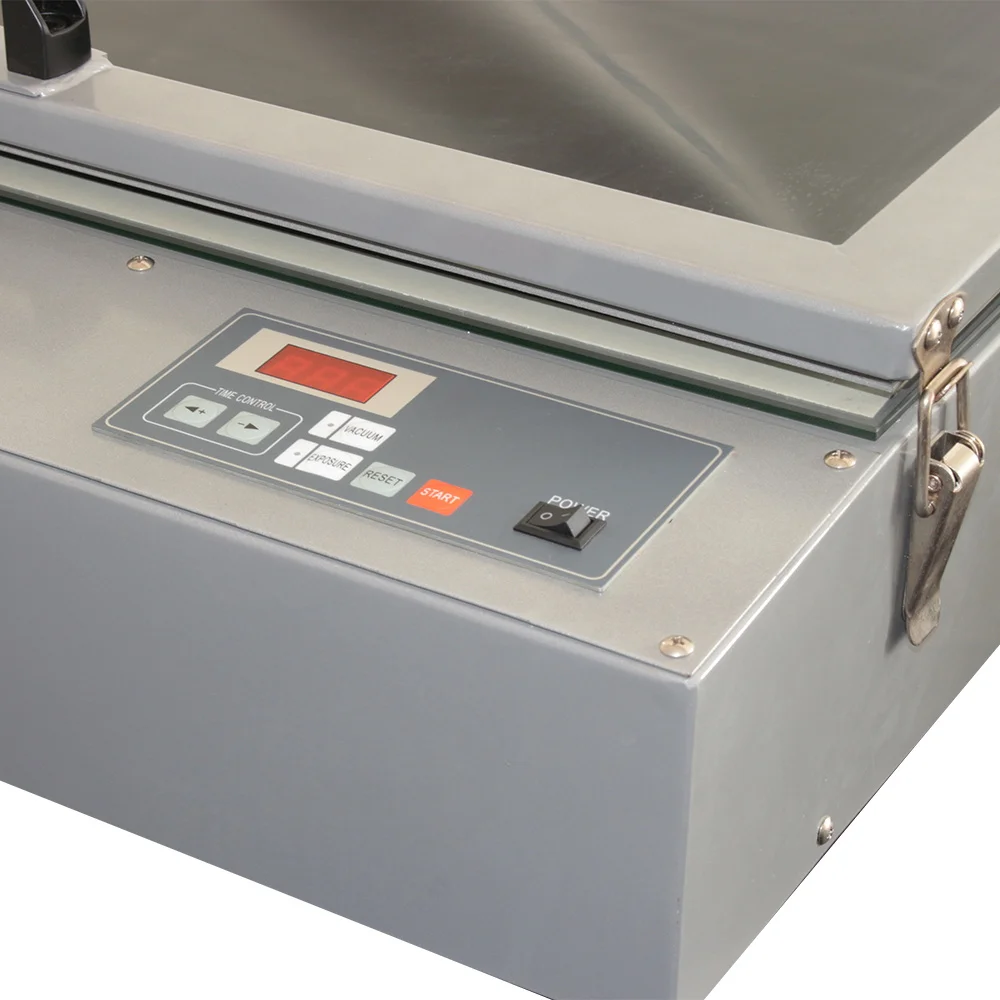

2.Turn on the POWER, set the vaccum time ,set the exposure time,press start
3.expose
4.After time is up,the machine stop working auto-matically,before opening the lid,the air should release completely

Detailed Images
