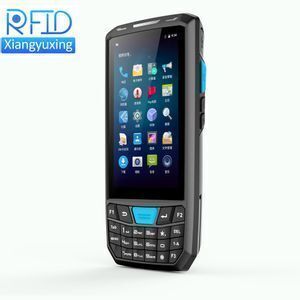

4G WIFI GPS NFC RFID 125KHz 1D 2D Barcode Scanner Android Handheld PDA

Supplier: Shenzhen Xiangyuxing Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Paul .Chan
Price: $231.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Operating System:	Android 8.1;	Display:	Capacitive Touch Screen;
Packaging Detail:	Package Type: Single Retail Box+Export Carton Single package size: 20X20X12 cm Single gross weight: 1.0 kg Single package detail: 1pc Android Barcode PDA, 1 battery, 1 charger & cable;	Brand Name:	XYX;
Payment Terms:	L/C,T/T,Western Union;	Place of Origin:	Guangdong China;
Supply Ability:	3500 Piece/Pieces per Week Android Barcode Scanner;	Processor Type:	ARM Cortex-A53 64bit Quad-Core 1.3G;
Camera:	HD 8 million pixel;	Package Preview:	;
Screen Size:	4.5 inch,4.5 inch;	Style:	Handheld Computer;
Product name:	NFC RFID 125KHz 1D 2D Barcode Scanner Android Handheld PDA;	Weight:	<500g;
Model Number:	XYX-T80;	GPS:	Built in;
Memory Capacity:	RAM 2G; ROM 16G;	RFID:	125KHz, 13.56MHz for option;
Operation System:	Android 8.1;	Products Status:	Stock;
Data Communication:	wifi, 2G/3G/4G, GSM;	Port:	Shenzhen;
Memory:	16G ROM + 2G RAM;	Barcode scanner:	1D, 2D for option;

4G WIFI GPS NFC RFID 125KHz 1D 2D Barcode Scanner Android Handheld PDA

Specifications

XYX-T80 is the best choice of hand-held terminal for enterprise users to collect data due to its classic Android APPs and aggressive performance, which is usually applied in the fields including government & public affairs, financial management, ticket business,traceability, medicare, logistics, retailing stores and supermarkets, O2O e-commerce payment, etc.

Structural Parameter
Dimensions	166mm(L)X77.5mm(W)X22mm(D)
Weight	<500g
Display Screen	4.5inch IPS 480*854 px with Multi-point touch capactive screen
Communication Interface	Type-C USB
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 4200mAh
Performance Parameter
OS	Android 8.1
CPU	ARM CORTEX-A53 64bit Quad-Core 1.3G
RAM	1G/2G RAM
Flash ROM	Standard 8G/16G NAND Flash Storage
Flash ROM	micro SD/TF port (Max up to 32G)
Data Communication
WI-FI	Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover
FDD/TDD-LTE 4G	TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3)
WCDMA 3G	B1,B2,B5,B7,B8
GSM 2G	GSM/edge/GPRS (850,900,1800,1900MHz)
bt	Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Standard Modules
Camera	8MP autofocus camera with flash
GPS	Support A-GPS
Operating Environment
Operating	-20°C to 55°C
Storage Temperature	-25°C to 70°C
Environment Humidity	5%RH-95%RH(no condensation)
Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP66
1D Laser Scanner (OPTIONAL)
1D Laser Scanner	Symbol 955, N4313,Mingde966
Ambient Light	10000ft.candles(107640 lux)
Scanning Speed	104(±)12/sec (bothway)
Scanning Angle	47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
2D CMOS (OPTIONAL)
CMOS Scanner	N6603,NewLand 3096
Ambient Light	All dark 9000ft.candles/96900 lux
focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
NFC Reader (Optional)
Frequency	13.56MHz
Protocol	ISO/IEC 18092 (ECMA 340)
Range	2-4cm
