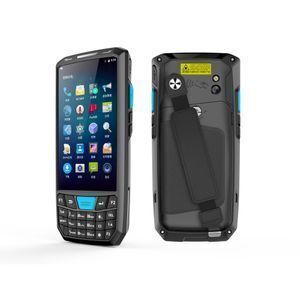

2019 New Arrival Portable Pda Barcode Scanner Android Handheld PDA Handheld Terminal Data Collector 4G LTE GPS Bluetooth

Supplier: Shenzhen Xiangyuxing Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Paul .Chan
Price: $194.04 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Model Number:	X80;	Product name:	PDA Handheld Barcode Scanner;
ROM:	16GB/32GB;	Weight:	0.5kg;
Memory Capacity:	2G;	Screen Size:	3.5";
Communication:	2G/3G/4G/WIFI/BLUETOOTH;	Selling Units:	Single item;
Operating System:	Android;	Style:	Smartphone;
Package Type:	Retail Box+Export Carton New Arrival portable pda barcode scanner android handheld PDA handheld terminal data collector 4G LTE GPS bluetooth;	Products Status:	Stock;
WIFI:	IEEE 802.11b/g/n;	Single package size:	20X15X3 cm;
Barcode scanner:	1D/2D Barcode Scanner Optional;	Single gross weight:	0.5 KG;
Camera:	800W Pixels;	Brand Name:	XYX;
Battery:	3.7V;	Place of Origin:	Guangdong China;
GPS:	Support A-GPS;	Color:	Black;
Bluetooth:	Bluetooth V4.0+EDR;	Processor Type:	OMAP;

We are PDA manufacturer for 10years experience with advantage of free SDK provided, professional technical team support and CE Rohs certificate.
New Arrival portable pda barcode scanner android handheld PDA handheld terminal data collector 4G LTE GPS bluetooth
Our product is the best choice of hand-held terminal for enterprise users to collect data due to its classic Android APPs and aggressive
performance, which is usually applied in the fields including government & public affairs, financial management, ticket business,
traceability, medicare, logistics, retailing stores and supermarkets, O2O e-commerce payment, etc.

Product Description

Structural Parameter
Dimensions	166mm(L)X77.5mm(W)X22mm(D)
Weight	<500g
Display Screen	4.5inch IPS 480*854 px with Multi-point touch capactive screen
Expand Port	SIM card, micro SD (TF) Card
Communication Interface	Type-C USB
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 4200mAh
Frequency	8ohm 1W speaker
Key	Silicone keyboard
Performance Parameter
OS	Android 7.0
CPU	ARM CORTEX-A53 64bit Quad-Core 1.3G
RAM	1G/2G RAM
Flash ROM	Standard 8G/16G NAND Flash Storage
Flash ROM	micro SD/TF port (Max up to 32G)
Data Communication
WI-FI	Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover
FDD/TDD-LTE 4G	TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3)
WCDMA 3G	B1,B2,B5,B7,B8
GSM 2G	GSM/edge/GPRS (850,900,1800,1900MHz)
bt	Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Standard Modules
Camera	8MP autofocus camera with flash
GPS	Support A-GPS
Operating Environment
Operating	-20°C to 55°C
Storage Temperature	-25°C to 70°C
Environment Humidity	5%RH-95%RH(no condensation)
Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP66
1D Laser Scanner (OPTIONAL)
1D Laser Scanner	Symbol 955, HoneywellN4313,Mingde966
Resolution	4Mil minimum width
Ambient Light	10000ft.candles(107640 lux)
Scanning Speed	104(±)12/sec (bothway)
Scanning Angle	47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
2D CMOS (OPTIONAL)
CMOS Scanner	Honeywell N6603,NewLand 3096
The Sensor Resolution	752(level)×480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
LF RFID Reader (Optional)
Frequency	125kHz, 134kHz (FDX-B / HDX)
Protocol	ISO11784/5, ISO18000-2
Range	3-8cm
NFC Reader (Optional)
Frequency	13.56MHz
Protocol	ISO/IEC 18092 (ECMA 340)
Range	2-4cm

High-speed operation performance:
With androd 7.0 operating system, matching 64 bit quad core 1.3GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 1D and 2D barcode scanning,NFC(optional).
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.0 inch IPS (720x1280) Work even with water or Gloves.
Abundant means of data transportation(option)
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Postposition 8 mega pixel autofocus camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.
