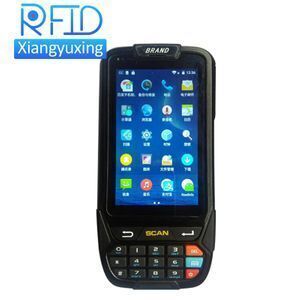

1 D 2D Scanner WIFI Handheld Terminal Android PDA Barcode Scanner
-
Supplier: Shenzhen Xiangyuxing Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Paul .Chan -
Price: $200.00 /piece -
Min. Order: 1 piece
| Product Name: | scanner wifi handheld terminal android pda barcode laser scanner; | Operating System: | Android 7.0; |
| Place of Origin: | Guangdong China (Mainland); | Style: | Handheld Computer; |
| Barcode Scanner: | 1D or 2D Barcode Scanner Optional; | Processor Type: | ARM A53 64bit Quad-Core 1.3G; |

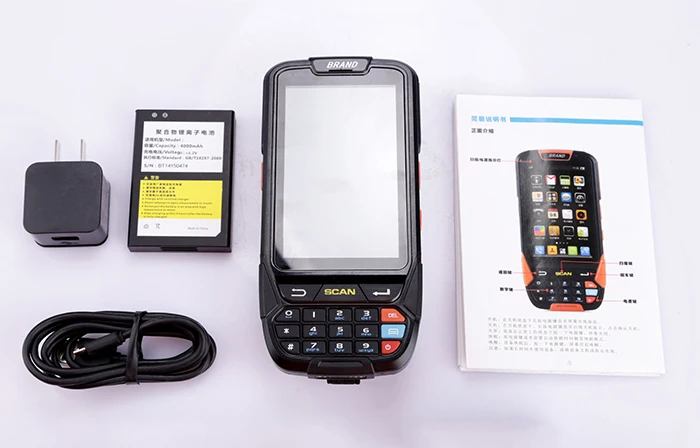

| Packaging Detail: | carton or custom Android barcode PDA Packing list: 1D 2D Android barcode PDA, User manual, protective film, battery, data cable, adapter; | Products Status: | Stock; |
| Memory Capacit: | 2G; | Camera: | Hd 8 million pixels, with LED, automatic focusing; |
| Weight: | <500; | Processor Type: | A53 64bit Quad-Core 1.3G; |
| Screen Size: | 4.0 Inch; | Brand Name: | Xiangyuxing; |
| Payment Terms: | T/T,Western Union,Trade assurance, paypal; | Battery: | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional; |
| Supply Ability: | 5000 Piece/Pieces per Month 1D 2D PDA, custom barcode scan smartphone; | Model Number: | XYX-L8000; |
| Style: | Handheld Computer; | Port: | Shenzhen; |
| Stock: | Stock available for prompt delivery; | Operation System: | Android7.0; |
| Screen Size: | 4.0 Inch; | Memory Capacity: | 2G; |

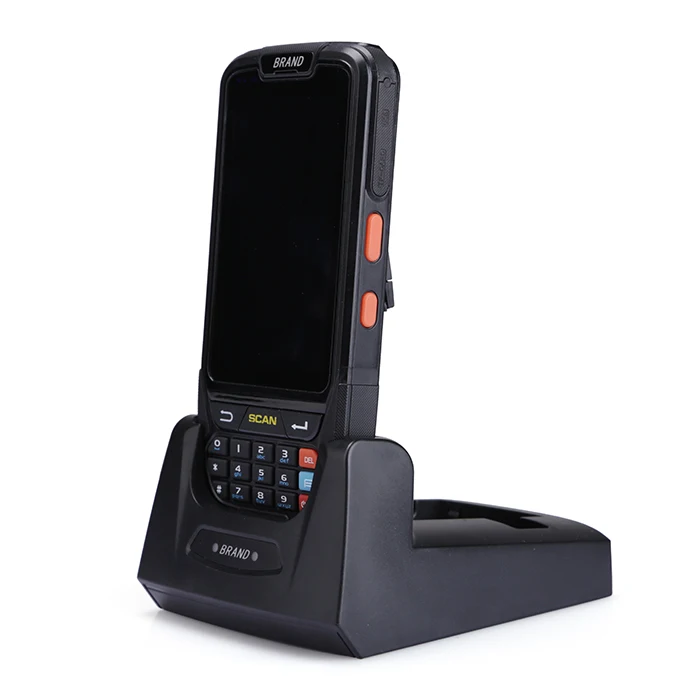

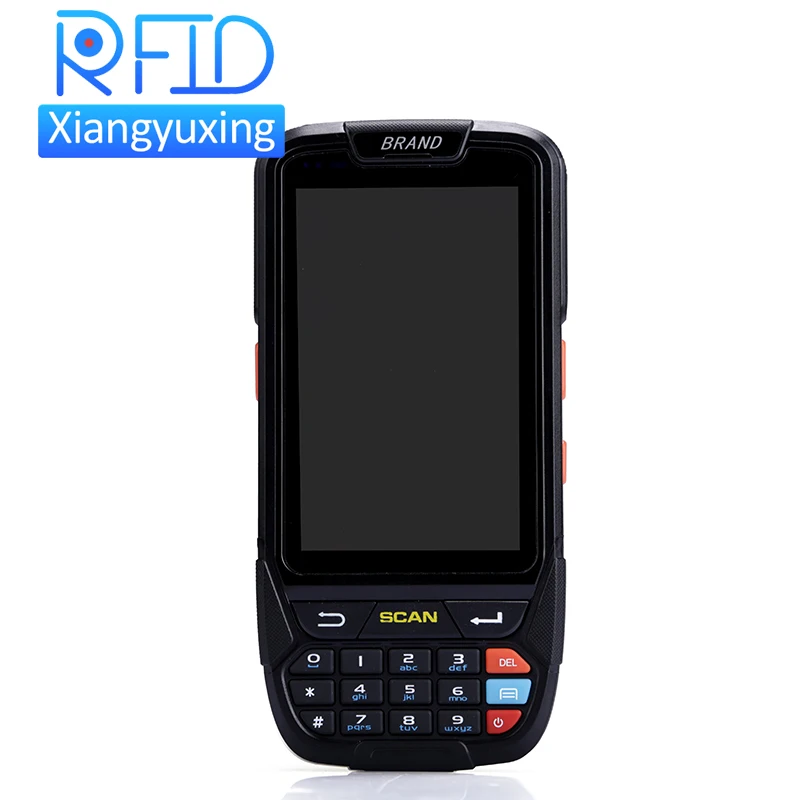

1 D 2D scanner wifi handheld terminal android pda barcode laser scanner
Android Handheld Terminal PDA Specifications
| Physical Parameter | |
| Size | 152mm(L)×77mm(H)×29mm(W) |
| Weight | <500g |
| Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable |

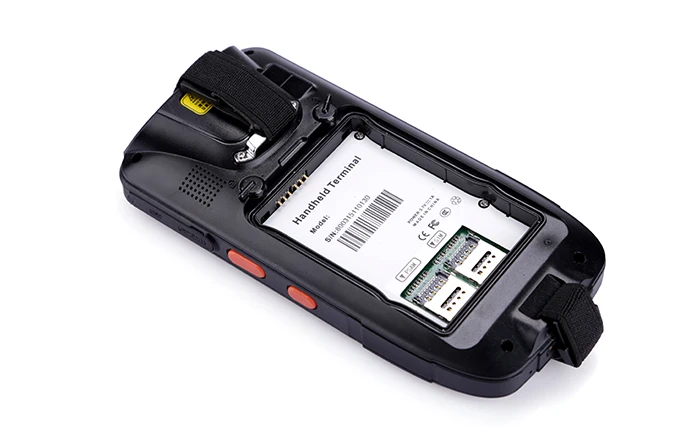

| Expand Port | SIM card, , Micro SD (TF) Card |
| Communication Interface | USB2.0 Device, |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
| Frequency | 8 1W speaker |
| Key | 21pcs soft silicon key |
| Performance Parameter | |
| CPU | ARM A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage Micro SD/TF port (Max up to 32G) |
| Data Communication | |
| WI-FI | Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover |
| FDD-LTE | Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ |
| WCDMA /GSM | WCDMA: Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ GSM: 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ 900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ 1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ 1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Operating Environment | |
| Operating Temperature | —20C to 50C |
| Storage Temperature | —25C to 70C |
| Environment Humidity | 5%RH--95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |
| Development Environment | |
| Operating System | Android7.0 |
| SDK | exclusive use software development kit |
| Supported Language | JAVA |
| Development Tool | Eclipse |
| A one-dimensional bar code collect | |
| One dimensional laser scanner | Symbol 955, HoneywellN4313,Mingde966 |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| Two-dimensional bar code acquisition | |
| CMOS Scanner | HONEYWELL N3680 newland 3096 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| Focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| RFID | |
| LF | 125K;ISO11784/ISO11785 protocol |
| HF | 13.56MHz;ISO14443A/B protocol |
| Camera | Hd 8 million pixels, with LED, automatic focusing |
| GPS | Support A-GPS |

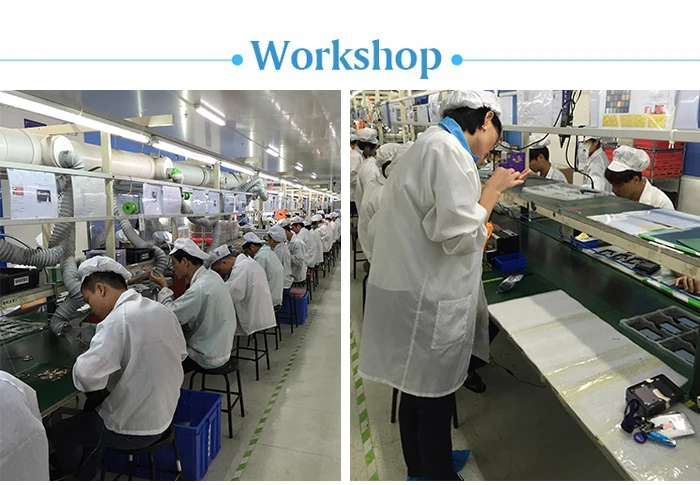

Xiang Yuxing Technology is a leading manufacturer with over 10-years history, specialized in all types of
RFID /NFC TAGS,

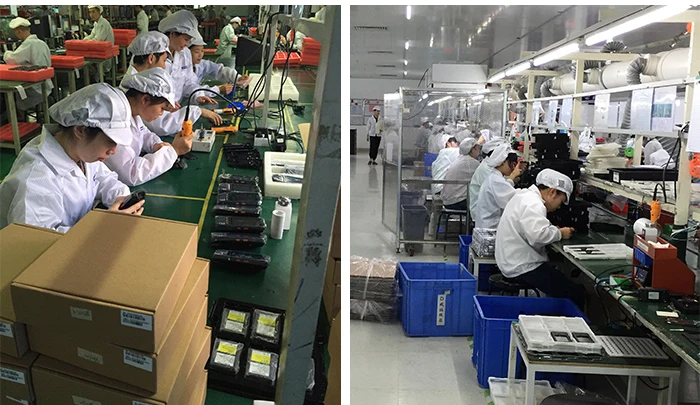

and quality is our culture ! And with us your buisness in safe and your moeny in safe. We have 4 factories
in China, the main foreign business office in Shenzhen,near Shenzhen North Station.

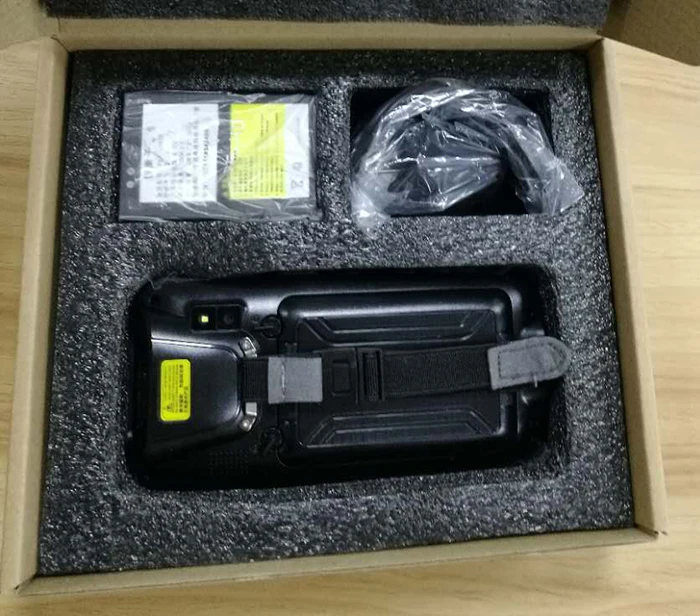

--Packaging & Shipping :
product time: 8-10 working days
shipping time: By express : 3-5 days By air : 5-10 days By sea : 12-25 days
--FAQ :
1. Can you offer us few samples ?
After we know clearly what products you need, then we can offer similar existing sample for your reference.
Sample free with shipping cost you paid.
If you need customized tag sample based on your design and requirement,there is reasonable sample cost charged accordingly.
2. We are not an expert buyer in your technology, what information do you need from us to quote ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price
3. We have a concern that we paid, but you don't send us the goods .
We are a leading company doing honest business in the internat market for years.
We always get positive feedback from our worldwide customers.
Furthermore, our company support Trade Assurance on Alibaba,
you can place order through Alibaba that guarantees your money safe and order go smoothly.
4. Can we visit your factory ?
Yes, warmly welcome your factory tour. And it's honored to be your guide in your China trip.
Welcome to inquiry!
Linda Cheng
T: +86-755-23764500
M: +86-134-2138-1281
E: linda@xiangyuxing.com.cn
-
