HH-H250(63-250mm) Hydraulic PE Butt Fusion Welding Machine

Product details
Payment Terms:T/T;Dimensions:0.7CBM;
Key Selling Points:Patented Product;Package Preview:;
After Warranty Service:Online support;Core Components:Engine;
Current:50HZ;Local Service Location:None;
Marketing Type:Hot Product 2019;Working temprature:270℃;
Power:3.95KW;Applicable specifications:63MM 75MM 90MM 110MM 125MM 140MM 160MM;
Packaging Detail:1. Inner package: Wrap the machine with a stretch film. 2. Outside package: plywood boxes.;Applying TO:PE PPR PB PVDF;
Certification:CE ISO9001 , CE;Machinery Test Report:Not Available;
Weight (KG):100;Video outgoing-inspection:Provided;
keywords:Plastic Welding Machine;Usage:Butt Welding;
After-sales Service Provided:Engineers available to service machinery overseas,Online support,Video technical support;Condition:New;
Warranty:1 Year;Applicable Industries:Building Material Shops,Farms,Construction works ;
Place of Origin:Zhejiang China;Port:Ningbo/Shanghai;
Input Voltage:220v;Warranty of core components:1 Year;
Brand Name:CONGFA;Showroom Location:None;
Supply Ability:10 Piece/Pieces per Day for High Frequency Plastic Welding Machine;



Detail

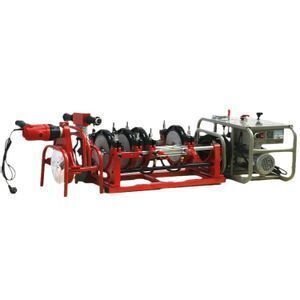

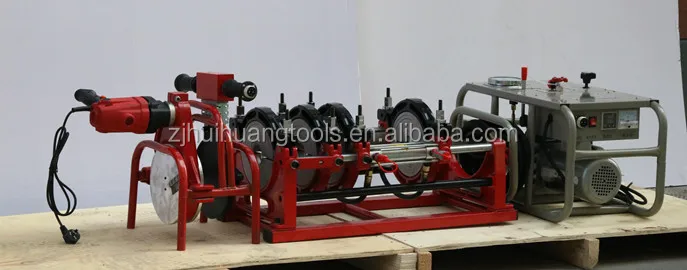

HH-H250(63-250mm) Hydraulic PE Butt Fusion Welding Machine

USES AND features:

Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.


 Specification

Type    HH-H250
Welding Materials                                   PE,PP,PVDF
Welding range of diameter 63,75,90 110 125 140 160 180 200 225 250mm
Environment temp.                                 -5~45℃
Voltage/Frequency ~220v±10%,50hz
Total power                                             3.95KW
Include:Heating plate  2.1KW
Trimmer power                                                 1.1KW
Hydraulic unit power     0.75kw
Max. Pressure                                        0~6.3MPA
Max. Temperature of heating plate  270℃
Difference in surface temperature of heating plate  ±5℃
Package Volume    1.0CMB(2 wooden box)
Gross Weight                                         230KG

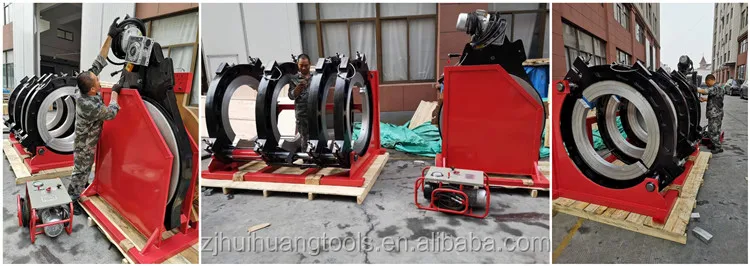

Main Products

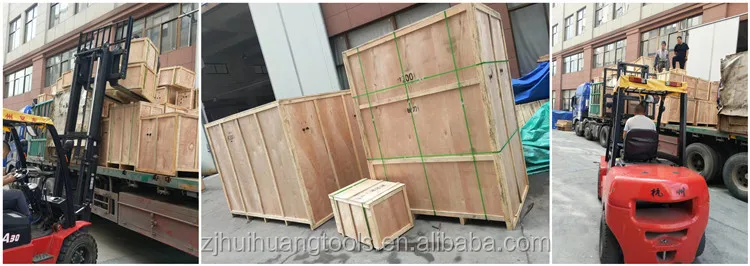

Package And Delivery

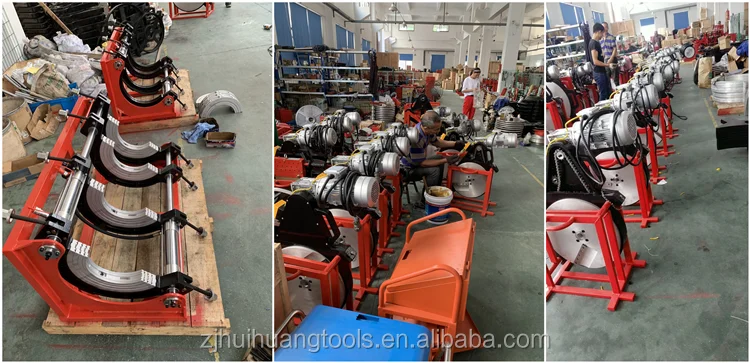

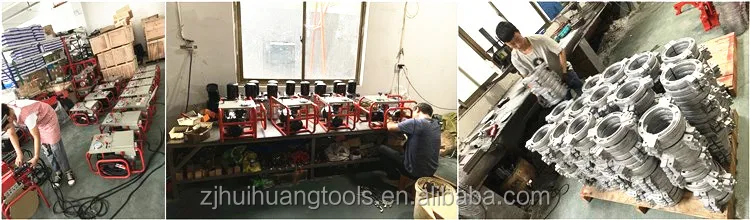

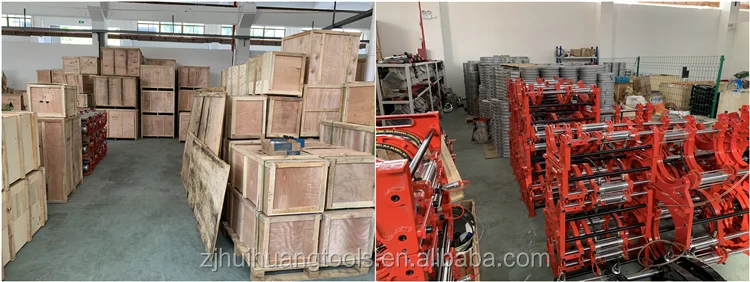

Production And Warehouse

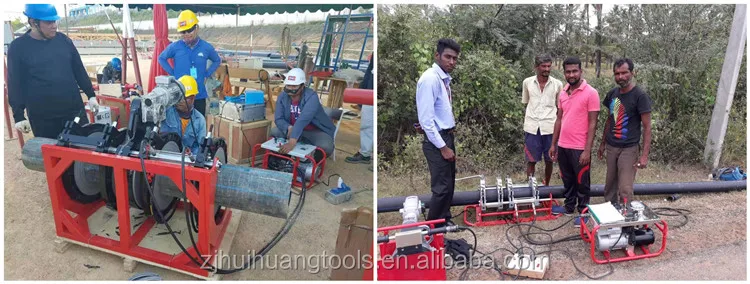

Construction Site

Company Profile



Certifications

 Exhibition And Contact



FAQ

Q1: Are you manufacturer or trading company?

A: We are Manufacturer with more than 10 years foreign trade experience. We have our own factory.



Q2: Can you produce based on our drawing & sample? We may also need our logo on it.

A: Yes, of course. We do OEM & ODM services. And definitely you can have logo on it.



Q3: What is the delivery time for bulk production?

A: About 35 days.



Q4: What about payment?

A: Usually we may ask for 30% T/T deposit and 70% T/T balance at the sight of B/L copy.



Q5: How do you control quality?

A: Under management of ISO9001 system, we check every process of production.
