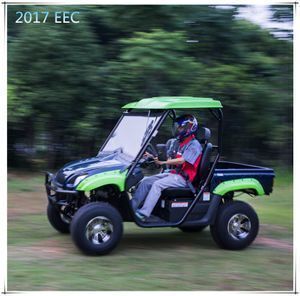

2017 hot selling electric dune buggy UTV eec vehicle

Supplier: Henan Kingwoo Electric Vehicle Trading Co., Ltd.
Region: Henan, China
Contact: Mr Mr. Wang
Price: $4000.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Model Number:	RUE500;	Color:	black, green, red, yellow, blue, camo green, camo yellow;
Place of Origin:	Henan China (Mainland);	Certificates:	2017 EEC COC;
Delivery time:	15~20 days;	Item Name:	electric dune buggy;
Type:	5 KW;	Port:	Qingdao, Ningbo,Lianyungang, Tianjin , Shanghai;
Transmission Type:	Automatic;	Fuel:	Electric;
Packaging Detail:	Electric dune buggy are Packed by metal frame and carton box outside 6 units / 20 GP, 15 units / 40'HQ, Assembly;	Motor:	5 KW;
Car condition:	Absolutely new;	Supply Ability:	300 Set/Sets per Month;
Charging time:	6~8 hours;	Battery type:	8V 150Ah X 9, TIANNENG Group gel battery;
Size (LWH):	233018301270 mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Delivery Detail:	Shipped in 25 days after down payment;	Brand Name:	Kingwoo;
Certificate:	Eec;	Max. forward speed:	60 km/h;

2017 hot selling electric dune buggy UTV eec vehicle

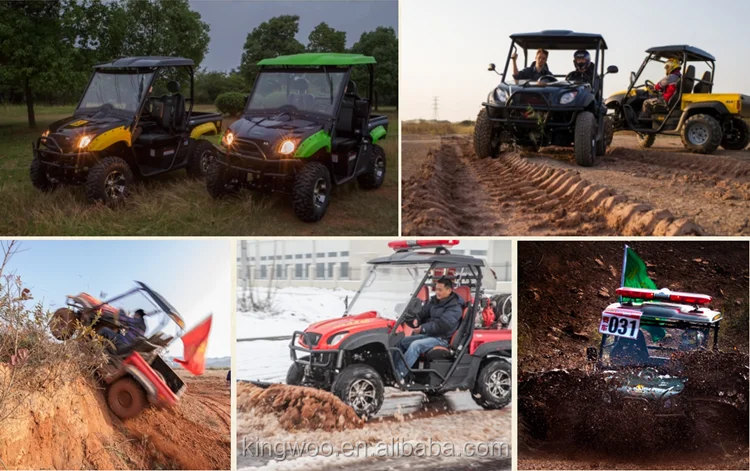

Electric dune buggy Applications

What advantages of electric dune buggy ?

Electric dune buggy Feature:

Overall dimension(s): 2950x1430x1780mm

Max forward speed: 60(km/h)

Climbing ability: <=20 °

N.W: 788kgs

Min turning radius: 3.5m

carrying capacity: 340KGS

Running on 1 full charge: 50+30km

Battery: 8V 150Ah X 9 , maintenance free type

Wheel base: 1910mm

Min.ground clearance: 220mm

Drive item: RWD

Electric dune buggy specifications and Photos

Parameter table of electric dune buggy

Motor					Suspension
Motor Type:5KW, 51V, 82AMP 102HZ					Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
Electricity Consumption of Sigle Charge: 10Kwh					Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
Brakes					Tires
Front/Rear Brakes: 4-Wheel Hydraulic Disc					Front Tires: 175/65 R14 82H
Parking Brakes: Hand-Actuated					Rear Tires: 175/65 R14 82H
Function/ Dimensions/ Capacities
Wheelbase: 1905mm					Drive System: RWD
Net Weight: 788kgs					Battery: 8V, 150Ahx9
Overall Vehicle Size: (L x W x H)2950x1375x1860mm					Overall Vehicle Load Weight: 340kgs
Min Ground Clearance: 220mm					Hitch Towing Rating: 500kgs
Min turning radius: 3.5m					Carrying capacity: 340KGS
Max forward speed: 60(km/h)					Climbing ability: <=20°
Cargo bed Dimensions: (L x W x H)1180×930×340mm					Cargo bed: Capacity185kgs

Two kinds of Optional Tires

1. HT is made for the main purpose of driving UTV on road with the feature of soft side-wall, lower tread depth and closer tread pattern than MT.

2. MT is designed for the purpose of eliminate mud in low speed or throw away mud with high speed. It can also increase the dune buggy's adhesion on rough terrain such as bump rocky road.
