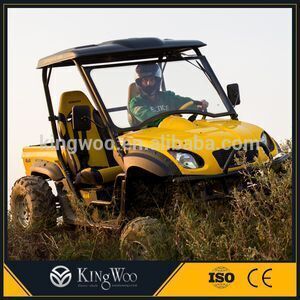

2017 new gasoline type dune buggy UTV 4x4 600CC

Supplier: Henan Kingwoo Electric Vehicle Trading Co., Ltd.
Region: Henan, China
Contact: Mr Mr. Wang
Price: $4500.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Fuel:	Gas / Diesel;	Fuel Capacity:	25L;
Brand Name:	Kingwoo;	Climbing ability:	<=40°;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Min Ground Clearance:	300mm;
Max forward speed:	80km/h;	Packaging Detail:	Dune buggy Standard package, 6 sets/20'GP ,15 sets/40'HQ;
Warranty:	12 Months;	Description:	dune buggy;
Type:	600cc;	Supply Ability:	300 Set/Sets per Month;
Final Drive:	2WD, 4WD, locked 4WD;	Net Weight:	522kg;
Color:	Optional;	Certificate:	Eec;
Delivery Detail:	Dune buggy Shipped in 25 days after payment;	Place of Origin:	Henan China (Mainland);
Model Number:	RUF625;	Cooling system:	liquid&Oil /Fan;
Port:	Ningbo/Shanghai/Lianyungang/Qingdao;	Transmission Type:	Automatic;

2017 new gasoline type dune buggy UTV 4x4 600CC

Product Description

Parameter table

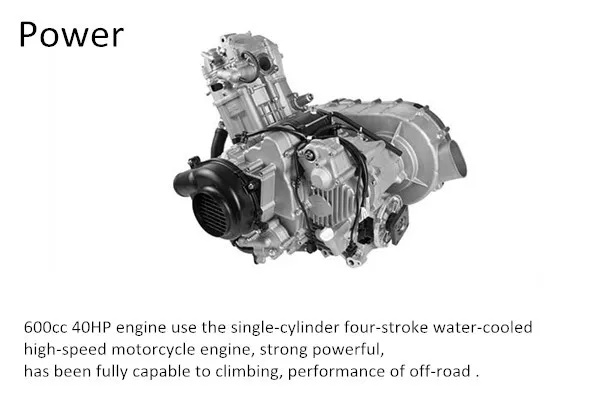

Engine
Engine Type: 4-Stroke Single Cylinder					Displacement: 600cc
Cooling: liquid&Oil /Fan					Fuel System: EFI

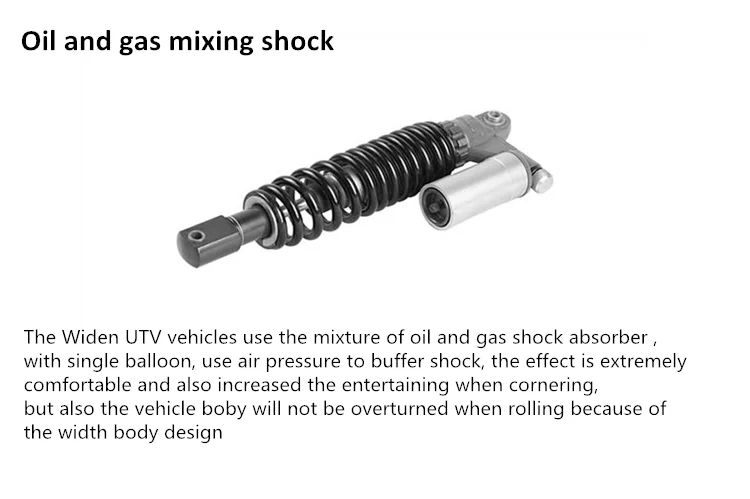

Drivetrain					Suspension

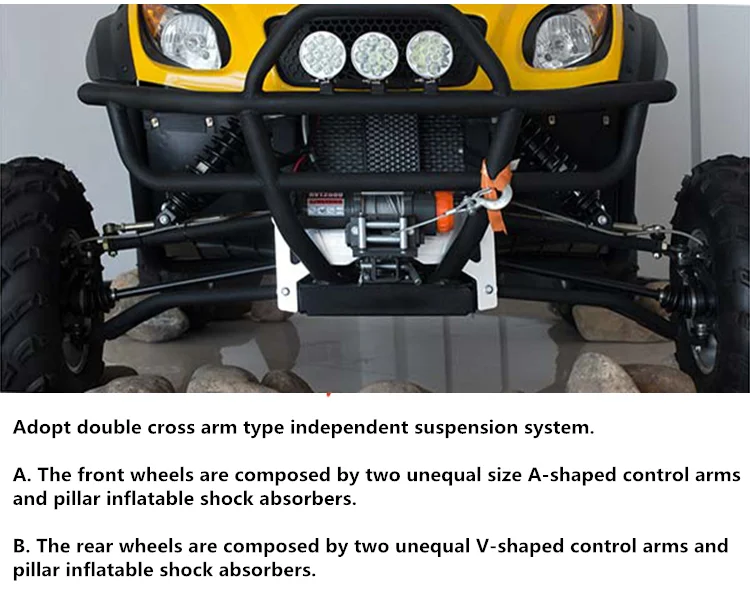

Transmission/Final Drive: Automatic CVT H/L/N/R; Shaft					Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
Drive System: 2WD, 4WD, locked 4WD; shaft, Controled by buttons					Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
Brakes					Tires
Front/Rear Brakes: Dual Hydraulic Disc,Twin Piston					Front Tires: 25*8−12 NHS
Hydraulic Disc,Self adjust parking system,Shaft Mounted					Rear Tires: 25*10−12 NHS
Function/ Dimensions/ Capacities
Wheelbase: 1905mm					Fuel Capacity: 25L
Net Weight: 522kgs					Max. power (kW/rpm): 28/6,500
Overall Vehicle Size: (L x W x H)2950x1375x1860mm					Overall Vehicle Load Weight: 350kgs
Min Ground Clearance: 300mm					Hitch Towing Rating: 800kgs
Climbing ability: <=40°					Max forward speed: 80(km/h)
Cargo bed Dimensions: (L x W x H)1180×930×340mm					Cargo bed Capacity: 185kgs

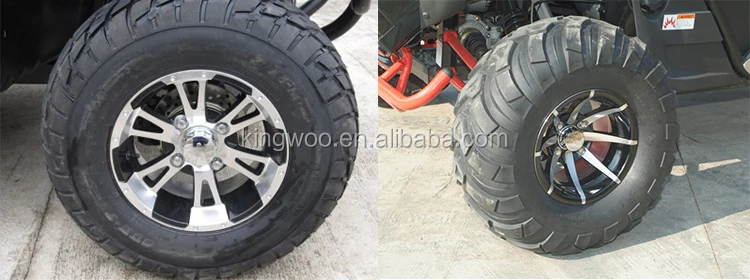

Optional Tires

1. HT is made for the main purpose of driving on road with the feature of soft side-wall, lower tread depth and closer tread pattern than MT.

2. MT is designed for the purpose of eliminate mud in low speed or throw away mud with high speed. It can also increase the adhesion on rough terrain such as bump rocky road.
