2017 Brand New stainless steel laser cutting machine with Germany system

Supplier: Jinan Spc Laser Co., Ltd.
Region: Shandong, China
Contact: Ms yanan yang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Blue-white;	Control system:	FS full-closed loop servo control;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Cooling Mode:	WATER COOLING;
Application:	LASER CUTTING;	Certification:	ce,ISO,IAF;
After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Laser Source Brand:	IPG;
Laser Head Brand:	Raytools;	Condition:	New;
Optical Lens Brand:	Wavelength;	Warranty of core components:	3 years;
Place of Origin:	Shandong China;	Cutting Area:	2500mm*1300mm;
Laser Type:	Fiber Laser;	Packaging Detail:	1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool 2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time. 3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.;
Graphic Format Supported:	AI,BMP,Dst,Dwg,DXF,DXP,LAS,PLT;	Weight (KG):	8000 KG;
transmission:	TBI ballscrew;	Showroom Location:	United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,South Korea;
Marketing Type:	Ordinary Product;	Laser power:	300w / 500w;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Core Components:	Pressure vessel,Motor,Bearing,Gear,Pump,Gearbox,Engine,PLC;
Control Software:	Cypcut;	Product name:	China suppliers good performance cost ratio diamond cutting machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal tradeassurance;	Function:	Cutting Metal Materials;
Cutting Speed:	0-40000mm/min;	Brand Name:	G.weike;
Repeated positioning accuracy:	±0.02mm;	laser head:	Worthing / II-VI / lasermech;
Key Selling Points:	Competitive Price;	Applicable Material:	metal,China suppliers good performance cost ratio diamond cutting machine;
Warranty:	3 years;	Supply Ability:	50 Set/Sets per Month laser diamond cutting machine;
Cutting Thickness:	Materials;	CNC or Not:	YES;
Machinery Test Report:	Provided;	Port:	Qingdao,shenzhen,shanghai,guangzhou;
Fiber laser generator:	Chinese Raycus / USA IPG;	Video outgoing-inspection:	Provided;
Local Service Location:	Egypt,Turkey,United States,Italy,France,Germany,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand;

Hot Sale Product

2017 Brand New stainless steel laser cutting machine with Germany system

GWEIKE Laser Welding Machine

G.WEIKE Metal Tube And Plate Laser Cutting Machine

CO2 Laser Cutting And Engraving Machine

Product Description

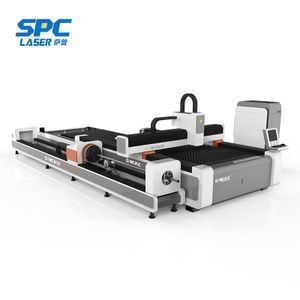

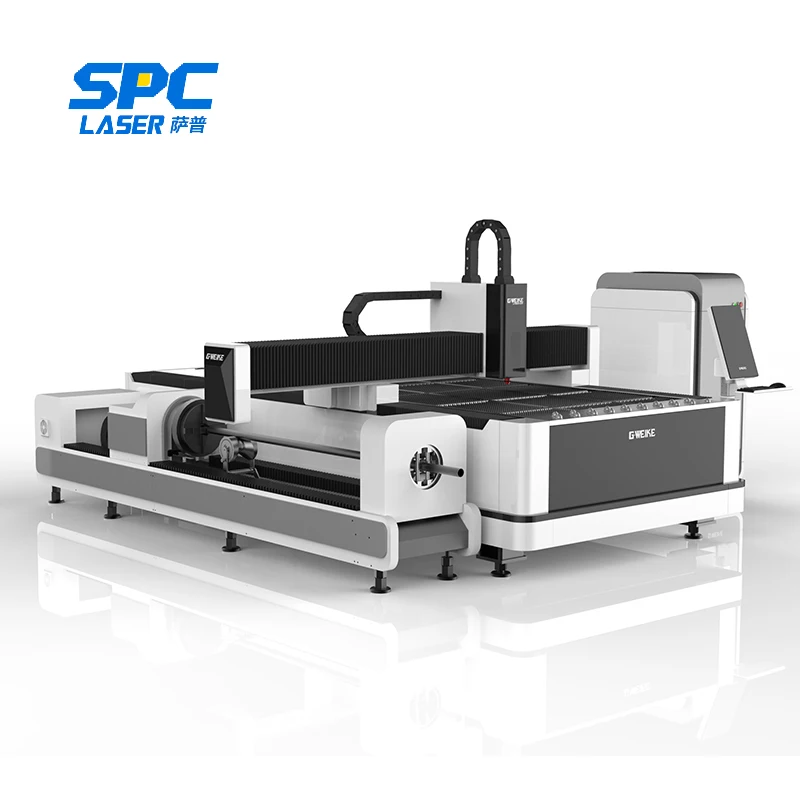

LF3015GCR fiber laser cutting machine from G.weike laser used to cut metal materials special design

LF3015GCR :1000W 2000W 3000W 4000W 6000W

1.Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
2.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
3.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
4.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
5.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

1.Swiss brand Raytools laser cutting head ,Germany brand Precitec laser cutting head as optional

2.Japan Yaskawa servo motor and drivers

3.Germany Atlanta Gear and Rack

4.French Motoreducer ,Germany Neugart Reducer as optional

5.IPG Laser source or Raycus laser source

6.LF3015GCR equipped with exchange table and control cabinet

7.Taiwan Hiwin linear guide rail and cypcut operating system

Application industry

Application materials

Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials

Laser medium	LF3015L China suppliers good performance cost ratio diamond cutting machine
Cutting scope	Fiber and Co2
Cutting Speed(max)	0-120m/min
Cooling model	Water cooling with high precision constant temperature water chiller
Laser power	1000W 2000W 3000W
Fiber laser generator	Chinese Raycus / USA IPG
Laser head	Raytools
Control system	FS full-closed loop servo control
Machine dimension	7800x3580x2150mm
Continuous Operating Hours	24h

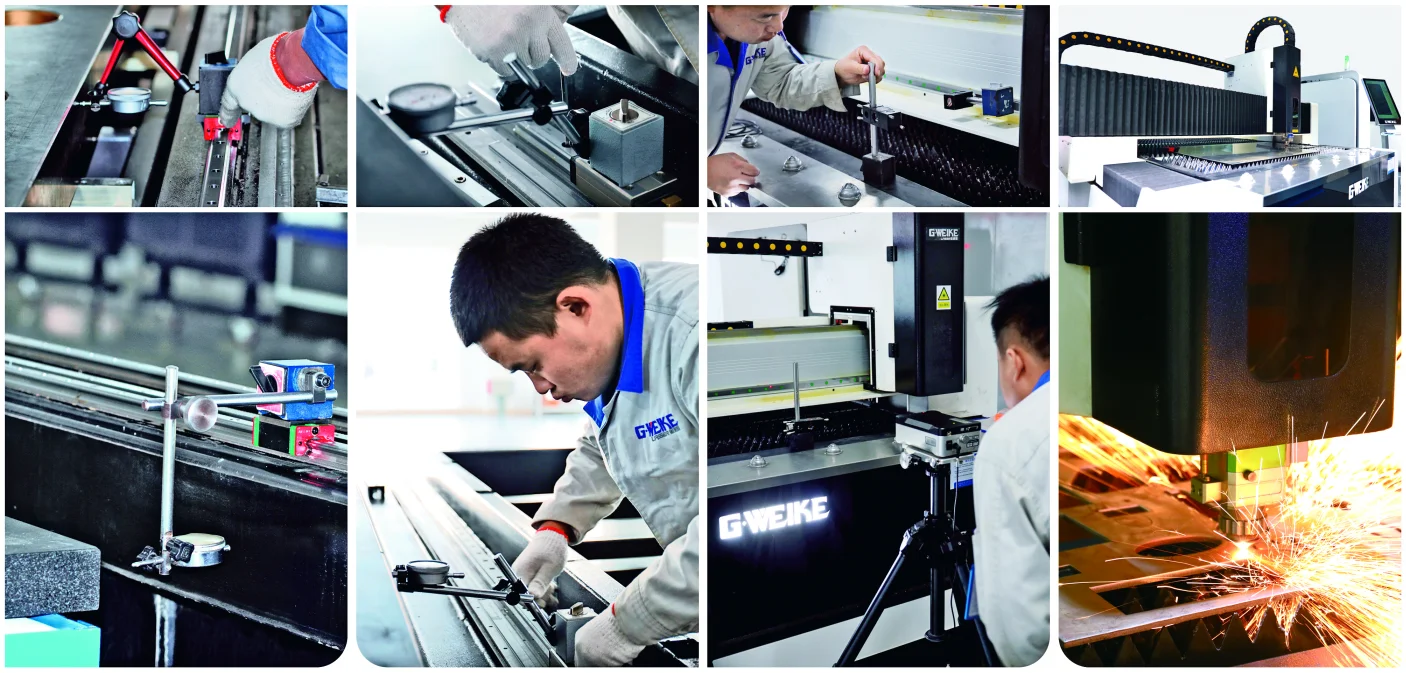

Quality Control

Packaging & Shipping

Company Information

Customer

CE/ISO

Warranty and service

Three years warranty for machine. English technical to door service.

English manual and Video CD for machine using and maintenance.We offer free training in our factory,

Free accessories :Software ,manual, book, cd videos, USBcontrol

1.Pre-sales service A. Free sample making For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.

B. Progressing Solution Design According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

2.After-sales service: Training to install(3options): A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting. B. You can come to our factory for training. Gweike will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.

Engineers service machinery overseas

Modern Factory and Office Environment

370,000 m² Suncun Manufacturing Base in Jinan High-Tech Zone

700 m² modern office place of Research & Development and marketing

7,000 m²Manufacturing Base in Jinan Licheng District

What's the max. cutting thickness?

Cutting thickness is related to laser power.

300W: 1.5mm stainless steel, 4mm carbon steel

500W: 3mm stainless steel, 6mm carbon steel

1000W: 5mm stainless steel, 12mm carbon steel

2000W: 10mm stainless steel, 18mm carbon steel

Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.
