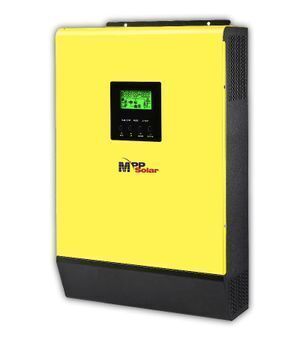

(HV2) 5000w Hybrid inverter 48v 230vac high PV input 450Vdc +mppt solar charger 80A+battery charger 60A

Supplier: MPPSOLAR INC.
Region: Taiwan, China
Contact: Ms Linda Huang
Price: $530.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output Frequency:	50hz or 60hz;	Output Current:	22.7ah;
Output Voltage:	220vac ~ 240vac;	Surge Output:	5000W, max 5 sec;
Inverter Efficiency:	99%;	Max Continuous Output:	5000w;
Type:	DC/AC Inverters;	Battery Charger:	60A;
Solar Charger:	80A;	Output Type:	Single;
Output Wave Form:	Pure Sine Wave;	Place of Origin:	Taiwan;
Input Voltage:	220vac ~ 240vac;	Package Preview:	;
Brand Name:	MPP SOLAR;	Warranty:	1 year;
Packaging Detail:	Carton;	Weight:	13kg;
Input Battery Voltage:	48v;	Single gross weight:	14.0 KG;
Selling Units:	Single item;	Size:	5000w;
Single package size:	59X39X30 cm;	Model Number:	HV V2 5048;
Certificate:	CE, EN;

SPECIAL FEATURES

High PV input design, 450V (Voc) max input
Parallel up to 9 units*
Batteryless operation (single unit mode only)**
Hybrid Mode, Off-Grid Mode available

MAIN FEATURES

220-240V European type output, Single Phase
Max 5KV output, pure sine wave
48V system voltage
Max solar charging 80A MPPT type
Max utility charging 60A
Supports generator use + genset starter dry conact (grid-tie disabled)
Adjustable bulk/float/low cut off setting
Programmabel parameters
Indoor installation only
LCD + LED indicators
FREE monitoring software
USB, RS232 communication interface
Lightweight, easy to install
