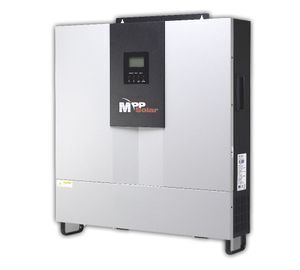

Split Phase Solar inverter 5000w 48vdc 110v 220v + Dual 80A mppt solar charger + battery charger parallel able

Supplier: MPPSOLAR INC.
Region: Taiwan, China
Contact: Ms Linda Huang
Price: $878.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output Current:	AC;	Type:	DC/AC Inverters;
Split Phase Capable:	YES;	Model Number:	LV 5048;
Surge Output:	10KW, max 5 sec;	Solar Charger:	80A * 2;
Output Type:	DUAL;	Battery Charger:	60A;
Certificate:	CE EMC;	Max Continuous Output:	5000w;
Weight:	33kg;	Single package size:	62X61X13 cm;
Place of Origin:	Taiwan, China;	Package Preview:	;
Packaging Detail:	carton;	Size:	623610130;
Brand Name:	MPP Solar;	Inverter Efficiency:	95~99%;
Single gross weight:	34.0 KG;	Output Wave Form:	Pure Sine Wave;
Output Voltage:	110/208/240 VAC;	Input Voltage:	101/110/120 VAC;
Selling Units:	Single item;	Output Frequency:	50Hz or 60Hz;
Input Battery Voltage:	48v;

SPECIAL FEATURES

120V/240V Split Phase capable
208V 3-Phase Support (3 unit parallel)
Dual MPPT 80A each (total 160A)
Max 8KW PV array support
Max PV input 145V (Voc)
Parallel up to 3 units*

MAIN FEATURES

120V/240V/208V output voltage, suitable for USA / PR
Max 5KV output, pure sine wave
48V system voltage
Max solar charging 80A MPPT (each PV input)
Max utility charging 60A
Built-in genset starter dry contact
Extensive programmable functions
Adjustable bulk/float/low cut off setting
Indoor installation only
LCD + LED indicators
FREE monitoring software

*parallel kit required (one for each inverter)
