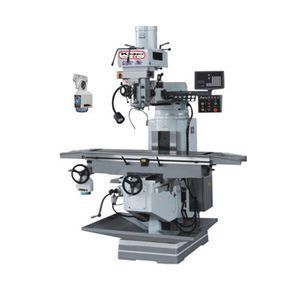

Universal Vertical CNC Milling Machine original Manufacturer
- 3000.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Single package size: | 2100X417X417 cm; | Table size: | customerized; |
| Brand Name: | T-ONE; | Condition: | New; |
| Machine Type: | Cnc Vertical Milling Machine; | Place of Origin: | China (Mainland); |
| Package Type: | wooden carton; | Package Preview: | https://sc02.alicdn.com/kf/HTB1oneuXN3IL1JjSZPfq6ArUVXaR.jpg_640x640.jpg; |
| Spindle Speed: | 50-1430rmp; | Application: | Metal Machining; |
| Power(W): | 1.5KW; | Color: | Grey/Black/white; |
| Single gross weight: | 2,200 KG; | Delivery Detail: | 0 days after payment; |
| Warranty: | 1 Year; | Voltage: | Customer Requirement; |
| Selling Units: | Single item; | Usage: | General; |
| After-sales Service Provided: | No overseas service provided; | Weight: | 2200kg; |
| CNC or Not: | CNC; | Name: | high quality mini Miling Machine made by China top 3 manufacturer; |
| Certification: | CE ISO9001; | Dimension(L*W*H): | Customizable; |
| Type: | Universal; | After-sales Service Provided: | Online support; |
Product Description
Universal Vertical CNC Milling Machine original Manufacturer
- hight quality and perfect post-service
- competitive price
- prompt delivery time
Various types of products specifications:
| Model | 3H |
| Table dimensions | 254×1270mm |
| Table load | 300kgs |
| X/Y/Z travel | 890/384/407mm |
| Spindle vertical stroke | 127mm |
| Spindle automatically feed | 0.04/0.08/0.15mm/rev |
| Spindle taper | R8,NT30 |
| Spindle motor | 3HP |
| Spindle center to column surface | 172-756mm |
| Spindle nose begins to table surface | 0-458mm |
| Head rotation Angle | 45°(F/B,L/R) |
| Stretched out arm stroke | 458mm |
| Spindle rotating speed | 80-5440,16Steps |
| Machine net weight | 1250kgs |
+
| Model | 4S |
| Table dimensions | 254×1270mm |
| Table load | 300kgs |
| X/Y/Z travel | 890/385/407mm |
| Spindle vertical stroke | 127mm |
| Spindle automatically feed | 0.04/0.08/0.15mm/rev |
| Spindle taper | R8,NT30 |
| Spindle motor | 3HP |
| Spindle center to column surface | 172-756mm |
| Spindle nose begins to table surface | 0-458mm |
| Head rotation Angle | 45°(F/B,L/R) |
| Stretched out arm stroke | 458mm |
| Spindle rotating speed | 80-5440,16Steps |
| Machine net weight | 1250kgs |
+
| Model | 5H |
| Table dimensions | 254×1270mm |
| Table load | 340kgs |
| X/Y/Z travel | 890/407/407mm |
| Spindle vertical stroke | 127mm |
| Spindle automatically feed | 0.04/0.08/0.15mm/rev |
| Spindle taper | I.S.O 40 |
| Spindle motor | 5HP |
| Spindle center to column surface | 172-756mm |
| Spindle nose begins to table surface | 0-458mm |
| Head rotation Angle | 45°(F/B,L/R) |
| Stretched out arm stroke | 458mm |
| Spindle rotating speed | 60-3600,10Steps |
| Machine net weight | 1450kgs |
+
| Model | 6H |
| Table dimensions | 305×1370mm |
| Table load | 340kgs |
| X/Y/Z travel | 780/400/450mm |
| Spindle vertical stroke | 125mm |
| Spindle automatically feed | 0.04/0.08/0.15mm/rev |
| Spindle taper | I.S.O 40 |
| Spindle motor | 5HP |
| Spindle center to column surface | 172-756mm |
| Spindle nose begins to table surface | 10-540mm |
| Head rotation Angle | 45°(L/R) |
| Stretched out arm stroke | 500mm |
| Spindle rotating speed | 60-3600,10Steps |
| Machine net weight | 1800kgs |
