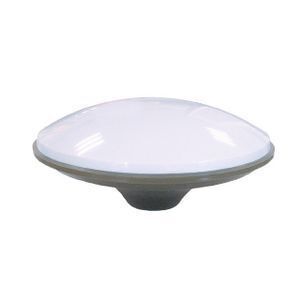

JCA228F Full Band GPS GLONASS BD Galileo High Precision GNSS Surveying gps rtk antenna
-
Supplier: Zhejiang Jc Antenna Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr jack Chen -
Price: $90.00 /piece -
Min. Order: 1 piece
| Operating Temperature: | -40℃~+85℃; | Phase Center Error: | ±2mm; |
| Single gross weight: | 0.9 KG; | Selling Units: | Single item; |
| Name: | Surveying Antenna; | Frequency: | GPS GLONASS COMPASS Galileo; |
| Packaging Detail: | 28pcs:505*225*360MM 14KG/CARTON; | Certification: | Reach; |
| Mounting Method: | Screw; | Single package size: | 17X8X12 cm; |

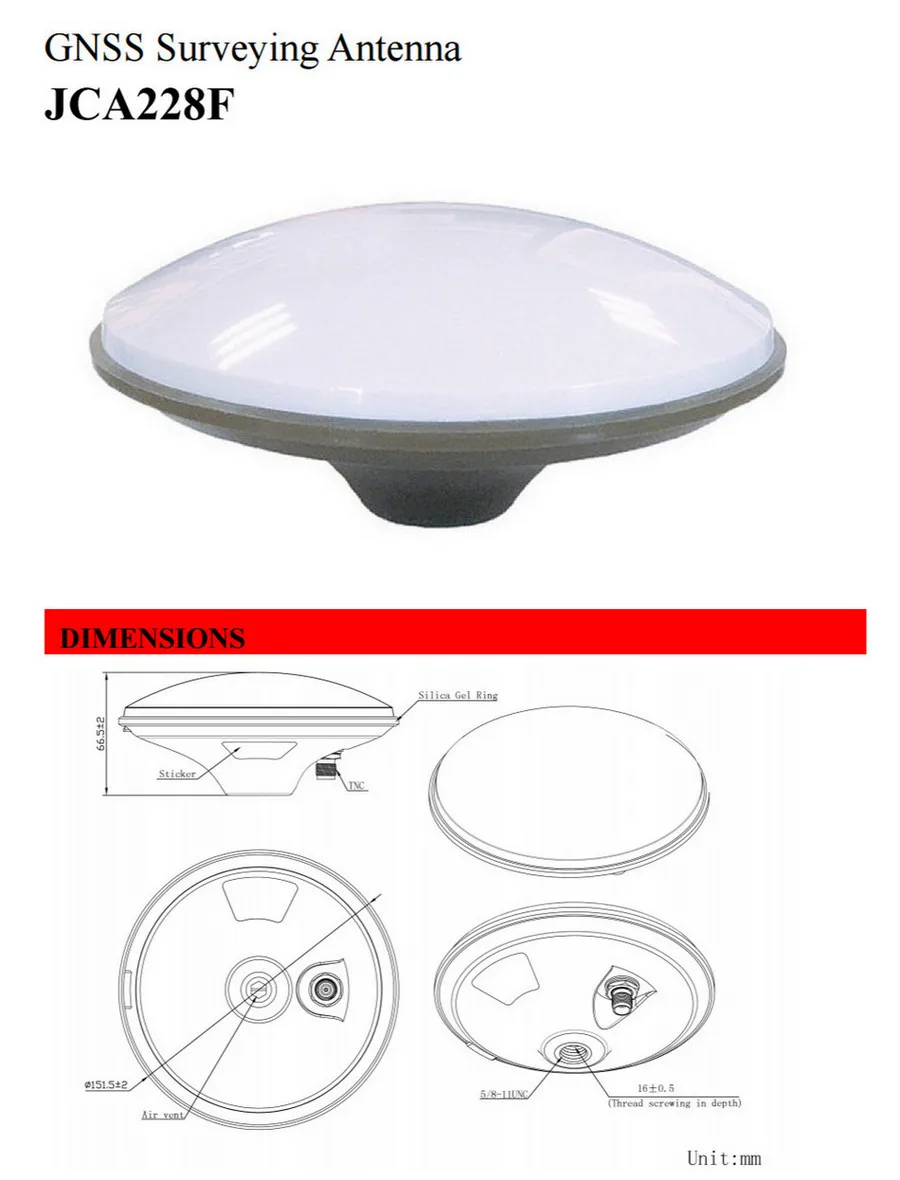

| size: | D151.5*66.5mm; | Peak Gain: | ≥5dBi; |
| Brand Name: | JINCHANG; | Connector: | TNC-K; |
| Horizontal coverage angle: | 360°; | Customized support: | OEM; |
| Place of Origin: | Zhejiang China; | Warranty: | 6 months; |
| Axial Ratio: | ≤3dB; |
BACK TO HOME ≥≥≥
JCA228F Full Band GPS GLONASS BD Galileo High Precision GNSS Surveying gps rtk antenna
| Item | Specifications | |
| Antenna | Frequency | GPS L1/L2/L5/L-Band |
| GLONASS G1/G2/G3 | ||
| COMPASS B1/B2/B3 | ||
| Galileo E1/L1/E2/E5a/E5b/E6 | ||
| Polarization | RHCP | |
| Axial Ratio | ≤3dB | |
| V.S.W.R | ≤1.5 | |
| Peak Gain | ≥5dBi | |
| Impedance | 50Ω | |
| Phase Center Error | ±2mm | |
| Horizontal coverage angle | 360° | |
| LNA | Gain | 40±2dB |
| Noise Figure | ≤1.5dB | |
| Passband fluctuation | ±1dB | |
| Supply Voltage | 3~5.5V DC | |
| Current Consumption | ≤45mA | |
| V.S.W.R | ≤2.0 | |
| Mechanical | Connector | TNC-K |
| Radome Material | ABS | |
| Mounting Method | Screw | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Ingress Protection | IP67 (exclude Air vent in screw hole) | |
| Environmentally Friendly | ROHS Compliant | |
If you have other requirements, please click here
to share them with me!
If you need a personalized product, we offer professional customization!
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
If you have any questions please send message to us , we will reply in time. Thanks for you time!
