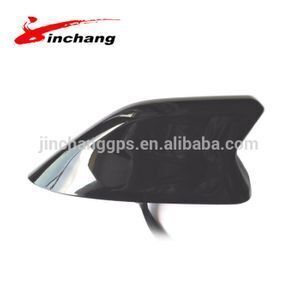

JCM072 Shark Fin GPS+LTE MIMO+FM/AM Combination car auto Antenna
- 18.50 >=2 pieces
| GPS Antenna Center Frequency: | 1575.42±3MHz; | Frequence Range: | GPS+LTE MIMO+FM/AM; |
| Place of Origin: | Zhejiang China; | Selling Units: | Single item; |
| Car Make: | ALL CAR; | Cable Length: | /; |
| LTE Antenna Center Frequency: | 698~960/MHz/1710~2690MHz; | Model Number: | JCM072; |
| Cable: | RG174; | Connector: | FAKRA; |
| Brand Name: | JINCHANG; | Gain(dB): | 2DBI; |
| Single package size: | 10X10X18 cm; | Single gross weight: | 0.9 KG; |
| Cable Length: | 3m; | Package Type: | 49.5*22.5*27cm/carton; |
| FM/AM Center Frequency: | 520~1629KHz/76~108MHz; |
BACK TO HOME ≥≥≥
JCM072 Shark Fin GPS+LTE MIMO+FM/AM Combination car auto Antenna
| Item | Specifications | ||

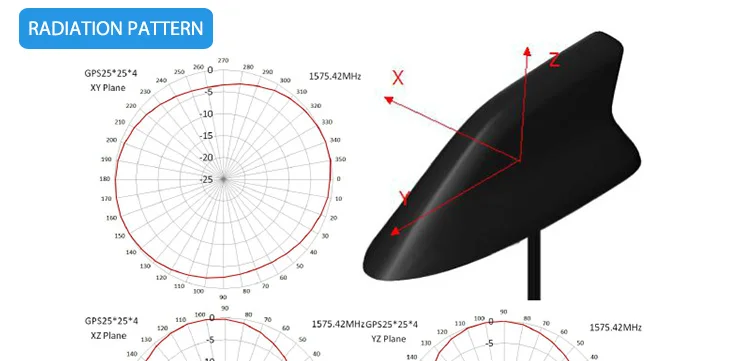

| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±3MHz |
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <2.0dB | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 3~5V DC | ||
| Current Consumption | 5~15mA | ||
| LTE Antenna MAIN | Frequency Range | 698~960/MHz/1710~2690MHz | |
| V.S.W.R | <3.0 | ||
| Polarization | Linear | ||
| Gain | 3.5dBi(Zenith) | ||
| Impendance | 50Ω | ||
| LTE Antenna AUX | Frequency Range | 698~960/MHz/1710~2690MHz | |
| V.S.W.R | <3.0 | ||
| Polarization | Linear | ||
| Gain | 3.0dBi(Zenith) | ||
| Impendance | 50Ω | ||
| FM/AM Antenna | Frequency Range | 520~1629KHz/76~108MHz | |
| V.S.W.R | <2.5 | ||
| Polarization | Linear | ||
| Gain | FM:16±3dB;AM:5±3dB | ||
| Impendance | 50Ω | ||
| Supply Voltage | 9~16V DC | ||

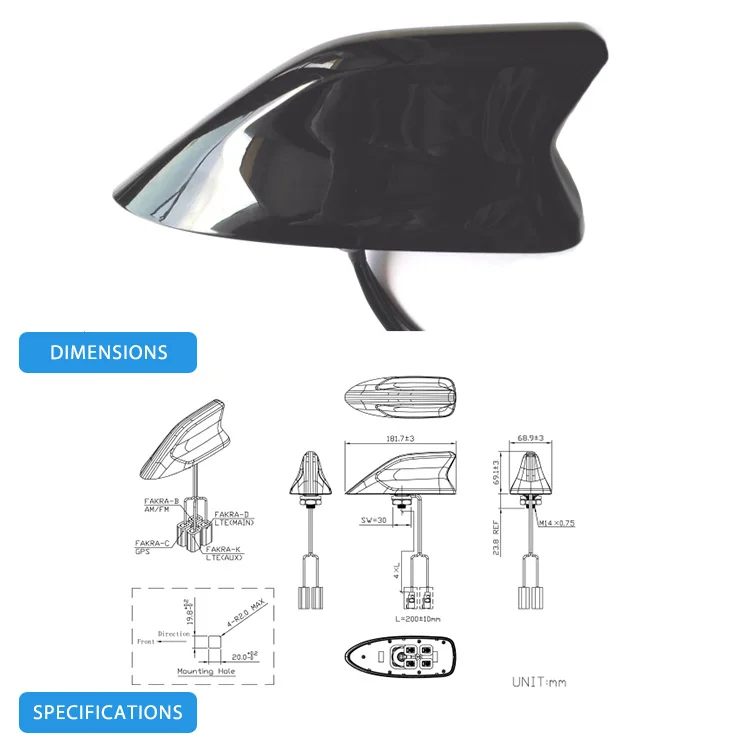

| Mechanical | Cable | RG174 | |
| Connector | FAKRA or others | ||
| Mounting Method | Screw | ||
If you have other requirements, please click here
to share them with me!
If you need a personalized product, we offer professional customization!
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
If you have any questions please send message to us , we will reply in time. Thanks for you time!
