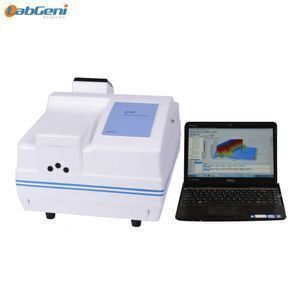

Fluorescence Spectrophotometer , spectrofluorometer, SP-F97

Product details
Weight:GW 14kg, NW 12kg;warranty:1 year;
Size:380x445x310mm;Supply Ability:100 Set/Sets per Month;
Port:any port in China;Wavelength Range:200nm~900nm for Emission;
Place of Origin:Shanghai China;Model Number:SP-F97 Series;
Packaging Detail:package suitable for export;Brand Name:Labgeni;
Payment Terms:L/C,T/T,Western Union;



SP-F97/F97pro fluorescent spectrophotometer is a new generation of high performance molecular luminescence analysis instrument. The product structure is exquisite, has the characteristics of high detection sensitivity, fast scanning speed, wide spectrum measuring range, high dynamic range, fast 3D scanning, and so on. Easily meet the requirements in the field of material research, pharmaceutical analysis, biochemical and clinical testing, water quality analysis and control, food safety testing (dairy products, aquatic products, such as vitamin C, selenium, aflatoxin), and other areas.



Features:
High detection sensitivity: based on high efficiency optical design and weak signal detection technology, the water Raman peak signal to noise ratio can be greater than 200 (P - P) to the leading domestic and international advanced level.
High scanning speed: the high speed digital signal processing unit provides the world's fastest scanning speed at 48000nm/min. Only 1 second to get classic fluorescence spectra, 1 minute to get high quality of three-dimensional fluorescence spectra.
Wide Spectral measurement range: using a double monochromator design, excitation and emission continuous spectral range covering 200 nm to 900 nm, meet the needs of most of the fluorescence analysis of the test.
Excitation light path monitoring system: instrument is equipped with excitation light dual beam ratio monitoring system to ensure the fluorescence signal high and stable.
High quality assurance: using Hamamatsu’s high quality longevity life Xenon light source and photoelectric multiplier tube detectors and instruments to provide sufficient light intensity signal and the detection sensitivity.
Built-in optical gate: built-in programming control optical gate device, specifically for prone to reaction to light or fluorescence signal unstable sample design, through a unified excitation detection to improve the accuracy of fluorescence analysis.



Specification

Model

SP-F97

SP-F97pro

SP-97xp

Detection sensitivity (water Raman peak signal noise ratio)

 S/N ≥150 (P-P)

S/N ≥200 (P-P)

Excitation wavelength Bandwidth

 10nm

 2nm/5nm/10nm/20nm

Emission wavelength Bandwidth

 10nm

 2nm/5nm/10nm/20nm

Wavelength accuracy

 ± 1.0nm

 ± 1.0nm

±0.4nm

Wavelength repeatability

 ≤0.5nm

 ≤0.5nm

≤0.2nm

Light source

150W automatic deodorizing xenon lamp (Hamamatsu, Japan)

Optical system

Double-grating monochromator automatic wavelength scanning with optical excitation double beam ratio monitoring

Fluorescence Receiver

Original photomultiplier (Hamamatsu, Japan)

Excitation wavelength range

 200nm~900nm

Emission wavelength range

 200nm~900nm

Wavelength scanning speed

 10 positions, fastest 48000nm/min, fine scanning 15nm/min

Measurement line

≥0.995

Gain adjustment range

 1~17 position optional

Integral Response time

 6 position options: 4s ~ 20ms

Data output

 Microsoft (R) Excel format, bmp image format

Data transmission

 USB2.0 Interface

Light value range

 0.00-10000

Peak intensity Repeatability

 ≤1.5%

Power source

 220V / 50Hz, 110V / 60Hz

Standard energy consumption

 200W

Dimensions (mm)

 380×445×310

Weight

 GW 14kg, NW 12kg
