TS16949 certificate anti-clamping Pneumatic Bus Door Mechanism for Daewoo bus
-
Supplier: Shanghai Trion Industrial Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Sherry Xu -
Price: $100.00 /set -
Min. Order: 1 set
Product details
| Open Direction: | LH/RH; | Delivery Detail: | 2 weeks; |
| Size: | Customized; | Certificate: | ISO/TS16949; |
| OEM No.: | SOD100P; | Type: | Doors; |
| Material: | Aluminum Alloy; | Feature: | Anti-pinch; |
| Port: | Shanghai; | Advantage: | inside and outside sealing; |
| Applicable Vehicle: | Coaches, Mini buses,Intercity Bus; | Name: | TS16949 certificate Pneumatic Bus Door Mechanism for Daewoo bus; |
| Packaging Detail: | Wooden Cases or as customer requirement Gross weight of one set: 26-28kgs Dimension: depends on different design; | Supply Ability: | 2000 Set/Sets per Month; |
| Payment Terms: | T/T,Western Union,Paypal; | Bus Model: | Universal; |
Product Description
Product Name :TS16949 certificate anti-clamping Pneumatic Bus Door Mechanism for Daewoo bus
1. Introduction:
Application: tour bus,intercity bus,coach.

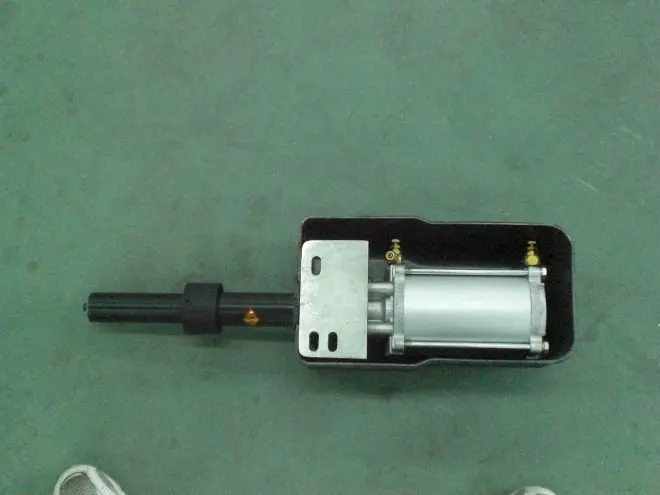

System Component: Rotary actuator, Shaft assembly
1) The actuator provides rotary motion and “Lift-to-latch” feature. With solenoid valve
2) The shaft assembly has long or short as options
2. Operating principle:
1)Auto operation with switch on dashboard
2)Emergency release with emergency valve inside and outside
3) Anti-Clamping with electricity and air
3. Main Parameter:
Maximum torque in locked position | (@90 psi) 122 ft-lbs |
Recommended door shaft rotation | 90 degree |
Operating temperature | -40°C to 80°C |
Envelope size | 5.51”w x 12.50”d x 4.53”h |
Operating pressure | 90-125 psi |
Minimum Life cycle | 500,000 |
Locking mechanism | Local wedge lock |
Door opening/closing time | 3-5 seconds |
Company Information
Shanghai TRION Industrial Co.,Ltd.
Main products:
1. Bus door system
2. Bus Door Mechanism
3. Bus door cylinder assembly/Bus door motor assembly
4. Folding bus door mechanism
5. Bus luggage compartment door mechanism
6. Bus Body Parts
