Anti-pinch Electric Bus Motor For DAEWOO Bus Parts and Accessories

Supplier: Shanghai Trion Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Sherry Xu
Price: $100.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Dimension:	Customized;	Payment Terms:	T/T;
Safety Feature:	Anti-pinch / Emergency Release;	Used for:	Mini Bus;Van;
Size:	Customized;	Lifetime:	500000times;
Supply Ability:	2000 Set/Sets per Month;	OEM No.:	SOD100E;
Open Direction:	LH/RH;	Material:	Aluminum;
Certificate:	ISO/TS16949;	Packaging Detail:	Wooden cases or as customer requirement Gross weight: 26-28kgs Dimension: depends on different design;
Type:	Doors;	Delivery Detail:	2 weeks;
Power:	24V/12V;	Port:	Shanghai;
Bus Model:	Universal;

Product Description

I. Product Description

Application: shuttle bus, light and medium coach, utility vehicle, limo-bus and midi-bus.

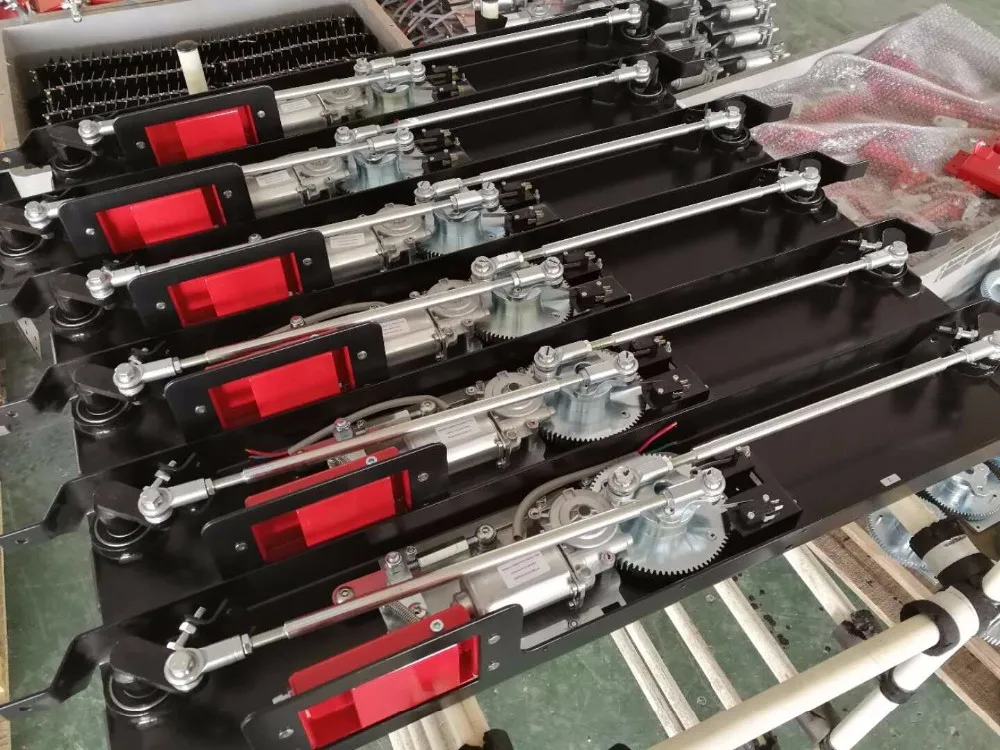

System Component: Rotary actuator assembly, Shaft assembly and Door panel assembly.
1) The Actuator assembly consist of welding motor structure and unit assemblage of pivoted arm.
2) The shaft assembly is designed for easy installation and maintenance.
3) The door panel is made of aluminum alloy, which has the attributes of light weight, high strength and long life.

II. Product Feature

1)Auto operation :It uses direct current motor as power supply, controlled by power switch. The axle of motor rotates clockwise(or anticlockwise).The rotation is decelerated by a turbine-worm gear and two pairs of other gears. When there is rotary moment on the output axes of operator, the door will be opened(closed).After the door and door frame touch, screw lifting mechanism of pivoted arm will begin work, the door will be lifted, and the four locks installed on the door and door frame will be locked.

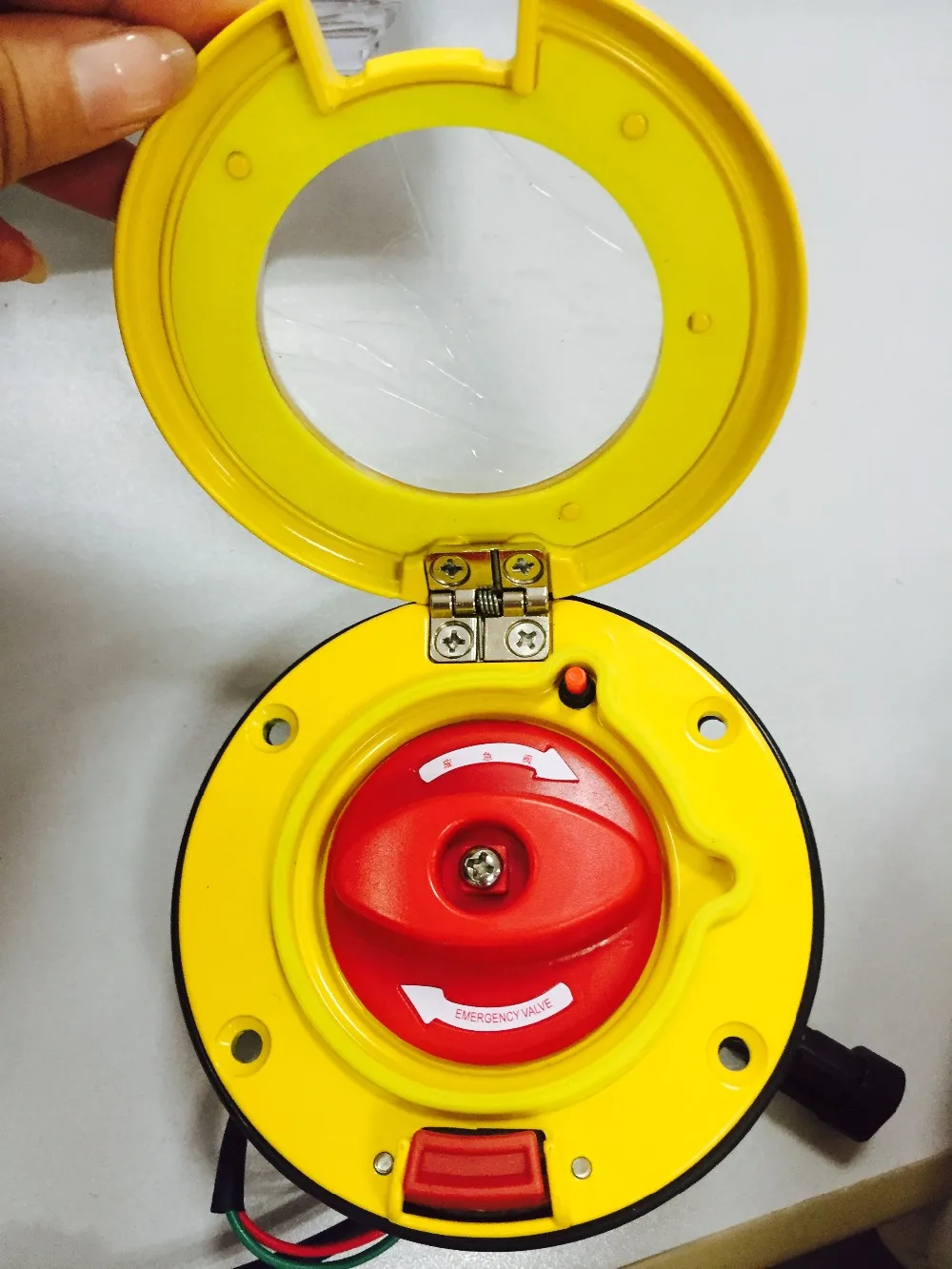

2)Emergency release: In case of emergency, put the red handle in ”manual” position, the door can be opened by hand easily.
3)Prevent from clipping: In the process of closing door, if something or somebody blocks it, the prevention from clipping will work immediately, and the door will open automatically.

III. Main Parameters

1.Specified voltage : DC12V/ DC24V
2.Electric motor specified power : 40W
3.Working speed: 5r/min
4.Max lifting height of the door: 14mm
5.Rotary moment: ＞1000N.m
6.Lifting load: ＜1000N

7.Current of working Process of revolution：3.5A Process of revolution
8.Process of lifting：MAX 7A
9.Allowed ambient temperature -40℃～+55℃

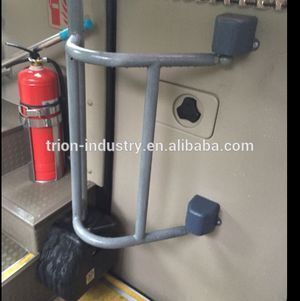

Detailed Images
