Laboratory Constant Temperature Water Bath

Supplier: Chongqing Drawell Instrument Co., Ltd.
Region: Chongqing, China
Contact: Ms Amber Tang
Price: $250.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shanghai China;	Brand Name:	Drawell;
Classification:	Laboratory Thermostatic Devices;	Customized support:	OEM;
Port:	Shanghai;	Warranty:	1 year;
Packaging Detail:	Standard Export Packing;	Display Resoluti on (mm3):	0.1/0.01;
Supply Ability:	500 Piece/Pieces per Year;	Model Number:	SC Series,SC Series;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	Certification:	CE;

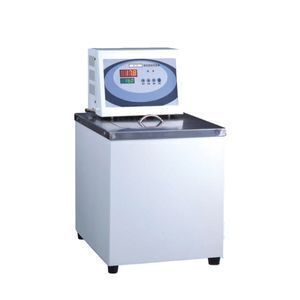

Constant Temperature Water (oil) Bath with Digital Control

SC Series

Product Description

Sc series constant temperature water bath is equipped with a microprocessor intelligent control system. With circulating pump, it can let the heated liquid flow off from the tank and thus establish a second constant-temperature field. It is widely used in research institutes, universities, corporate quality control departments and industrial sectors relating to petroleum, chemical engineering, electronic instruments, physics, chemistry, bio-engineering, medicine and health, life science, light industry and food, materials testing and chemical analysis etc. It can provide for users a working environment where cold or heat was controlled accordingly. As a result, the temperature is kept evenly. Optional volatility ±0.05℃,±0.1℃. Two-color (red and green) LED display with dual window. Available is a large-screen LCD display.It is quick to set the temperature by touching the soft keys and easy to operate.The Micro-Computer can amend deviation of temperature measurements.Temperature display accuracy 0.1℃ or 0.01℃.Fitted with a ultra-temperature alarm system.

Series digital control constant temperature Bath

Model	Temperat- ure Range ℃	Temperat ure Stability ℃	Display Resoluti on (mm3)	Inner Tank size (mm3)	Dep Th (mm)	Pump Flow L/min	Top Opening Dimen (mm)	Drain	NW (kg)	Packing Size (mm)
SC-5A	Ambient+ 5~95	±0.2	0.1/0.01	240×140×150	150	Cycle	130×130	/	9	390350520
SC-15	Ambient+ 5~100	±0.05	0.1/0.01	300×240×200	200	6	235×160	√	12.84	430380570
SC-15A	Ambient+ 5~200	Water ±0.1 oil ±0.2	0.1/0.01	300×240×200	200	Cycle	235×160	/	12.84	440430550
SC-20	Ambient+ 5~100	Water ±0.1 Oil ±0.2	0.1/0.01	500×300×150	150	6	310×280	√	15	660485620
SC-20A	Ambient+ 5~200	Water ±0.1 Oil ±0.2	0.1/0.01	500×300×150	150	Cycle	310×280	/	20	670470510
SC-20B	Ambient+ 5~200	±0.05	0.1/0.01	500×300×150	150	6	310×280	/	20	670470510
SC-15B	Ambient+ 5~200	Water ±0.1 Oil ±0.2	0.1/0.01	300×240×200	200	6	235×160	/	15	670470510
SC-25	Ambient+ 5~100	±0.05	0.1/0.01	280×250×300	300	6	235×160	√	20	460440670
SC-25A	Ambient+ 5~200	Water ±0.1 Oil ±0.2	0.1/0.01	280×250×300	300	Cycle	235×160	/	25	430380650
SC-30	Ambient+ 5~100	±0.05	0.1/0.01	400×330×230	230	6	310×280	√	21.62	550490600
SC-30A	Ambient+ 5~200	Water ±0.1 Oil ±0.2	0.1/0.01	400×330×230	230	Cycle	310×280	/	25.14	640580600
SC-30B	Ambient+ 5~90	±0.05	0.1/0.01	Dia300×300	300	6	Dia150	√	30	480690450
