DW-LC1620A Lab Scale Preparative Hplc High Performance Liquid Chromatography

Click here to contact

Product details

Wavelength range:	190-700nm;	Port:	Shanghai/Chongqing;
Flow rate precision:	RSD≤0.08%(1mL/min, water, room temperature);	Flow rate range:	0.001-9.999mL/min;
Baseline drift:	≤1*10-4AU/h;	Baseline noise:	≤8*10-6AU;
Packaging Detail:	Standard Export Packaging(Safe and Pure English);	Flow rate accuracy:	≤±0.5%(1mL/min, water, room temperature);
Supply Ability:	10.0 Piece/Pieces per Month;	Pressure range:	≤42MPa;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Brand Name:	Drawell;
Place of Origin:	Shanghai China;	Model Number:	DW-LC1620A;
Sample Introduction System:	Isocratic system/Gradient system;	Lamp:	deuterium lamp;
Detection Limit:	4*10-9 g/ml(Naphthalene/methyl alcohol solvent);

Product Description

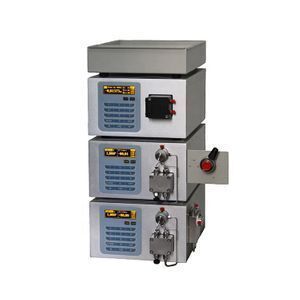

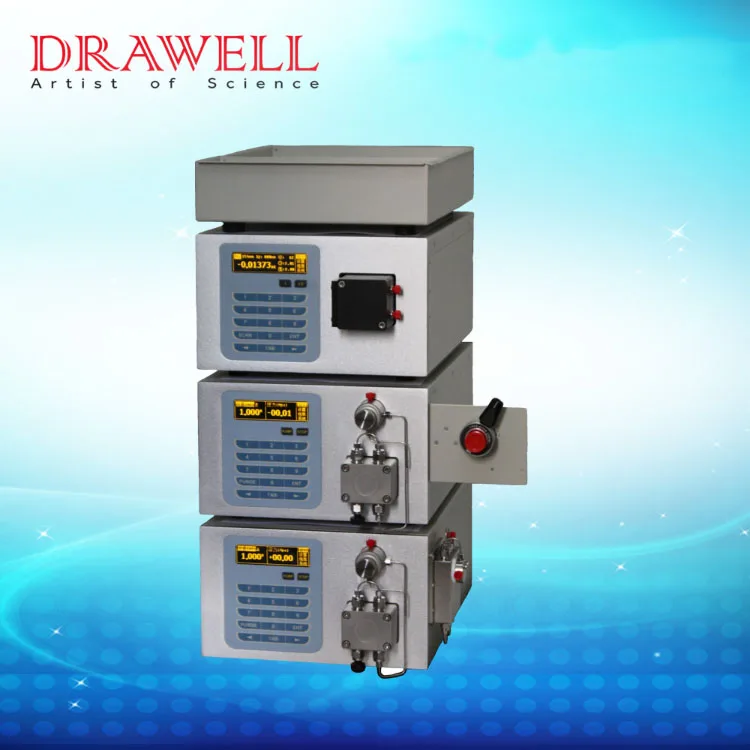

DW-LC1620A Liquid Chromatography
High Performance Liquid Chromatography
Superior high-pressure pump achieves accurate solvent delivery with high-precision and low-fluctuation. Advanced and innovative design modules provide high reliability and accuracy for long time operation. The pump works in-parallel and ensures accuracy and duration. Different kind of detectors, including UV/VIS detector and refractive index detector etc. provide stronger detection capability and more options. Pumping system: Isocratic system and gradient system. UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.

A truly effective HPLC
All maintenance parts are accessible from the front panel for quick replacement without disassembling instrument The monitoring system will stop the pump if pre-limit pressure is exceeded All components are controlled intelligently through workstation Multiple data analysis functions, flexible peak identification and data management, etc
Model#	DW-LC1620A
	Isocratic system	Gradient system
DW-LC1620A Pump	Specifications
	Flow rate range	0.001-9.999mL/min
	Flow rate accuracy	≤±0.5%(1mL/min, water, room temperature)
	Flow rate precision	RSD≤0.08%(1mL/min, water, room temperature)
	Pressure range	≤42MPa

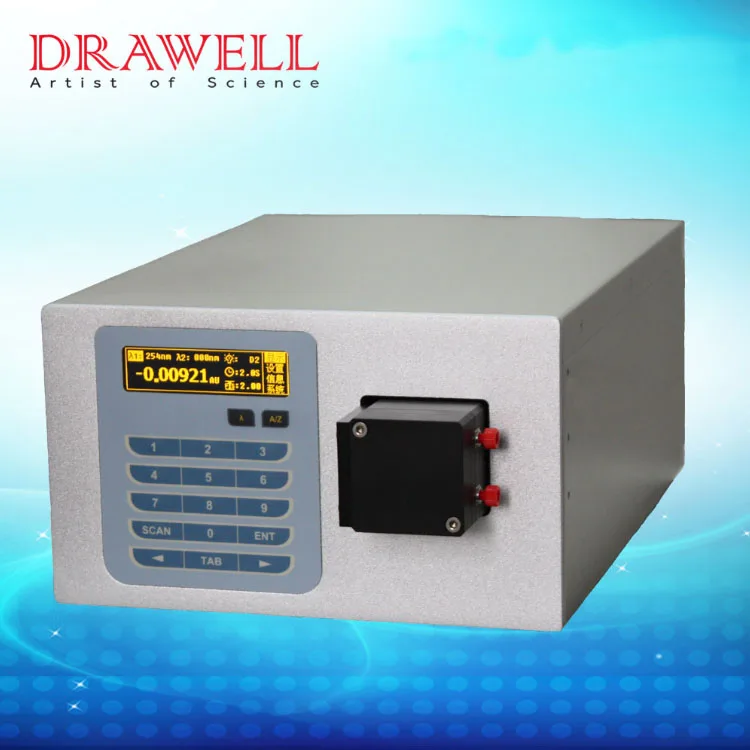

DW-LC1620A UV Detector	Specifications
	Lamp	deuterium lamp
	Wavelength range	190-700nm
	Baseline noise	≤8×10-6AU
	Baseline drift	≤1×10-4AU/h
	Detection Limit	4×10-9 g/ml(Naphthalene/methyl alcohol solvent)
	Wavelength accuracy	±1nm
