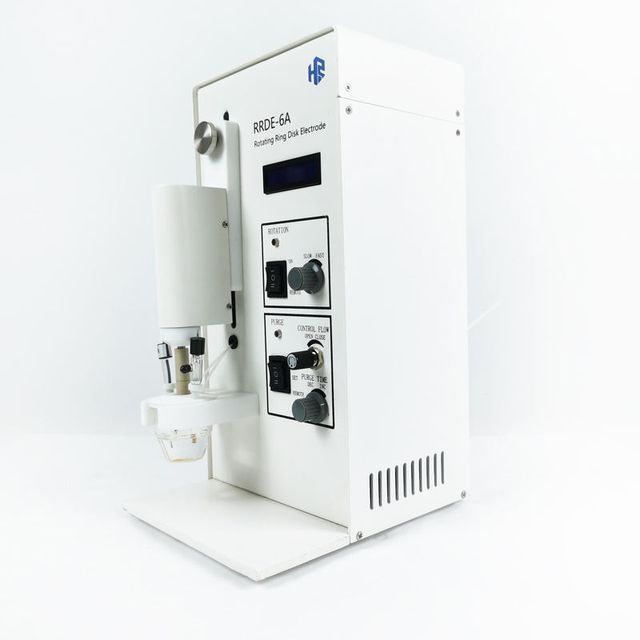

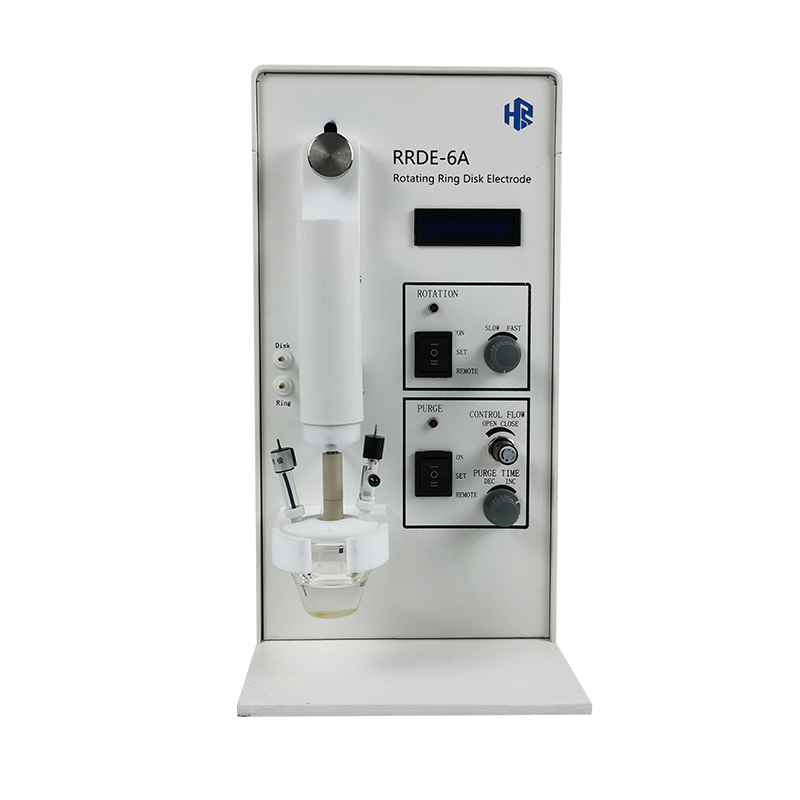

Unique Design Hot Selling RRDE-6A Rotating Ring Disk Electrode Unit Upgraded from RRDE-3A
- 4980.00 1 - 5 sets
- 4680.00 6 - 20 sets
- 4280.00 >=21 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| product name: | rotating disk electrode | Warranty: | 1 year |
| Customization support: | OEM,ODM,OBM | model: | RRDE-6A |
| Packaging Details: | Outer packing carton | Application 2: | material research |
| Application one: | chemical power | port: | Shanghai/Yiwu |
| Package preview: | Key words: | Disk electrode | |
| Types of: | RRDE-6A | Three electrodes: | working electrode |
| place of origin; place of origin: | Jiangsu, China | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Supply capacity: | 50 sets per month | Disk: | Glassy carbon |
| brand: | He Rui | use: | laboratory |
Product Description
1 | aspect | 210(W) x 260(D) x 400mm(H) |
2 | weight | 8.5 kg |
3 | Rotation range: | 10~9500 rpm, the speed can be displayed and continuously adjusted, and the speed can be adjusted by external voltage Signal |
4 | Accuracy error | error < 1% when speed < 1000 rpm, error < 0.5% when speed >= 1000 rpm |
5 | bandwidth | 60 Hz @ 3,500 rpm baseline and 1,000 rpm peak-to-peak modulation |
6 | Shaft Material | Stainless steel |
7 | motor | 24V, low inertia DC servo power < 100VA 100-240 VAC, 50/60 Hz |
8 | Operating temperature: | 10~50℃ |
9 | Intake pressure: | 5 psi max |
10 | remote control | 1V is equivalent to 1000rpm, the output voltage is proportional to the speed |
11 | Equipped with disc electrodes | Disc: glassy carbon, 3mm. Cover material: PEEK |
