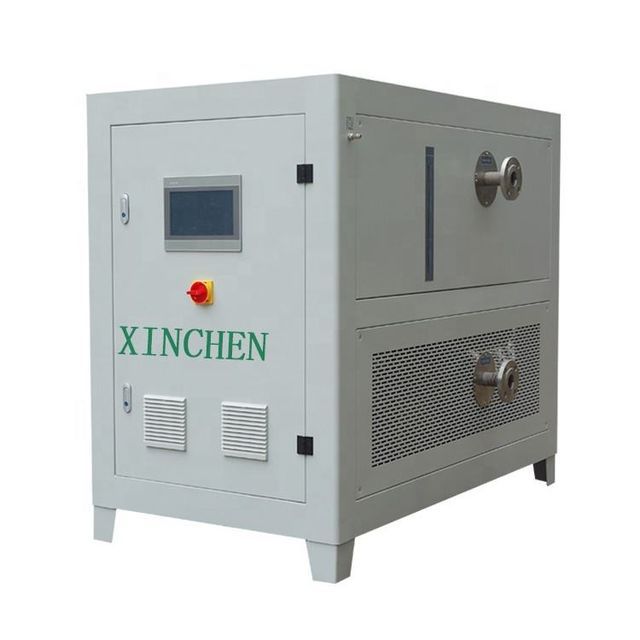

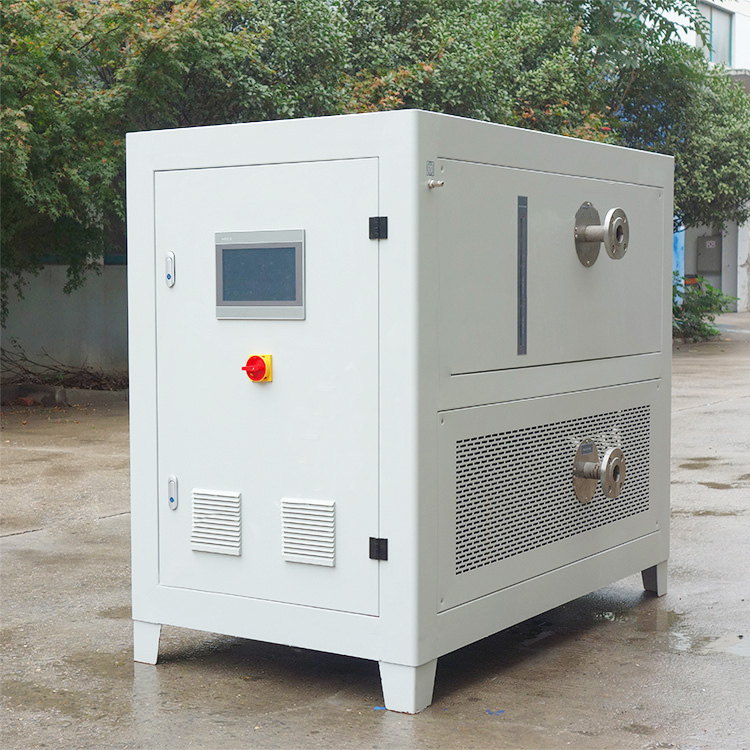

Heating and cooling cycle machinesHeating and cooling cycle machines

Supplier: Nanjing Ningkai Instrument Co., Ltd.
Region: Jiangsu, China
Contact: Mr Yongxin Han
Price: $28000.00 / 1 - 1 sets
$25000.00 / 2 - 2 sets
$24000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

model:	SUNDI-4A38W SUNDI-875	Classification:	Laboratory thermostat
Controller:	Feedforward PID dedicated dynamic control calculation, PLC controller	temperature range:	-45℃-250℃
brand:	new morning	Warranty:	3 years
product name:	Heating and cooling constant temperature control system	Supply capacity:	5 sets per month
communicate:	MODBUS RTU protocol, RS485 interface	temperature. accuracy:	±1℃
Package preview:		temperature. control:	Option: Process Temperature Control Model
Program editor:	20 programs, each program can be edited in 42 steps	port:	Shanghai/Nanjing/Ningbo
refrigerant:	R404A	Packaging details:	wooden box
Place of origin:	Jiangsu, China	heating power:	38kW
Product number:	Sandy-4A38W	Customization support:	OEM, ODM, OBM
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Credit Card or Cash

Product Description

Applications

Our dedicated dynamic heating and cooling temperature control systems have been widely used in chemical industries, pharmaceutical plants, and biological experiments. It has excellent temperature control capabilities in jacketed glass reactors, metal double-layer reactors, thermal test platforms, and food and beverage factories. More importantly, it has good and precise temperature control capabilities for the temperature of materials or mixing tanks.

Product parameters

Model			Sandy-4A38W
temperature range			-45℃～250℃
controller			Feedforward PID + our company’s special dynamic control calculation, PLC controller
temperature. control			Option: Process Temperature Control Model
temperature. the difference			Set or control the temperature difference between jacket oil and raw material process
Program editor			20 programs, each program can be edited in 42 steps
communicate			MODBUS RTU protocol, RS485 interface
temperature feedback			Equipment heat transfer medium inlet temperature, outlet temperature, heater temperature, reactor material temperature (external Temperature sensor) Four point temperature
temperature. accuracy			±1℃
heating power			38kW
Refrigeration capacity	250℃	38kW
		100℃	38kW
		20℃	38kW
		0℃	38kW
		-20℃	26kW
		-35℃	9.0kW
circulation pump			Maximum 150 l/min; 2.5 bar
Operation panel			7-inch color touch screen controller; temperature curve recording, data export to excel format
Security			Self-diagnosis function; Freezer overload protection; High-voltage switch, overload relay, thermal protection device, etc. Multiple safety features
closed circulation system			The entire system is a fully closed system. There will be no oil mist at high temperatures and no moisture in the air at low temperatures. temperature, the system will not increase pressure due to high temperature during operation and will automatically replenish Low temperature heat transfer medium.
refrigerant			R-404A, water cooling system
Connection size			DN40 PN10
Water-cooled W type (cooling water @20℃)			12 cubic meters/hour, 1.5bar~4bar
strength			AC 380V 50HZ 36kw (maximum)

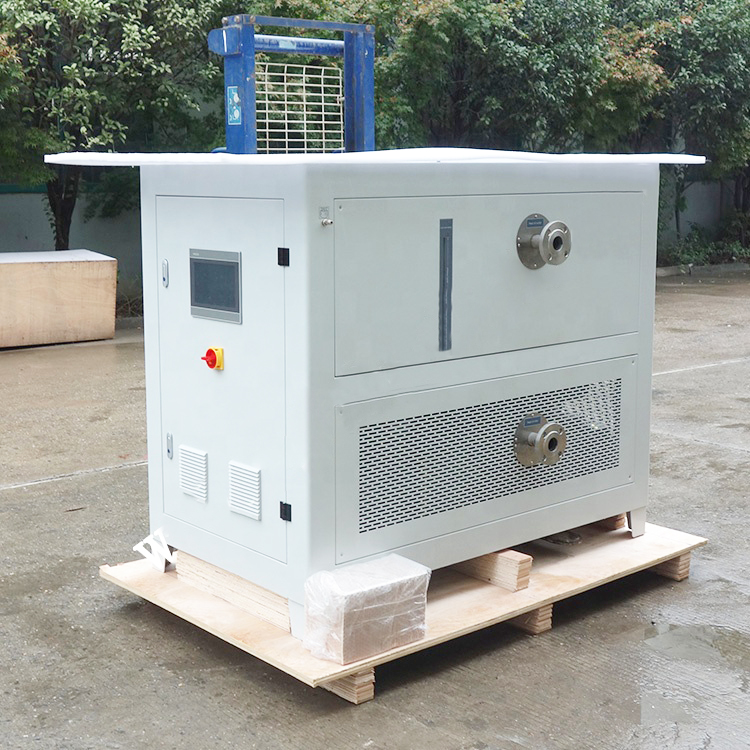

Packaging and shipping

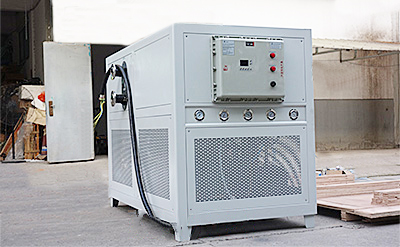

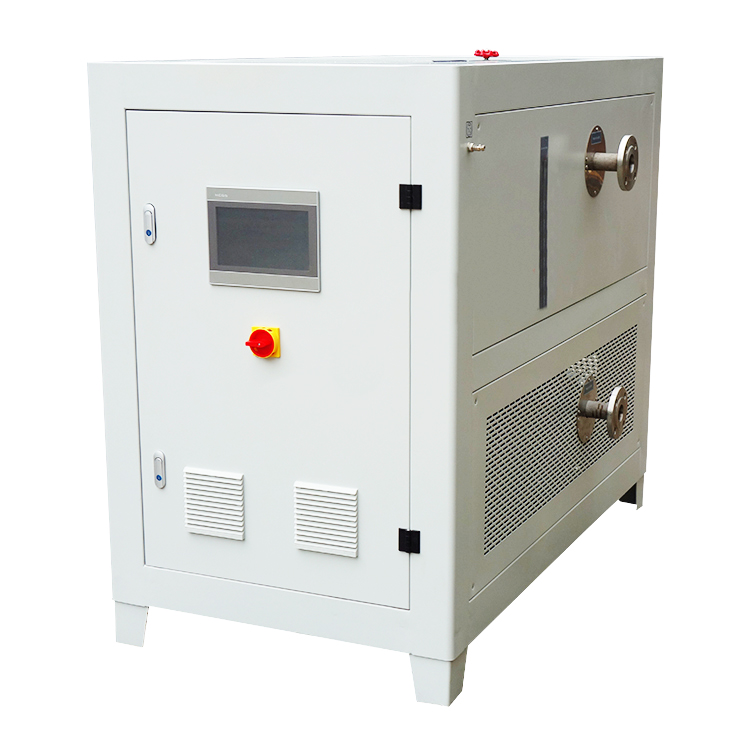

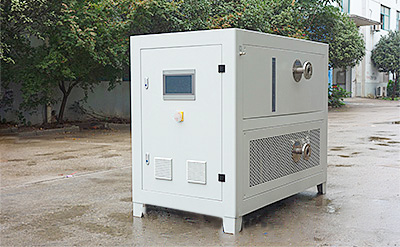

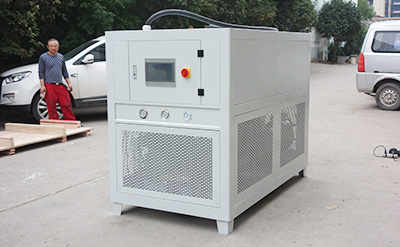

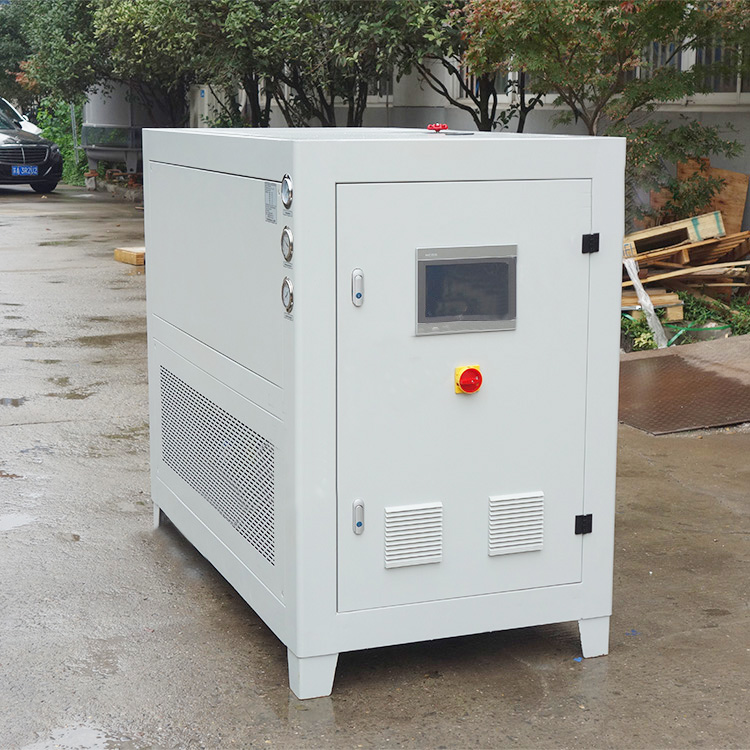

detailed picture

main products

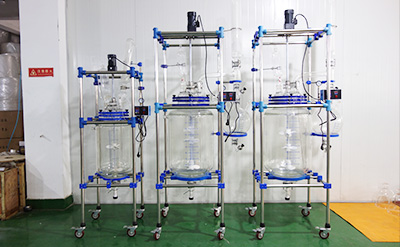

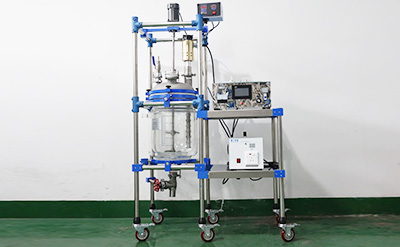

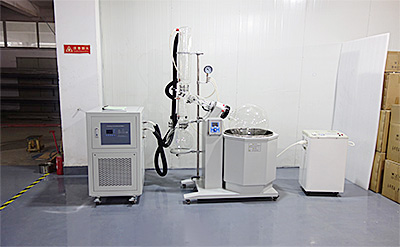

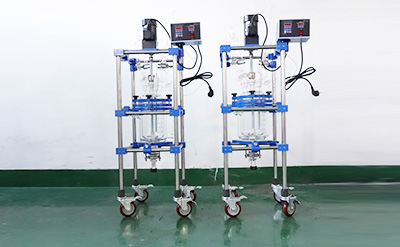

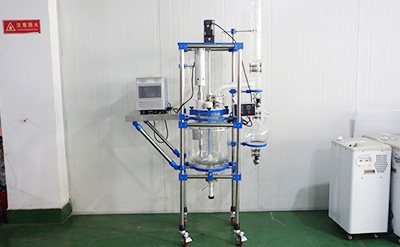

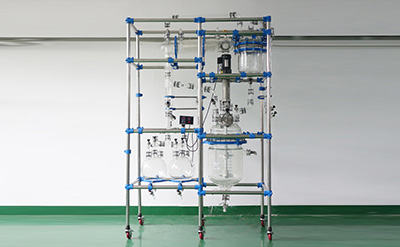

Main products: 10L-200L jacketed glass reactor; 10l-50l standard or explosion-proof rotary evaporator; 50L multifunctional glass reactor; 20L 50L ultrasonic recrystallization filtration reactor; DLS-12EW/EX low temperature circulation pump/circulator; Heating and refrigeration cycle machine.
