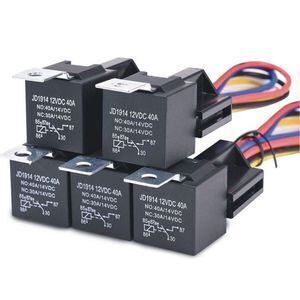

automotive relay 5 pin 5 wires wharness

Product details
Model Number:FLS820-2;Rated Voltage:DC12V/24V;
Ambient Temperature:-40°C~+85°C;Car Make:universal;
Payment Terms:L/C,T/T,Western Union,Paypal;Max,Operating Current:40A;
Operate/Release Time:10ms/10ms;Supply Ability:500000 Piece/Pieces per Month;
Port:Ningbo;Rated Current:40A;
Contact Form:1A, 1B, 1C, 1U, 2A;Voltage:12V;
Contact Material:AgSno2;Mechanical Llife:1000000 Cycles;
Electrical Life:100000 Cycles;Max.Operating Voltage:27VDC;
Place of Origin:Zhejiang China;Brand Name:Foocles;
Packaging Detail:25pcs/box 500pcs/ctn 32.5*32.5*29.5cm 16KG/17.5KG;Warranty:1;
Nominal Operating Power:1.6W, 1.8W;

automotive relay 5 pin 5 wires wharness

Product Description



Relay Features:



  • 40A switching capability

  • 1 form A,I form B,1 form C,

    1 form U,2 form A contact form

  • Various mounting terminations available

  • Sealed IP67 and dust cover types available

  • Outline dimensions: 28.0 X28.0X25.0

Relay Specification:


Contact Form

1A, 1B, 1C, 1U, 2A
Contact Material

AgSno2

Max. Operating Current

40A

Max. Operating Voltage

27VDC

Insulation Resistance

100MΩ

Rated Load(Resistive load)

1A:40A 13.5VDC  20A 27VDC    1C:NO/NC 40A/30A 13.5VDC  20A/15A  27VDC

Dielectric Strength(Coil and Contact)500VAC
Ambient Temperature

-40°C~+85°C

Operate/Release Time10ms/10ms
Mechanical Life

1 X106

Electrical Life(min)

1 X105

Terminal TypeTerminal





Coil Ratings:



+
Normal voltage(VDC)Pick-up voltage(VDC)Drop-out voltage(VDC)Coil resistance(Q±10%)Parallel resistance(Q±5%)Equivalent resistance(Q±10%)Power consumption(W)Max. allowable overdrive voltage(VDC)
20℃85℃
128.41.290- - 1.6 20.2 15.7
128.41.280 680 79.5 1.8 20.2 15.7
2416.82.4360 - - 1.6 40.5 31.5
2416.82.4320 2700 317.6 1.8 40.5 31.5





External Dimension:







Remark:(1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;



Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm,



tolerance should be ±0.4mm.
