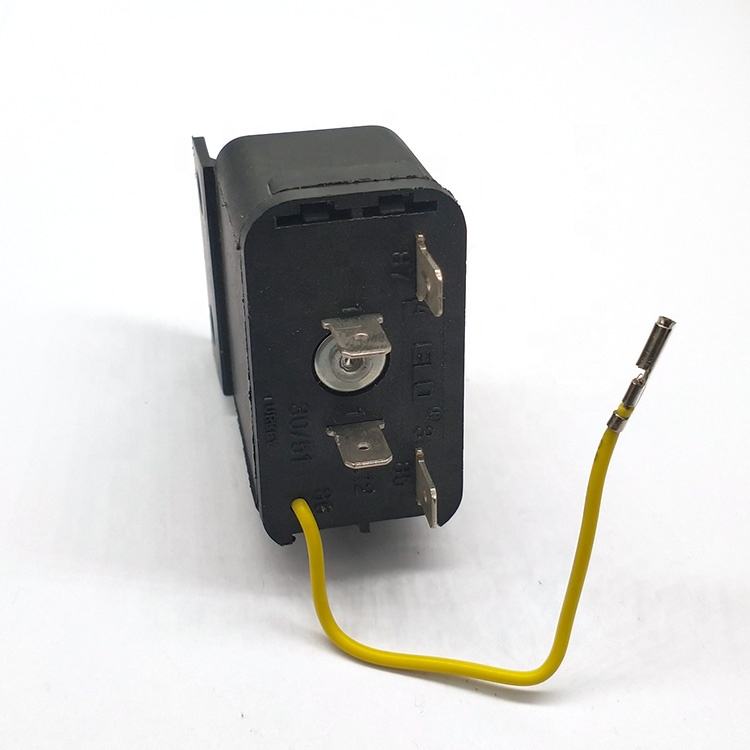

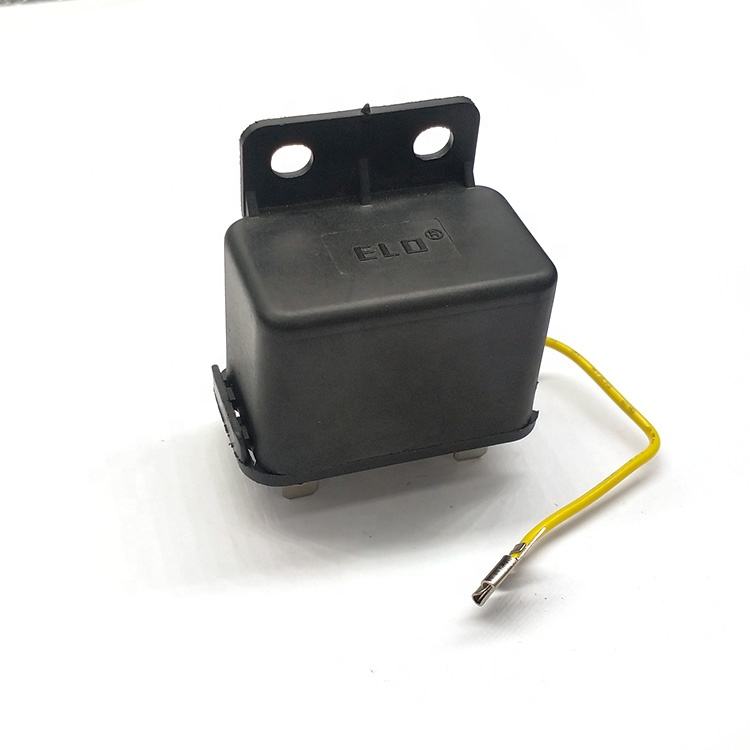

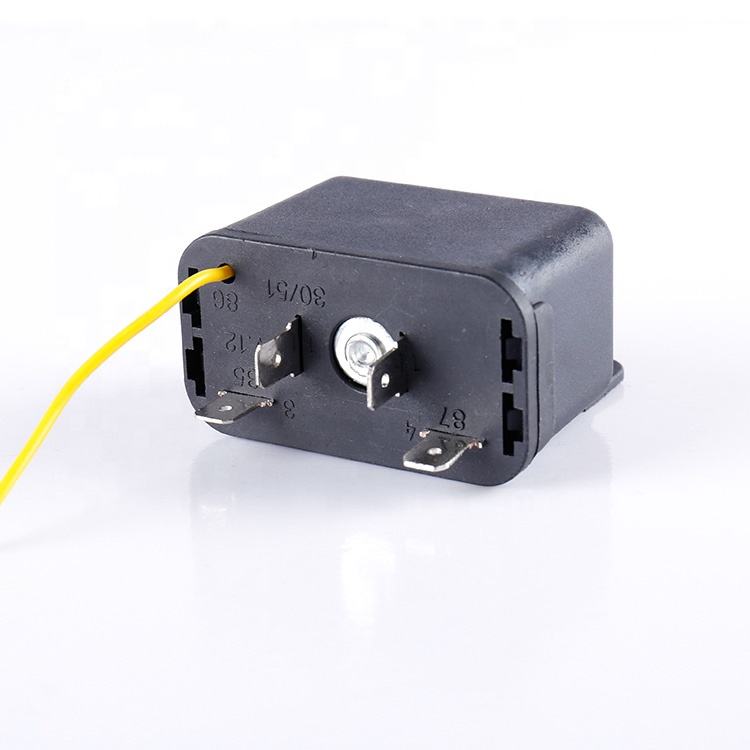

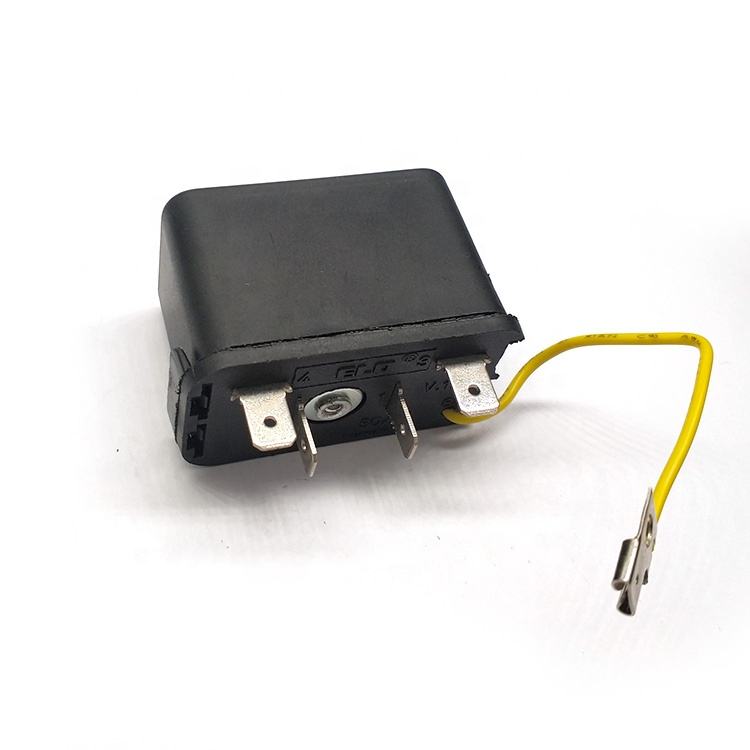

12v 24v 4 pin motorcycle configuration horn relay automobile relay

Supplier: Ningbo City Zhenhai Jingchen Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Mr zhenxing ye
Price: $0.60 / 100 - 999 pieces
$0.55 / 1000 - 9999 pieces
$0.50 / >=10000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

weight:	26g	Voltage:	24V/12V
Origin:	Zhejiang, China	Coil voltage:	12VDC,24VDC
payment terms:	L/C, Western Union, D/P, D/A, T/T, PayPal	Coil power(W):	1.6W 1.8W
Auto Parts:	Toyota	Contact Materials:	Silver Tin Oxide
Contact resistance:	50mΩ at 1A 6VDC	model:	R025
Pull-in voltage:	≤70%	Overall dimensions (lengthwidthheight) (mm):	26.026.024.0
Rated current:	30A/40A	car brand:	common
Contact list:	1A, 1B, 1C	Model:	Corolla (_E10_)
brand:	Jessica Carolina University	Release voltage:	≥10%
engine:	1.6 Si (AE101_), 2.0 D (CE100_), 1.8 4WD, 1.8, 1.8 i (AE102)	OE Number:	0332204101,0332204128,0332204134,0332014125,110355,1574754,1622657
Contact Rating:	40A 14V DC	Warranty:	6 months
Year:	1991-1999

Product Description

Insulation resistance		100MΩ 500VDC
Dielectric strength	Between open contacts	550 volts AC
	Between coil and contact	550 volts AC
Life	electric	1×10⁵
	Mechanical	1×10⁷
temperature range		-40~+70℃
Installation form		Fast
weight		26g

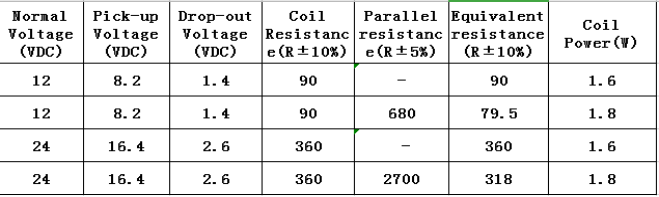

Coil parameters

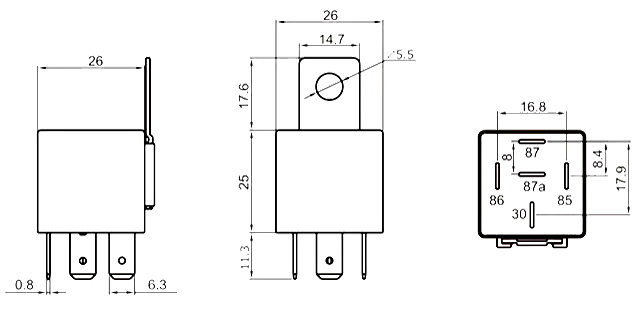

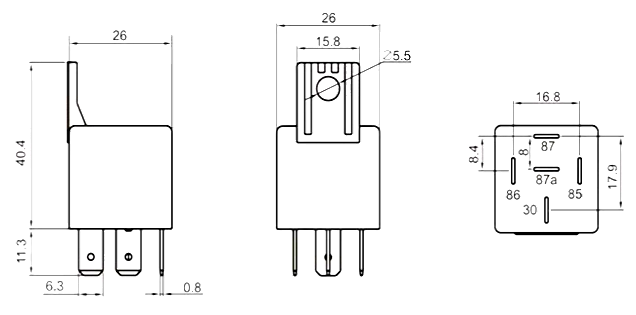

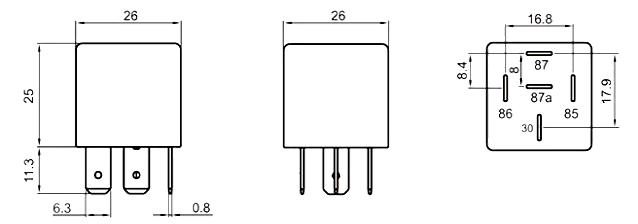

Dimensions

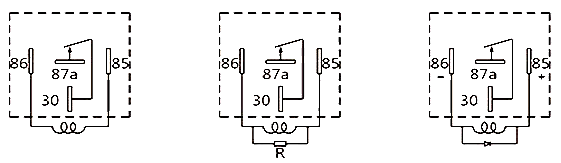

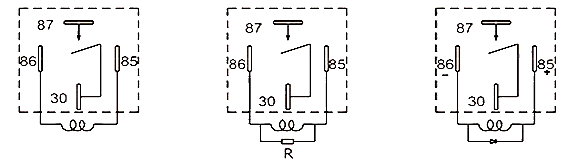

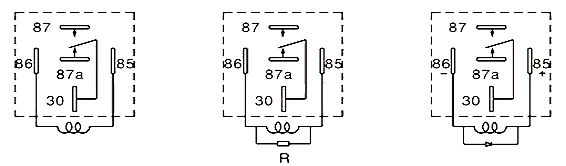

Circuit Schematic

Ordinary type Resistor type Diode type

1A

1B

1C
